Sunroof Window Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

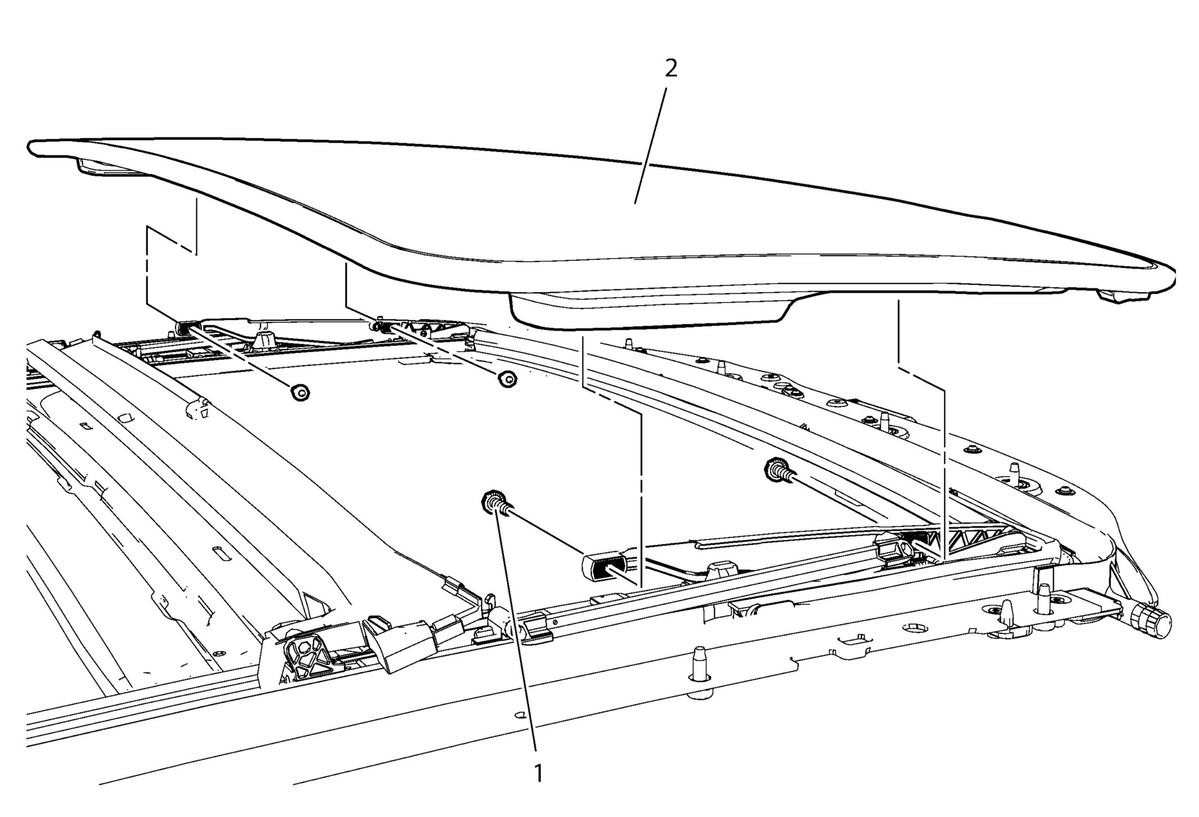

Fig 1: Identifying Sunroof Window & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the sunroof air deflector cover. Refer to Sunroof Air Deflector Cover Replacement .
1	Sunroof Window Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (36 lb in)
2	Sunroof Window Procedure Turn the ignition on. Lift up the sunroof window to the vent position. Slide the sunshade to the full rearward position. After the installation adjust the sunroof window. Refer to Sunroof Window Height and Opening Fit Adjustment .

Callout

Component Name

Preliminary Procedures
Remove the sunroof air deflector cover. Refer to Sunroof Air Deflector Cover Replacement .

Sunroof Window Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
4 N.m (36 lb in)

Sunroof Window

Procedure

Turn the ignition on.
Lift up the sunroof window to the vent position.
Slide the sunshade to the full rearward position.
After the installation adjust the sunroof window. Refer to Sunroof Window Height and Opening Fit Adjustment .
