Installation Procedure

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

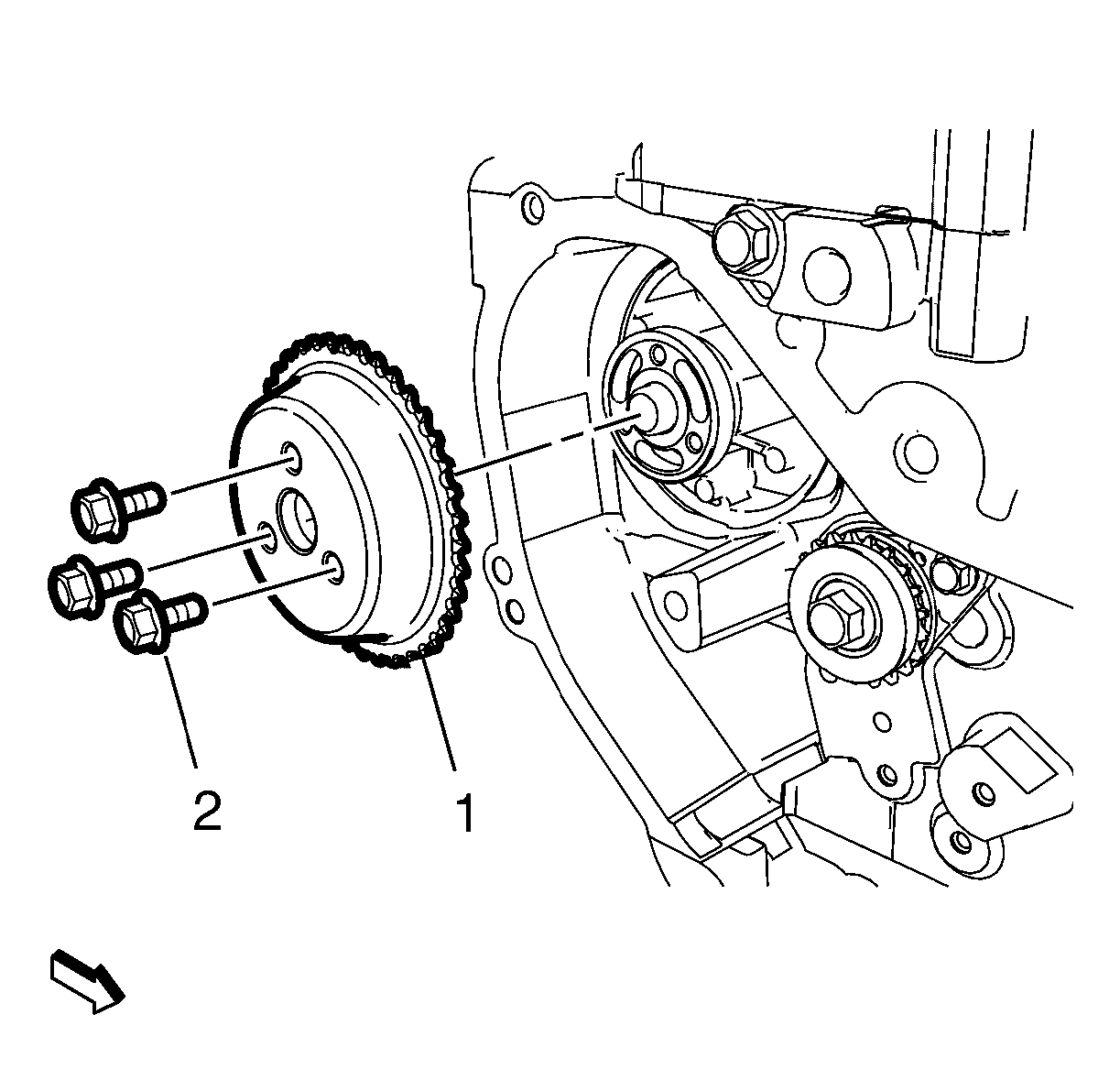

Fig 1: Water Pump Sprocket & Bolts

Courtesy of GENERAL MOTORS COMPANY

Install the water pump sprocket (1) and install the 3 water pump sprocket bolts (2) handtighten.

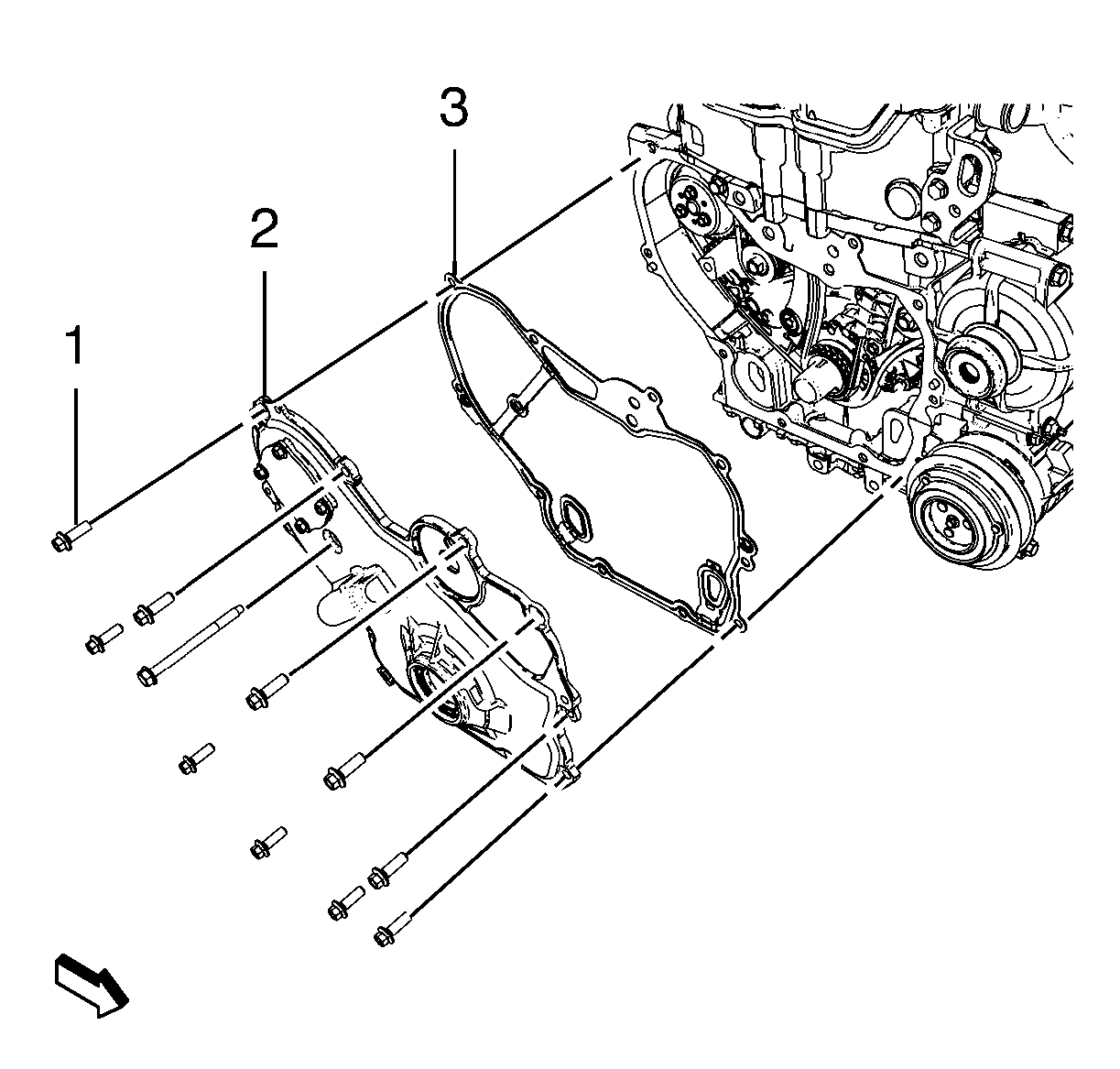

Fig 2: Engine Front Cover, Gasket & Bolts

Courtesy of GENERAL MOTORS COMPANY

Install the engine front cover (2) and the engine front cover bolts (1) handtighten. Use the old gasket (3).

Fig 3: Water Pump Sprocket Holding Tool

Courtesy of GENERAL MOTORS COMPANY

Install the EN-44602 holding tool (1) to the water pump sprocket.

Fig 4: Water Pump Sprocket & Bolts

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the water pump sprocket bolts (2) and tighten to 8 N.m (71 lb in).

Fig 5: Water Pump Sprocket Holding Tool

Courtesy of GENERAL MOTORS COMPANY

Remove the EN-44602 holding tool (1) from the water pump sprocket.

Fig 6: Engine Front Cover, Gasket & Bolts

Courtesy of GENERAL MOTORS COMPANY

Remove the engine front cover bolts (1) and the engine front cover (2) with the gasket (3).
Install the water pump and balance shaft chain. Refer to Water Pump and Balance Shaft Chain Replacement .
