Radiator Upper Bracket Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

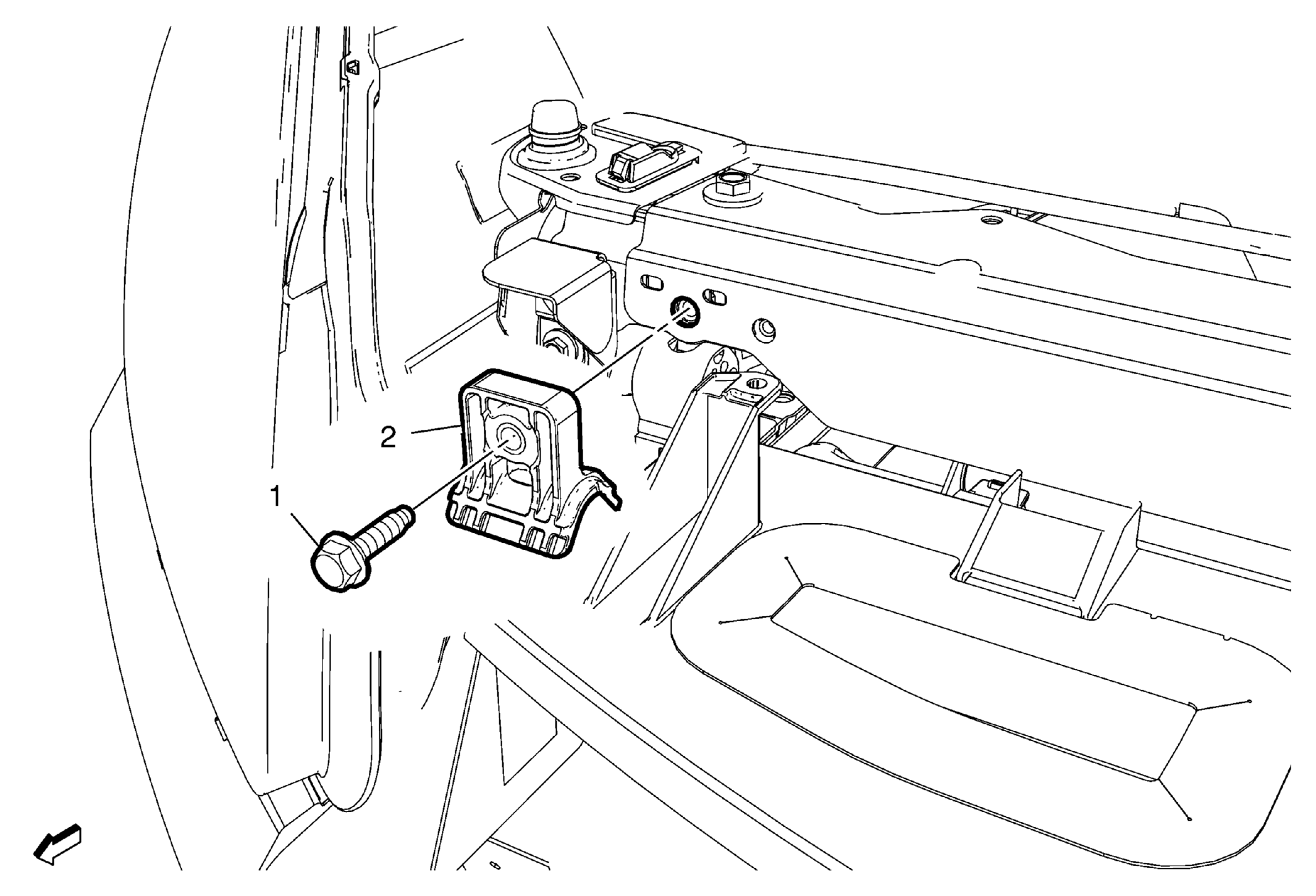

Fig 1: Radiator Upper Bracket & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Radiator Support Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Radiator Support Bracket Procedure Pull the radiator forward until the bracket is reachable.
