Installation Procedure

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

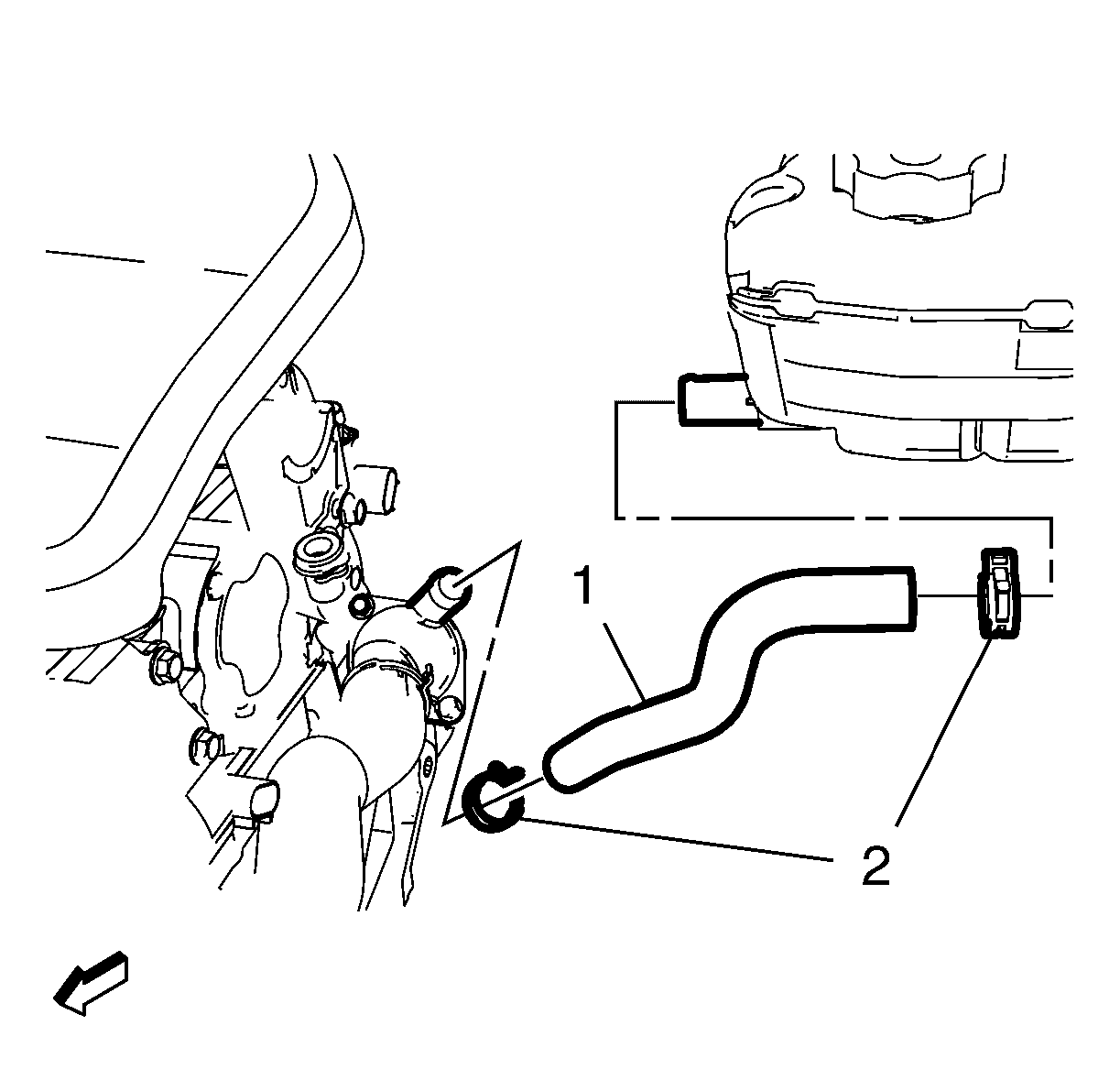

    Fig 1: Radiator Surge Tank Outlet Hose & Clamps
    GM2594937Courtesy of GENERAL MOTORS COMPANY
  1. Install the radiator surge tank outlet hose (1) and the 2 clamps (2).
  2. Fill the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
