Front Compartment Splash Shield Replacement
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
Front Compartment Splash Shield Replacement

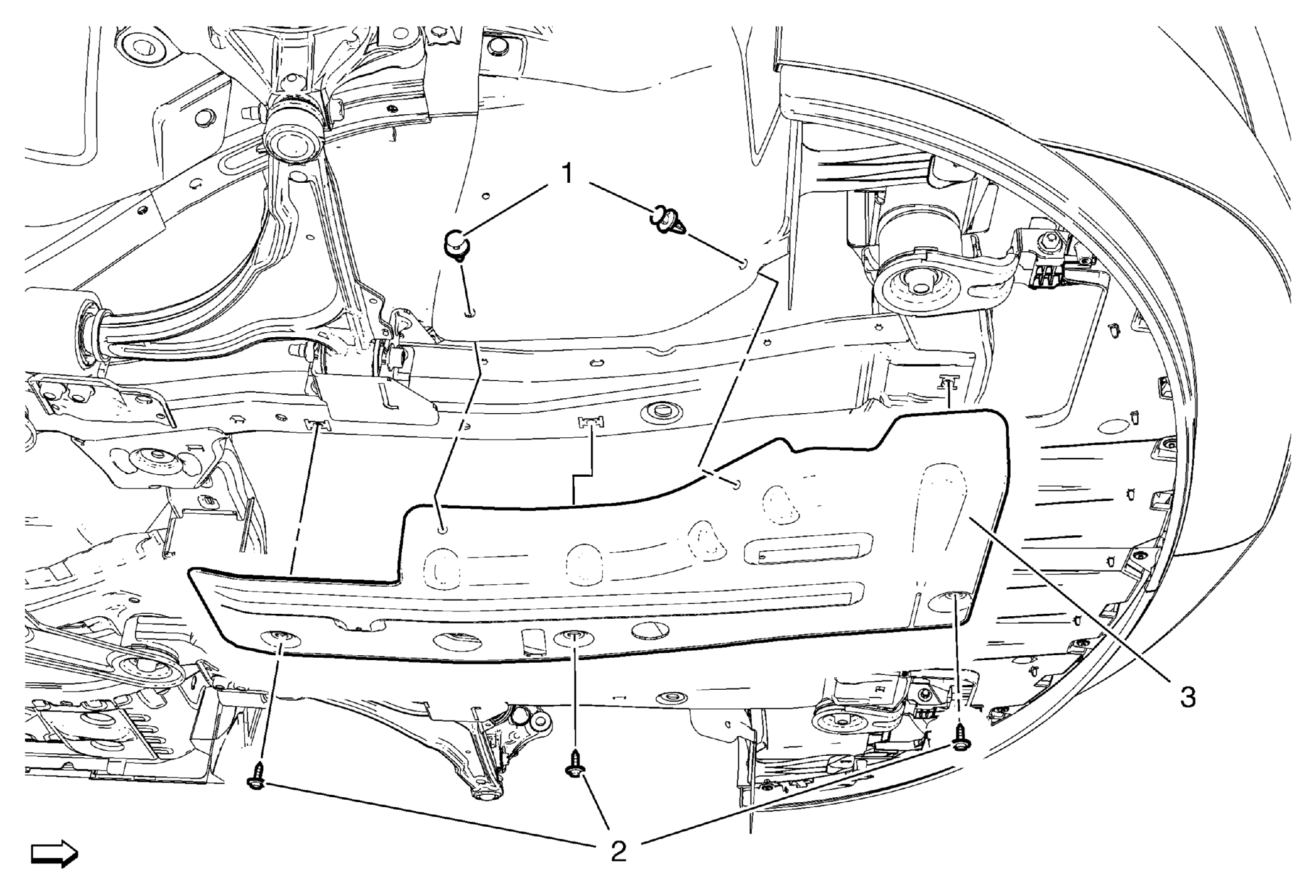

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Standard) . |
|
| 1 | Front Compartment Splash Shield Retainer (Qty: 2) |
| 2 | Front Compartment Splash Shield Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 3 | Front Compartment Splash Shield |
