Heater and Air Conditioning Remote Control Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

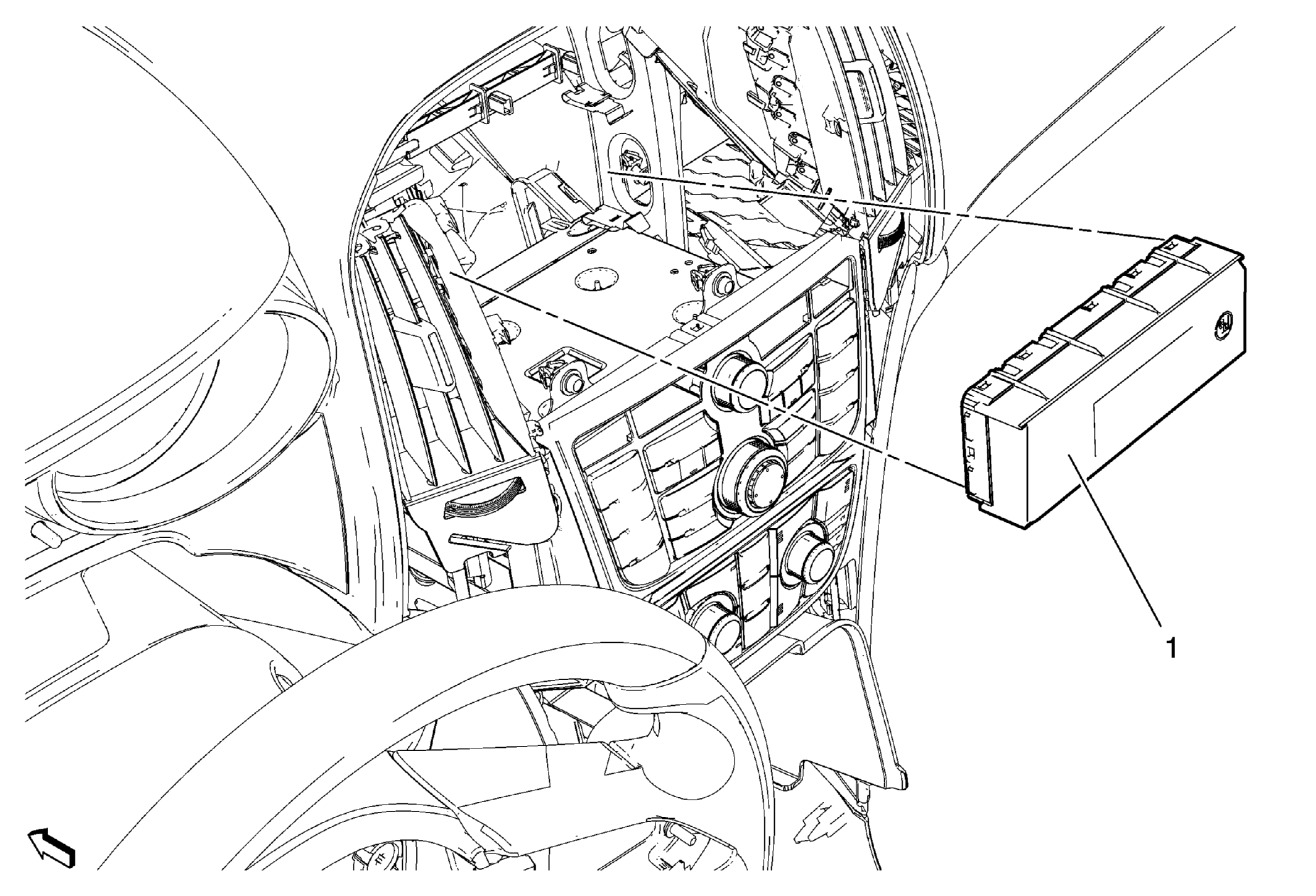

Fig 1: Heater & Air Conditioning Remote Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Prepare heater and air conditioning remote control for replacement, refer to Control Module References . Remove the driver information display. Refer to Driver Information Display Replacement (UAG) , Driver Information Display Replacement (UDY) .
1	Heater and Air Conditioning Remote Control Disconnect the electrical connectors. After repairs, refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedures

Prepare heater and air conditioning remote control for replacement, refer to Control Module References .
Remove the driver information display. Refer to Driver Information Display Replacement (UAG) , Driver Information Display Replacement (UDY) .

Heater and Air Conditioning Remote Control

Disconnect the electrical connectors.
After repairs, refer to Control Module References for programming and set up procedures.
