Heater and Air Conditioning Control Replacement
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
Heater and Air Conditioning Control Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove radio control assembly. Refer to Radio Control Assembly Replacement . |
|

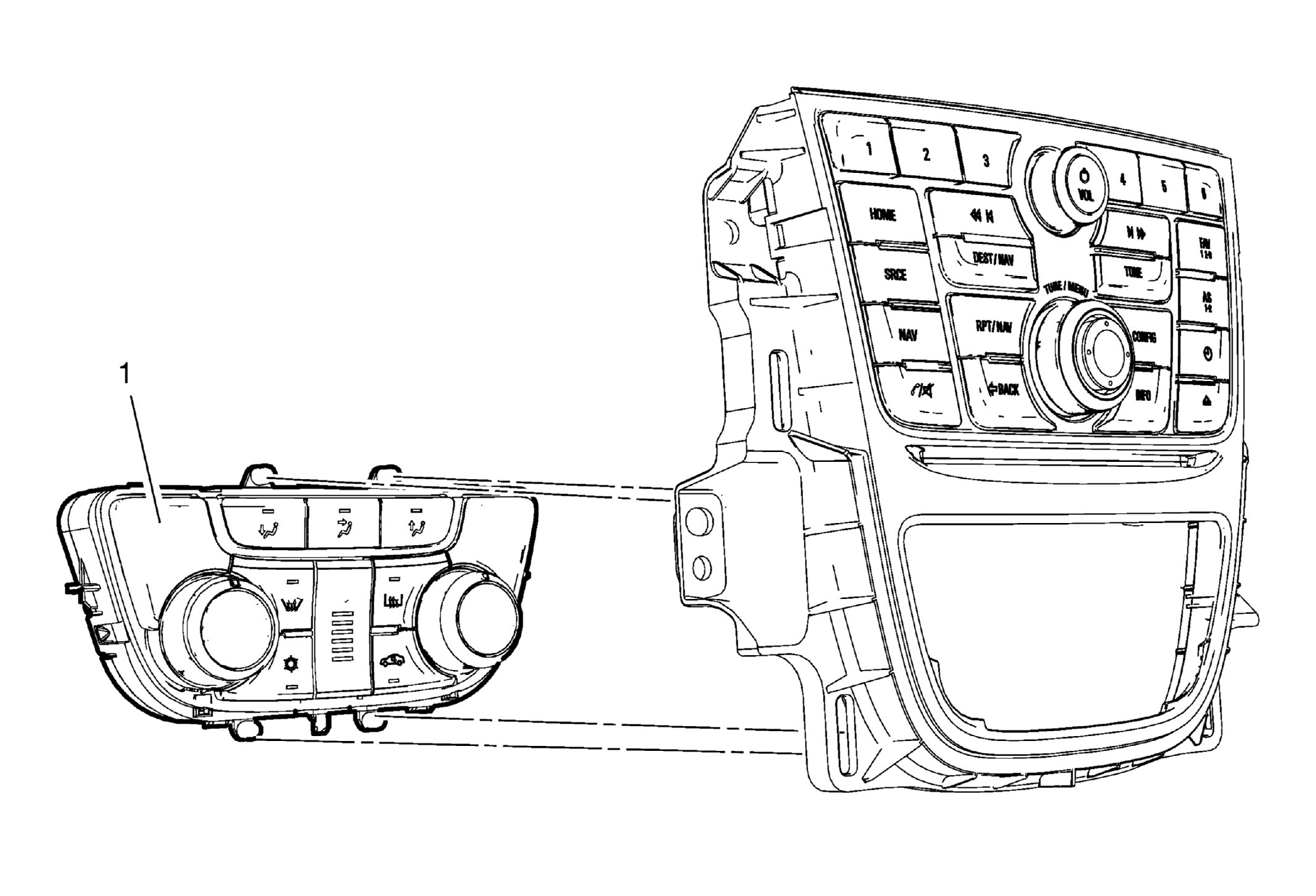

| 1 | Heater and Air Conditioning Control Procedure Release the integral retainers and remove from the rear of the radio control assembly. |
