Knee Bolster Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

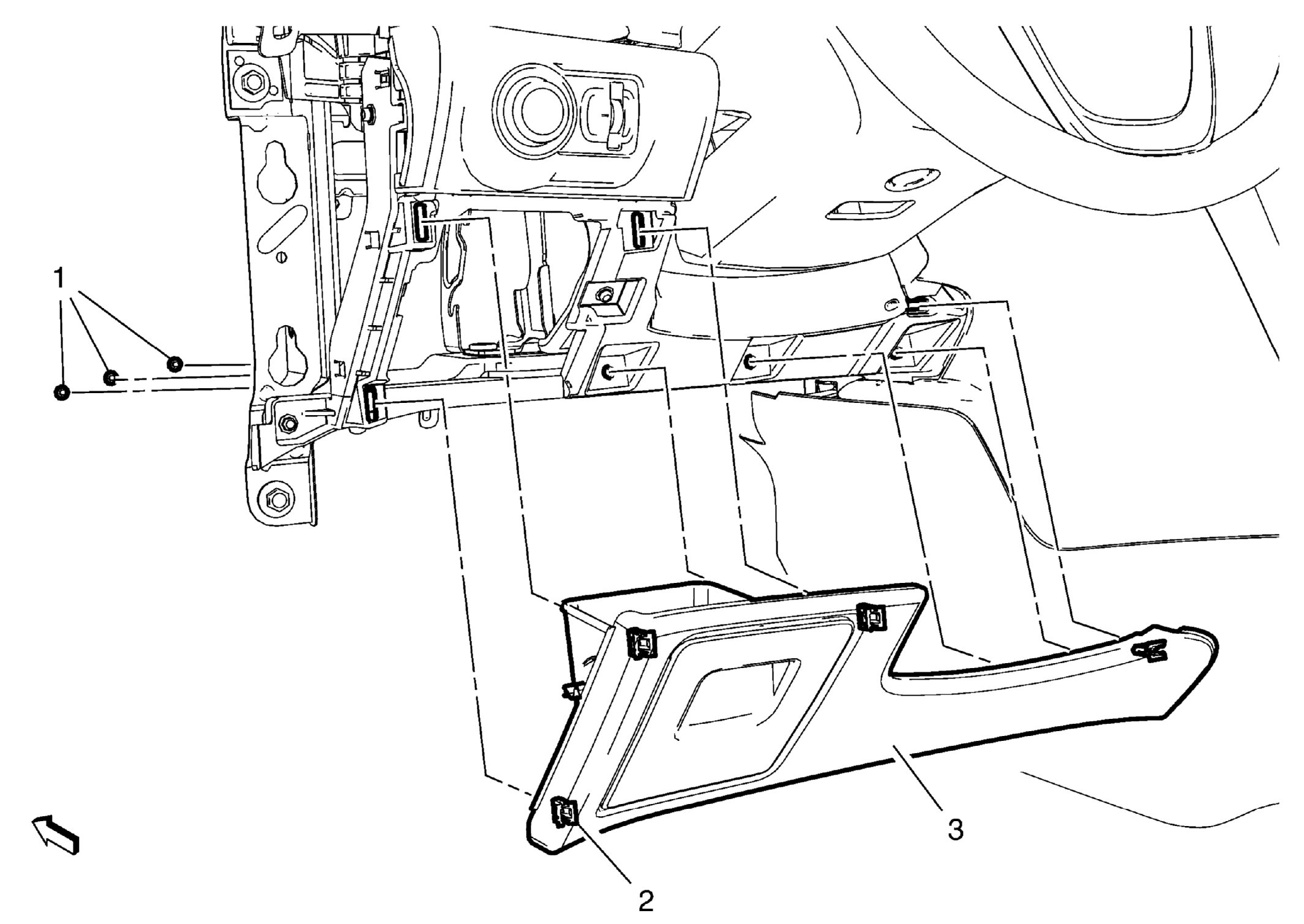

Fig 1: Knee Bolster & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the inflatable restraint instrument panel lower module. Refer to Inflatable Restraint Instrument Panel Lower Module Replacement - Driver Side . Remove the instrument panel outer trim cover - left side. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side .
1	Knee Bolster Fastener (Qty: 3)
2	Knee Bolster Retainer (Qty: 4)
3	Knee Bolster
