Installation Procedure

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

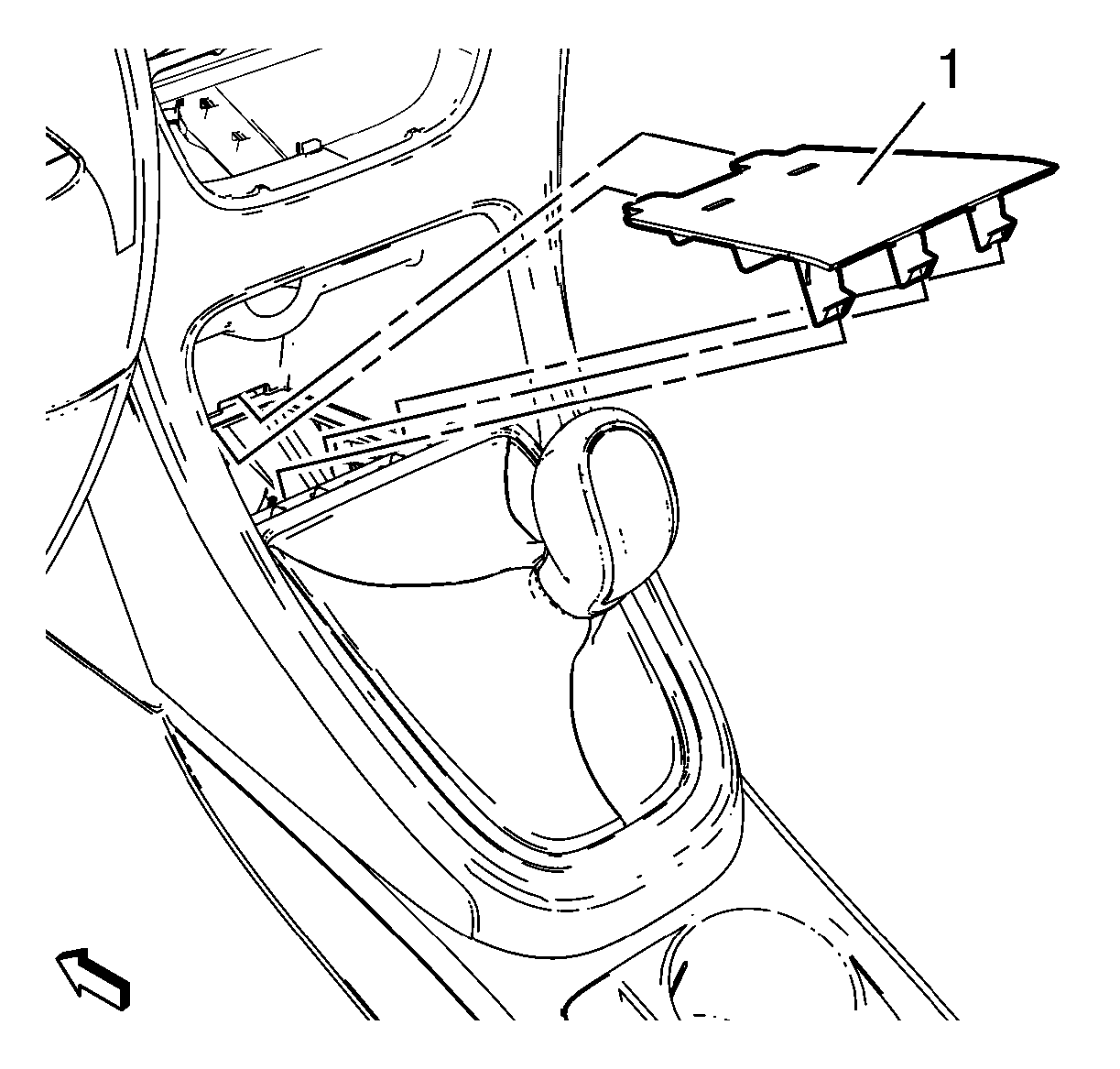

    Fig 1: Instrument Panel Lower Center Compartment Liner
    GM2192600Courtesy of GENERAL MOTORS COMPANY
  1. Install the instrument panel lower center compartment liner (1).

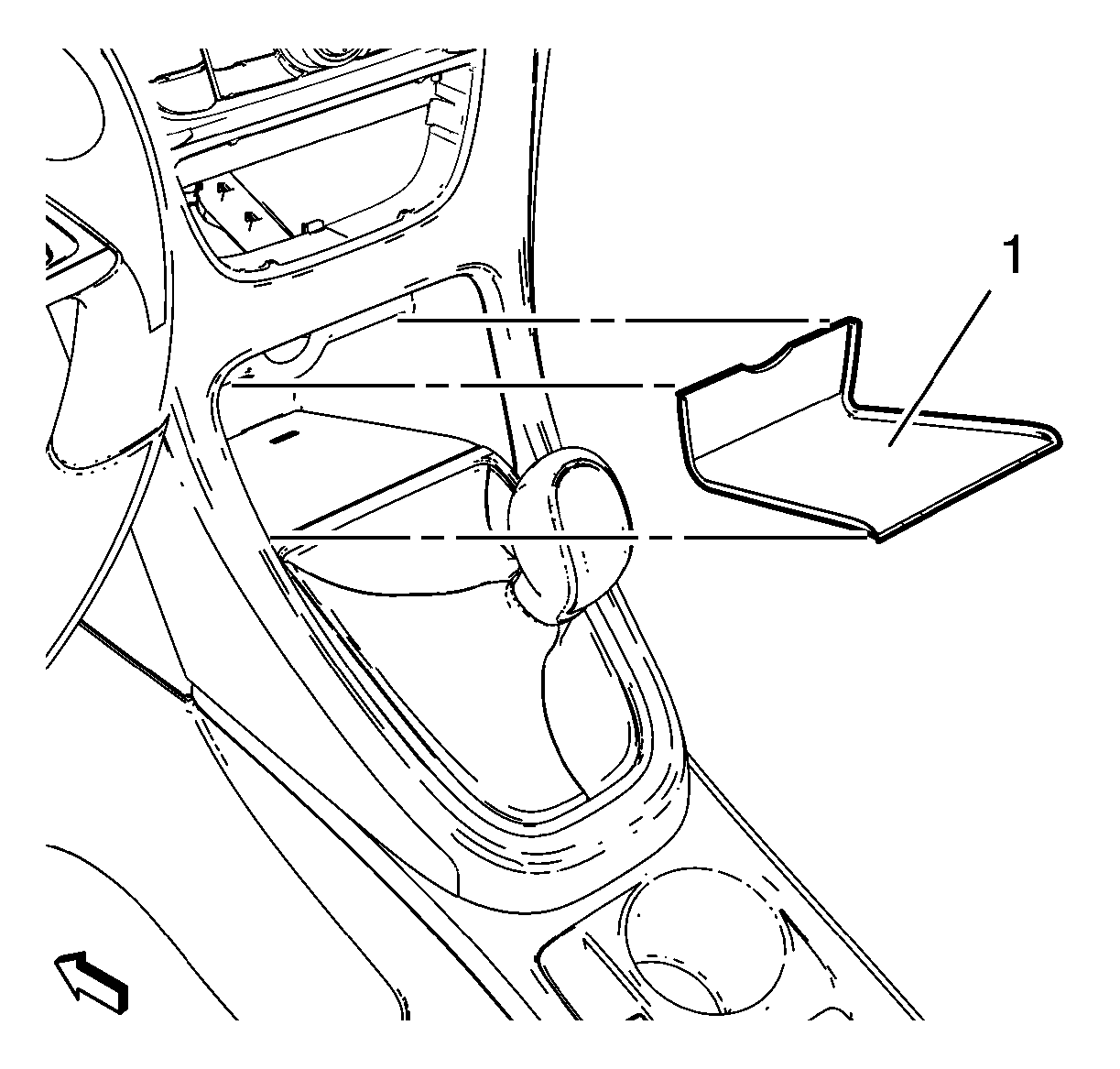

    2. Fig 2: Instrument Panel Lower Center Compartment Liner Mat
    GM2192596Courtesy of GENERAL MOTORS COMPANY
  2. Install the instrument panel lower center compartment liner mat (1).
