Removal Procedure

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission control lever knob assembly. Refer to Transmission Control Lever Knob Replacement .
    2. Fig 1: Instrument Panel Center Trim Panel Screws
    GM2192601Courtesy of GENERAL MOTORS COMPANY
  2. Remove the instrument panel center trim panel screws (1).

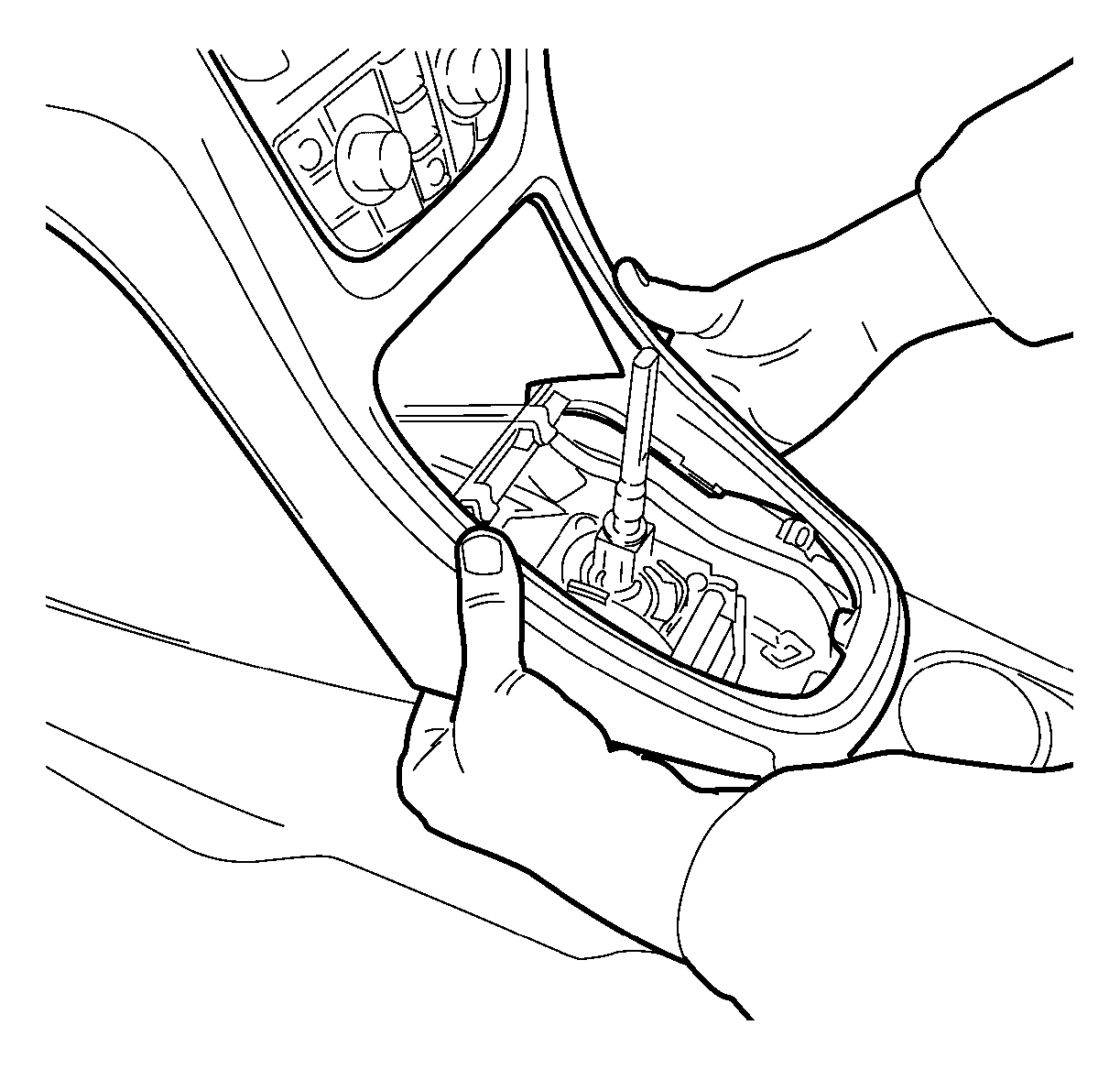

    3. Fig 2: Unclipping Instrument Panel Center Trim Panel
    GM2192602Courtesy of GENERAL MOTORS COMPANY
  3. Unclip the instrument panel center trim panel on both sides.
    4. Fig 3: Instrument Panel Center Trim Panel Removal Procedure
    GM2192603Courtesy of GENERAL MOTORS COMPANY
  4. Unclip the instrument panel center trim panel in the shown direction.

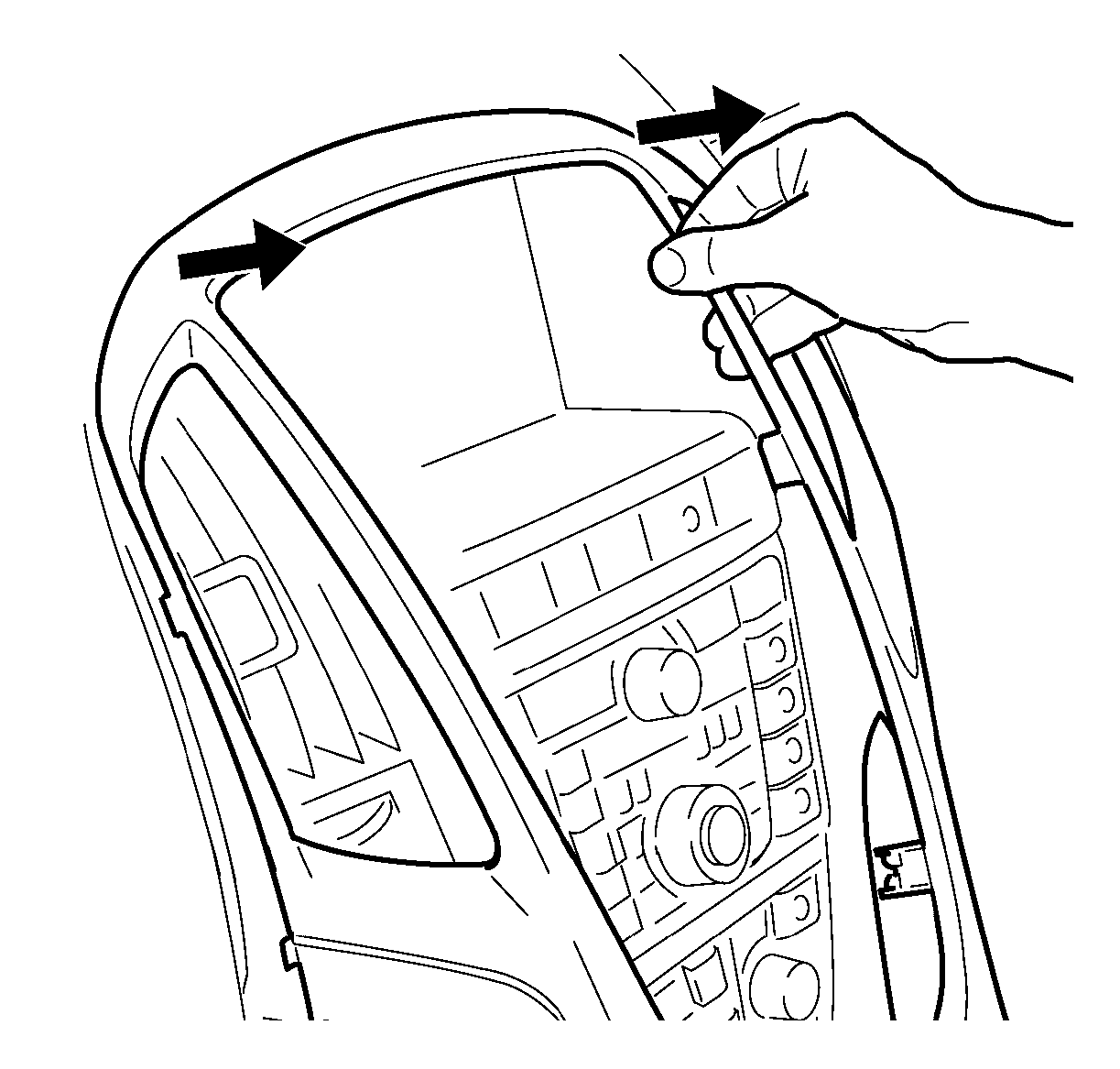

    5. Fig 4: Instrument Panel Center Trim Panel Upper Clip Points
    GM2192604Courtesy of GENERAL MOTORS COMPANY
  5. Unclip the instrument panel center trim panel at both upper clip points in the shown direction (arrows).
