Windshield Wiper Arm Adjustment

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

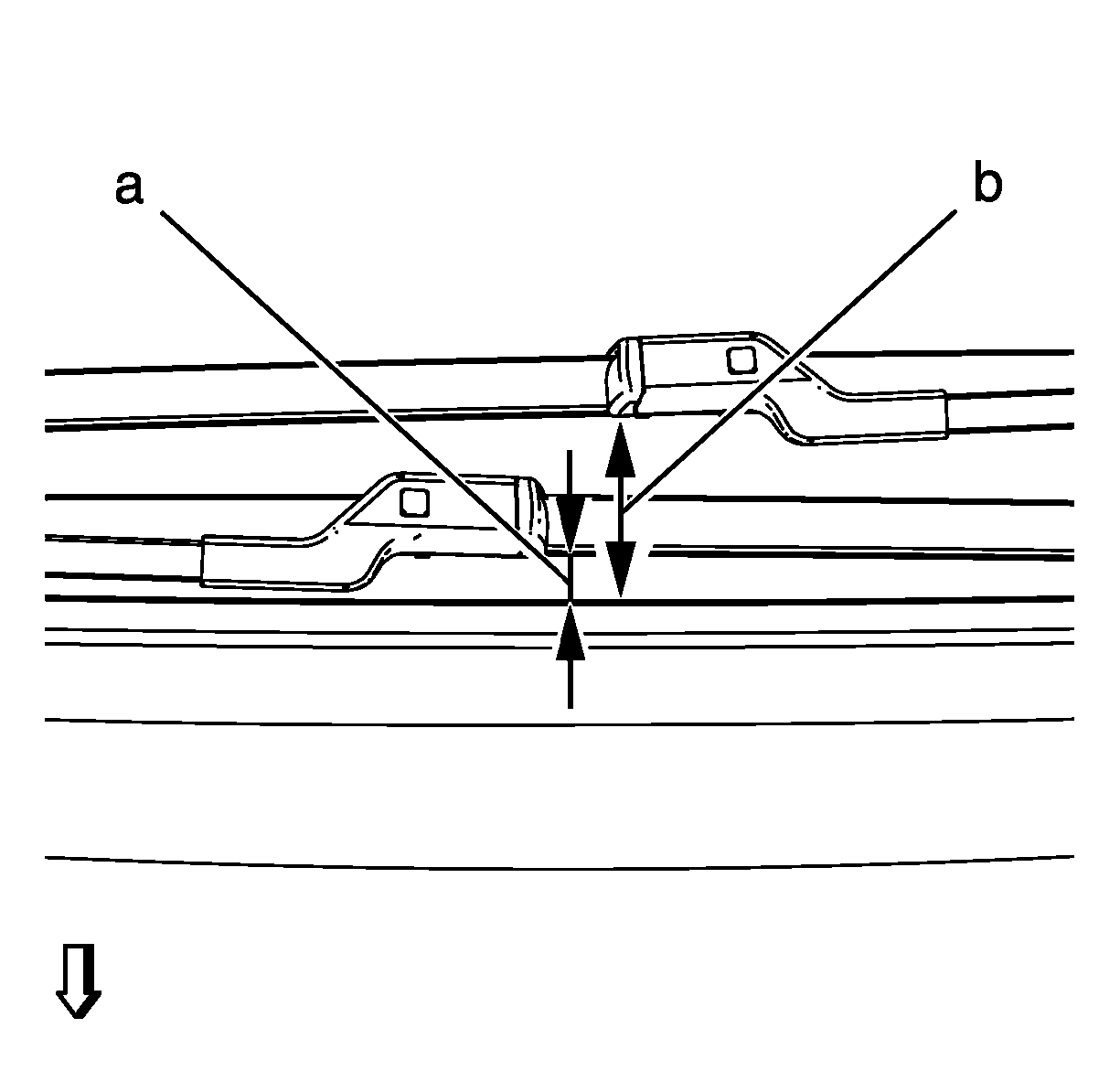

Measuring point for windshield wiper arms:

Fig 1: Windshield Wiper Arm Adjustment

Courtesy of GENERAL MOTORS COMPANY

Upper edge of water deflector (rubber lip) to wiper arm attachment point

NOTE:

Position the wiper arm to the basic setting.

Measurement (a): Passenger side approximately 2.2 cm (0.87 in).
Measurement (b): Driver side approximately 6.8 cm (2.7 in).
