Windshield Washer Nozzle Adjustment
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
BO-49380 Adjusting Tool
For equivalent regional tools, refer to Special Tools .
NOTE:
All adjustments must be completed with the hood assembly in the FULL closed position.

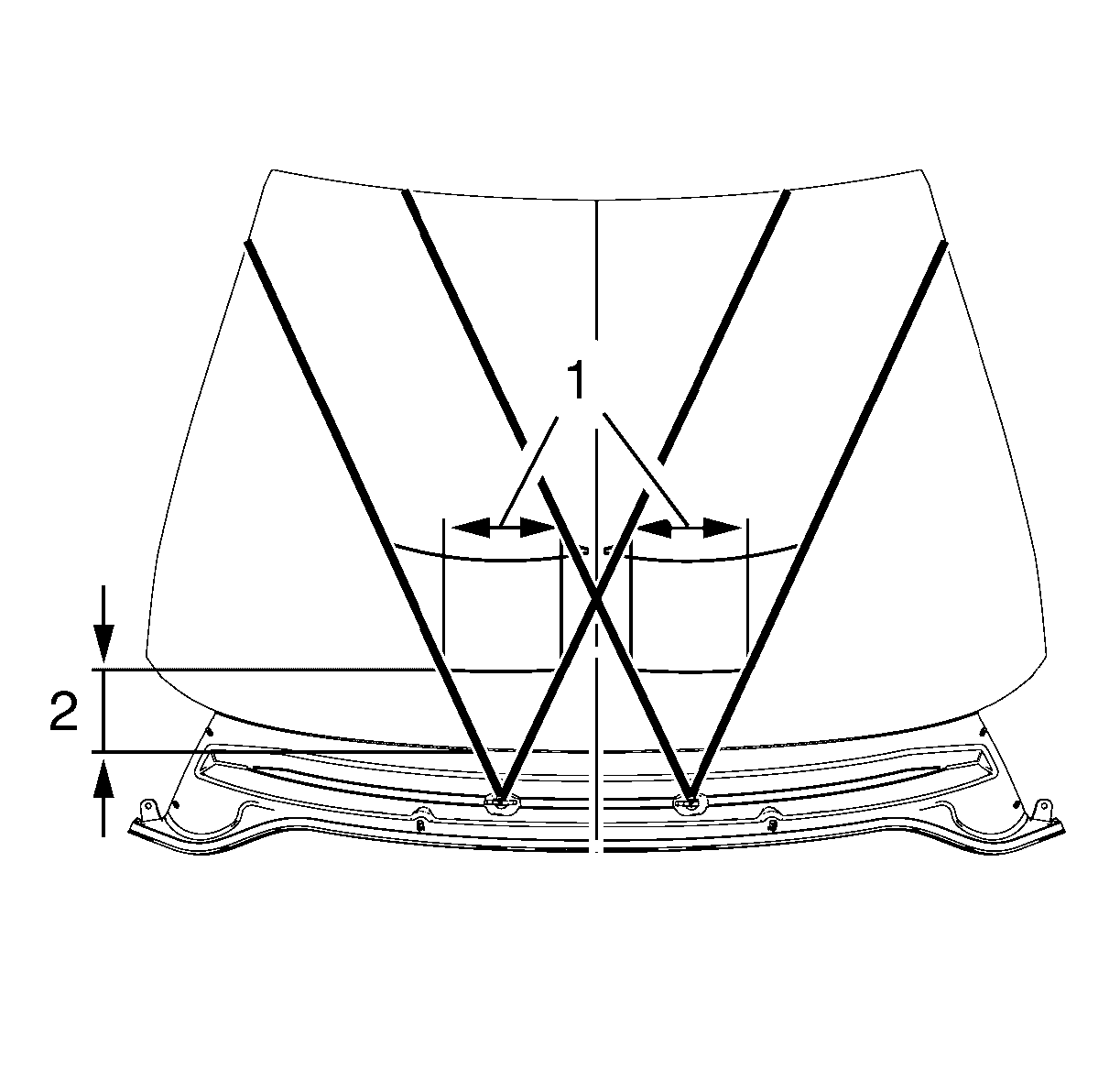

- 1 = 180 mm (7.086 in)
- 2 = 125 mm (4.921 in)
Adjust the windshield washer nozzle using the BO-49380 adjuster.
