Subsystem References (2 of 4) Wiring Schematics

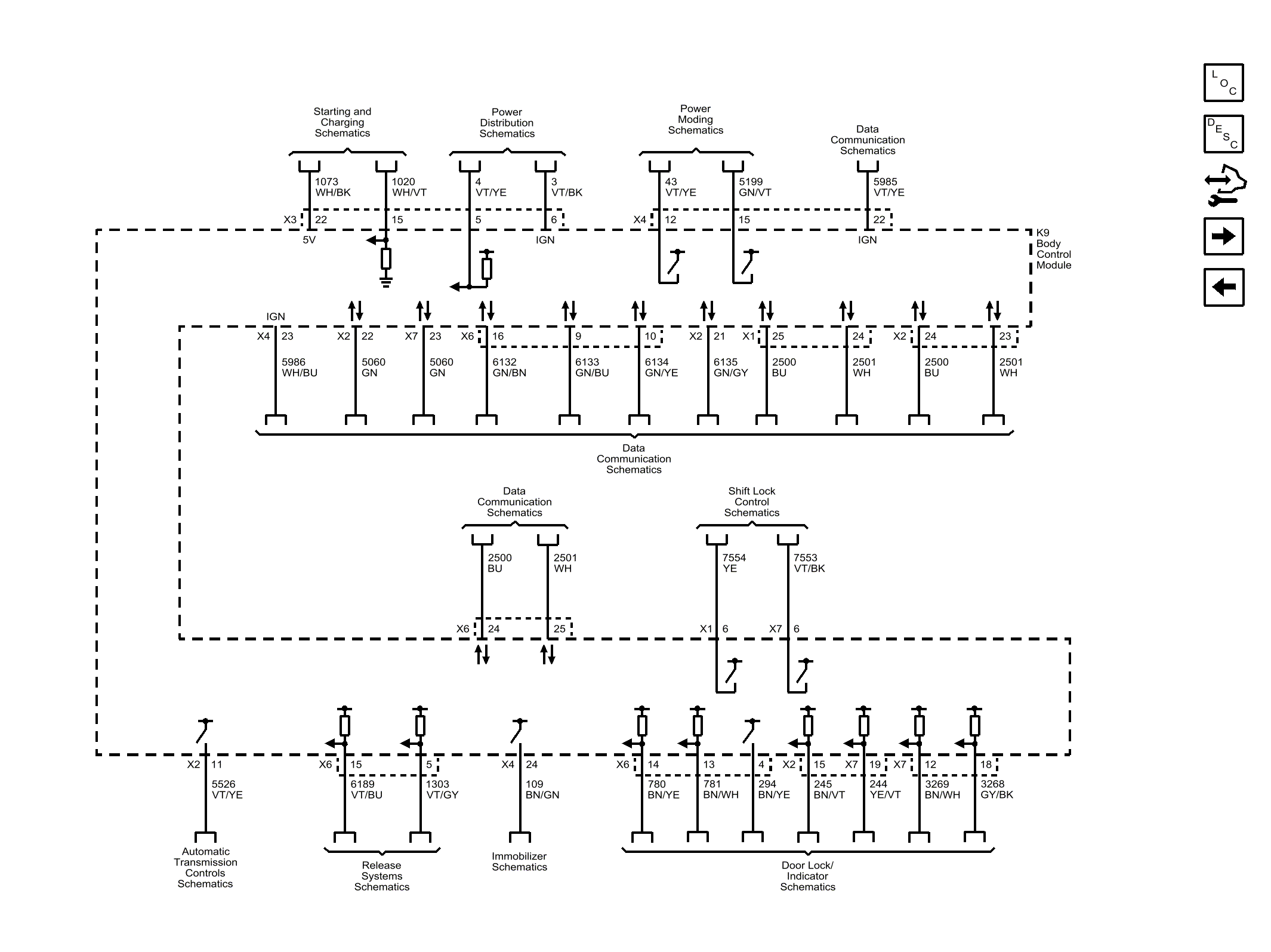

Fig 1: Subsystem References (2 of 4) Wiring Schematic

GM3336869

Courtesy of GENERAL MOTORS COMPANY
