Power, Ground and Subsystem References (1 of 4) Wiring Schematics
Power, Ground and Subsystem References (1 of 4) Wiring Schematics

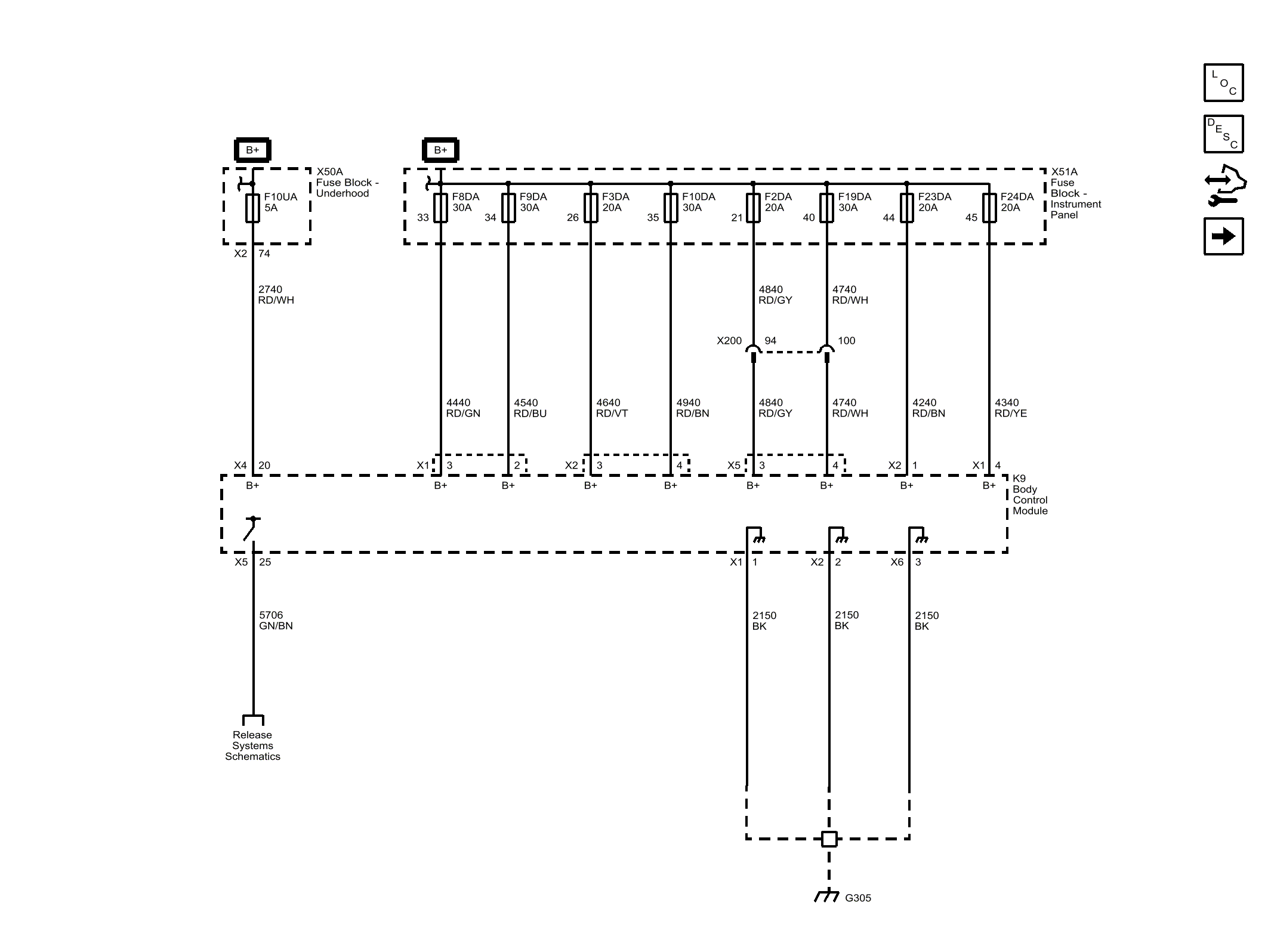

Fig 1: Power, Ground and Subsystem References (1 of 4) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
