Remove Procedure

  1. Remove the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
    2. Fig 1: Battery Fuse Box Cover
    GM2577153Courtesy of GENERAL MOTORS COMPANY
  2. Unlock the retaining tab (1) on the battery fuse box cover.
  3. Use a suitable screwdriver (2) to unlock the clip (4) through the window (3).
    4. Fig 2: View Of Fuse Box Cover, Battery Cable And Nut
    GM2027594Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Pull the battery fuse box housing. DO NOT pull the flap.

  4. Open the battery fuse box cover (1)
  5. Remove the battery positive to starter cable nut (2).
  6. Remove the battery positive to starter cable (3) from the battery.
    7. Fig 3: Battery Negative Cable And Battery Ground Cable Nut
    GM2027762Courtesy of GENERAL MOTORS COMPANY
  7. Remove the negative cable nut (1).
  8. Remove the negative cable (2).
  9. Unclip the starter and generator positive cable from the engine wiring harness and from the oil level indicator tube.
  10. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

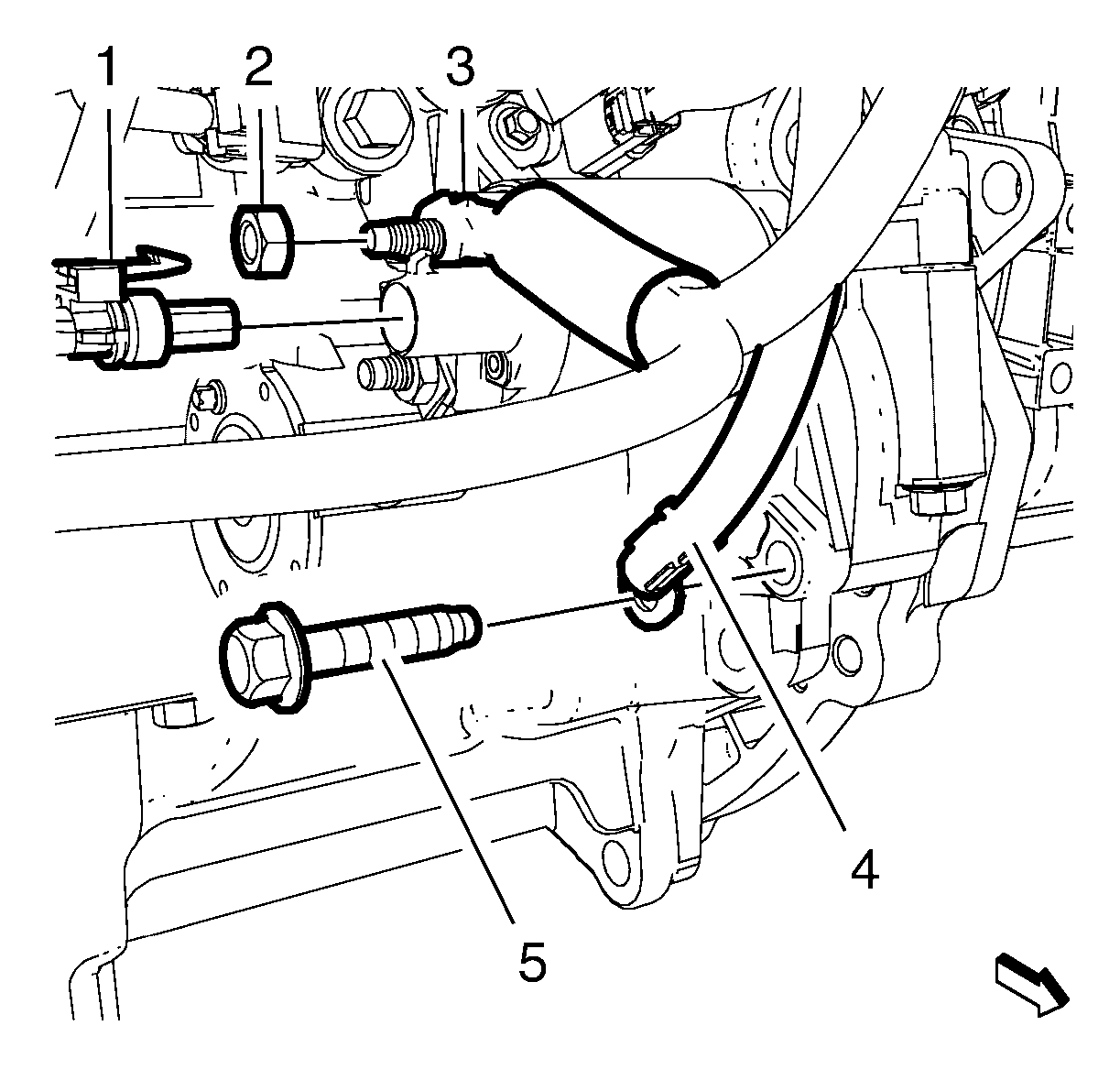

    11. Fig 4: Starter, Generator Cables & Nuts
    GM2512755Courtesy of GENERAL MOTORS COMPANY
  11. Remove the starter and generator positive cable nut (2) and the starter and generator positive cable (3).
  12. Remove the starter bolt (5) and the starter ground cable (4).
    13. Fig 5: Generator Cap & Positive Cable Components
    GM2512764Courtesy of GENERAL MOTORS COMPANY
  13. Fold the generator cap (2) aside.
  14. Remove the starter and generator positive cable retaining nut (3) and the starter and generator positive cable (4).
  15. Remove the starter and generator positive cable from the vehicle.
