Instrument Cluster Replacement

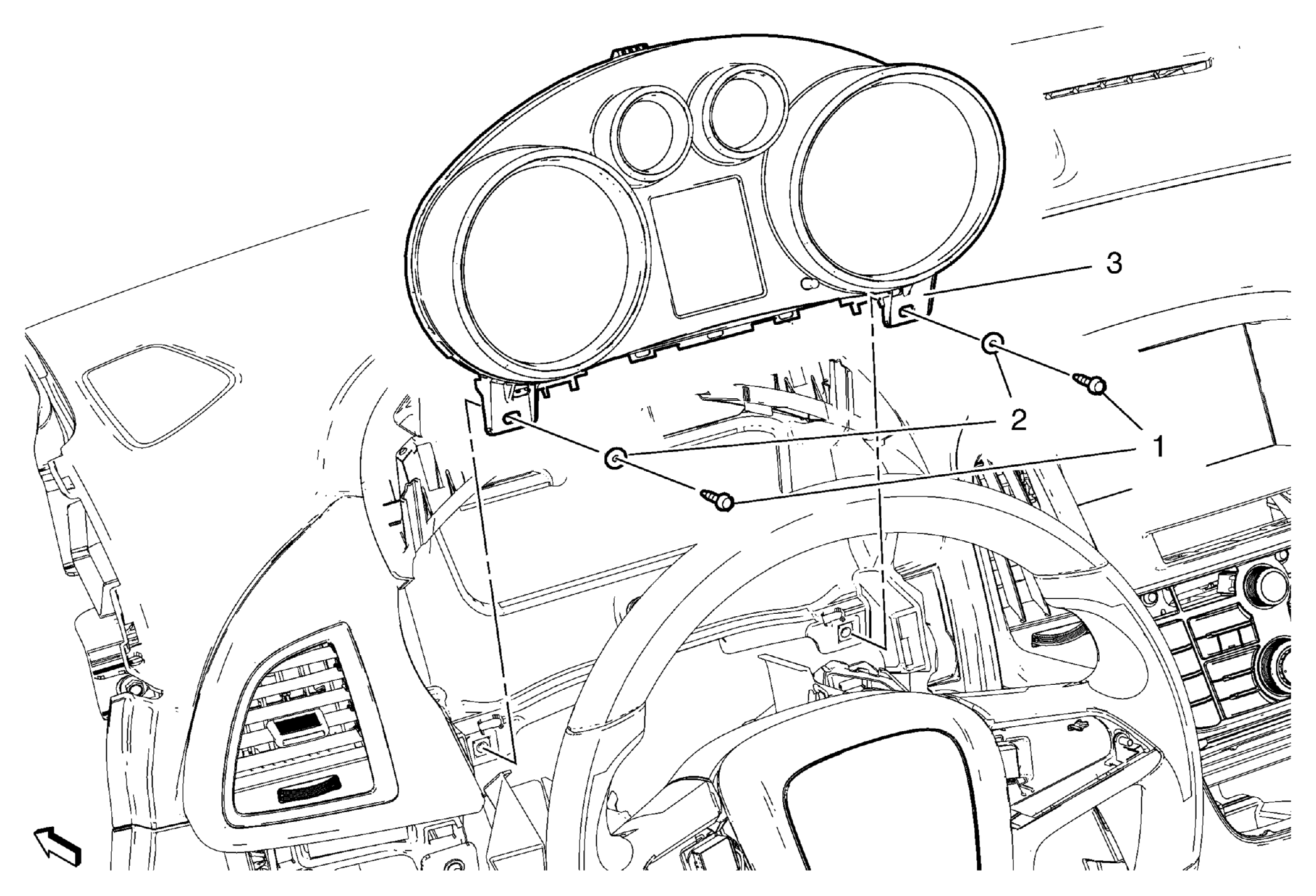

Fig 1: Instrument Cluster
GM2189592Courtesy of GENERAL MOTORS COMPANY
Instrument Cluster Replacement

Callout Component Name

Preliminary Procedures

  1. Prepare instrument cluster for replacement, refer to Control Module References .
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  3. Remove headlamp switch molding. Refer to Headlamp Switch Molding Replacement .
  4. Remove instrument panel steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
  5. Remove instrument panel instrument cluster hood. Refer to Instrument Panel Instrument Cluster Hood Replacement .
1 Instrument Cluster Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 (22 lb in)
2 Instrument Cluster Washer (Qty: 2)
3 Instrument Cluster

Procedure

  1. Disconnect electrical components.
  2. After repairs, refer to Control Module References for programming and set up information.
