Rear Body Fuse Block Replacement

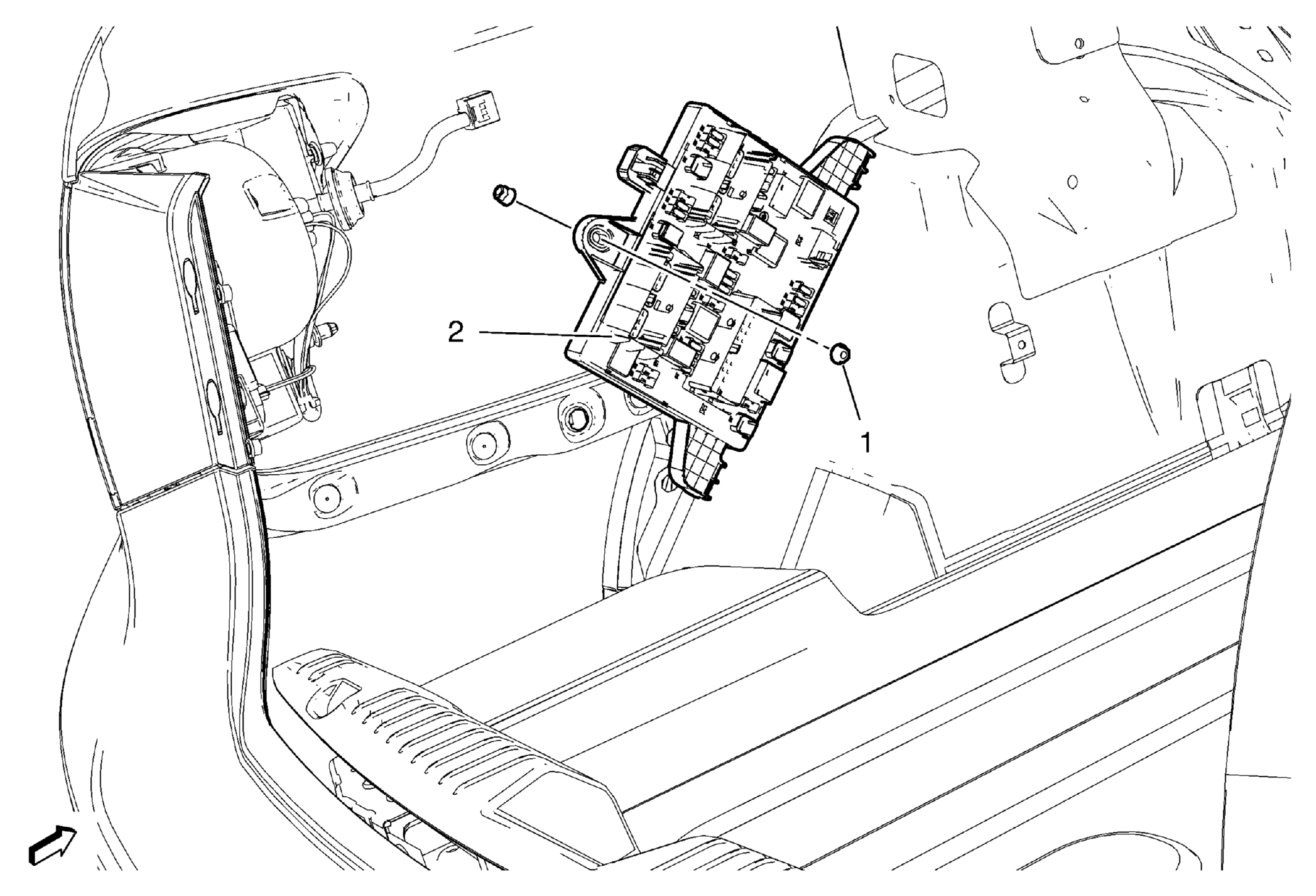

Fig 1: Rear Body Fuse Block & nut

GM2190247

Courtesy of GENERAL MOTORS COMPANY

Rear Body Fuse Block Replacement

Callout

Component Name

Preliminary Procedures

Remove rear compartment side trim - left side. Refer to Rear Compartment Side Trim Replacement - Left Side .
Disconnect electrical connectors.

1

Rear Body Fuse Block Nut

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Rear Body Fuse Block

Procedure

Disconnect electrical components.
After repairs, refer to Control Module References for programming and set up information.
