Steering Wheel Secondary/Configurable Controls Wiring Schematics

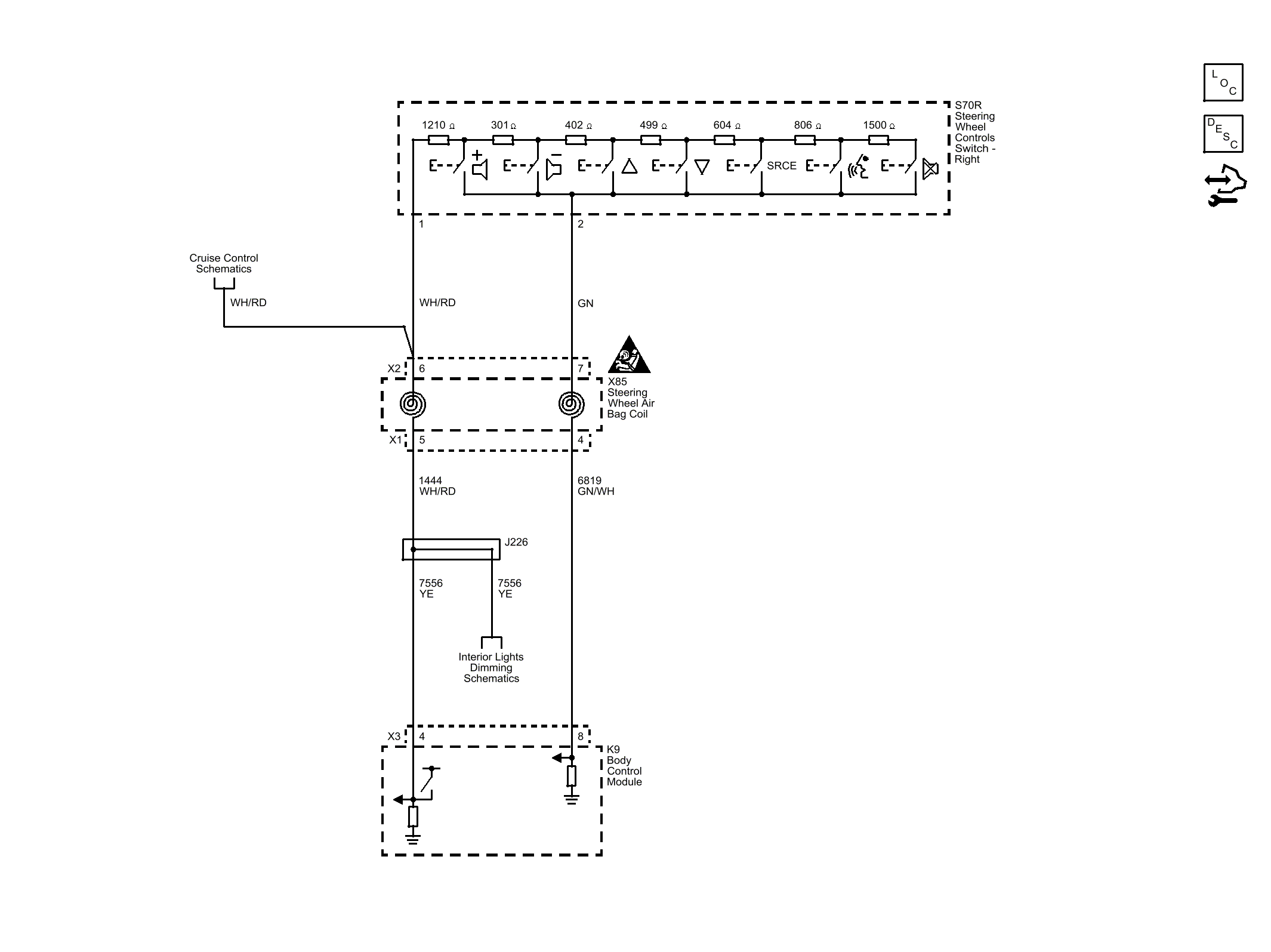

Fig 1: Steering Wheel Secondary/Configurable Controls Wiring Schematic

GM3336721

Courtesy of GENERAL MOTORS COMPANY
