Side Blind Zone Alert (UFT) Wiring Schematics

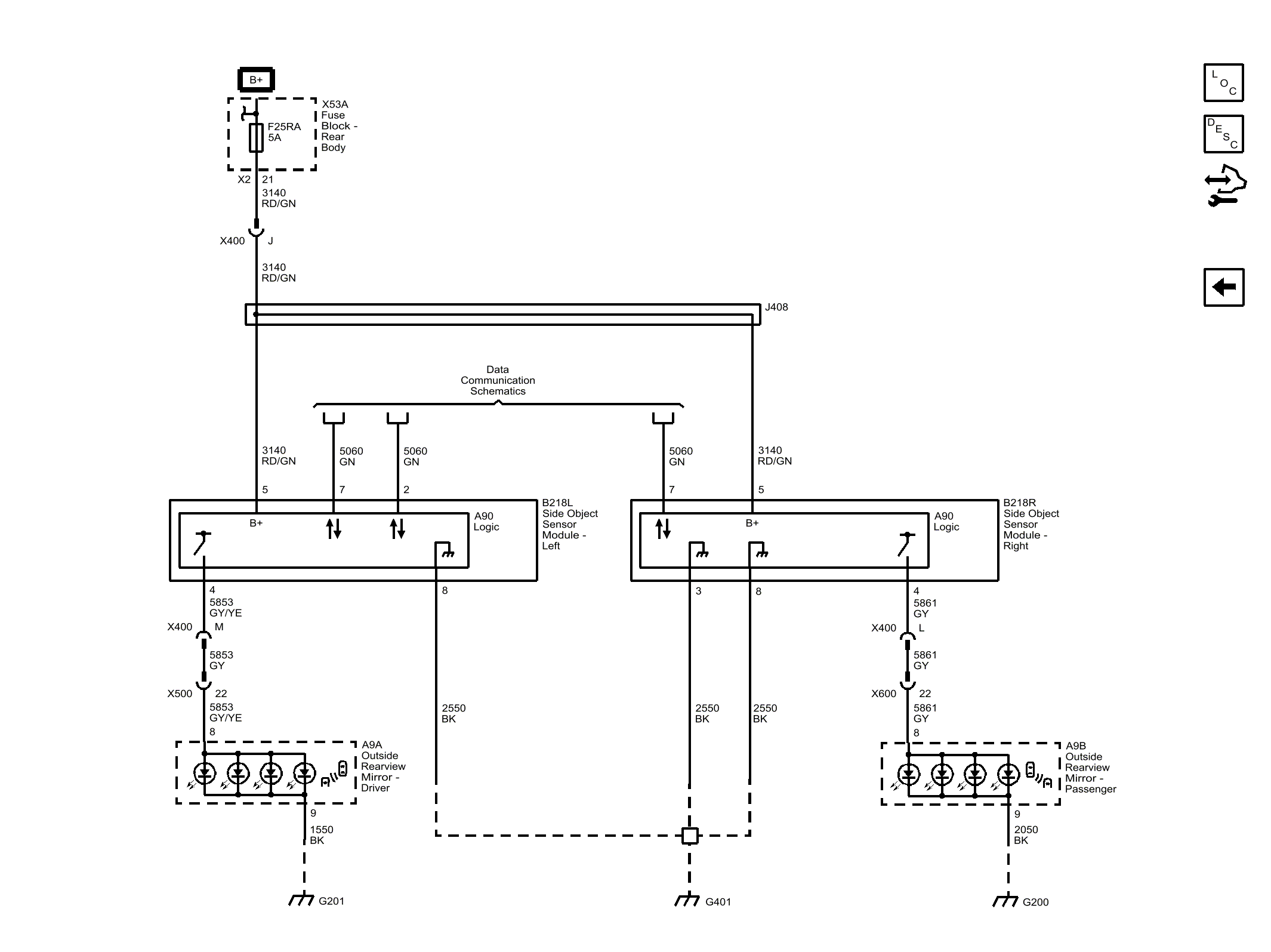

Fig 1: Side Blind Zone Alert (UFT) Wiring Schematic

GM3336997

Courtesy of GENERAL MOTORS COMPANY
