Passive Entry and Passive Start Antennas (ATH with BTM) Wiring Schematics

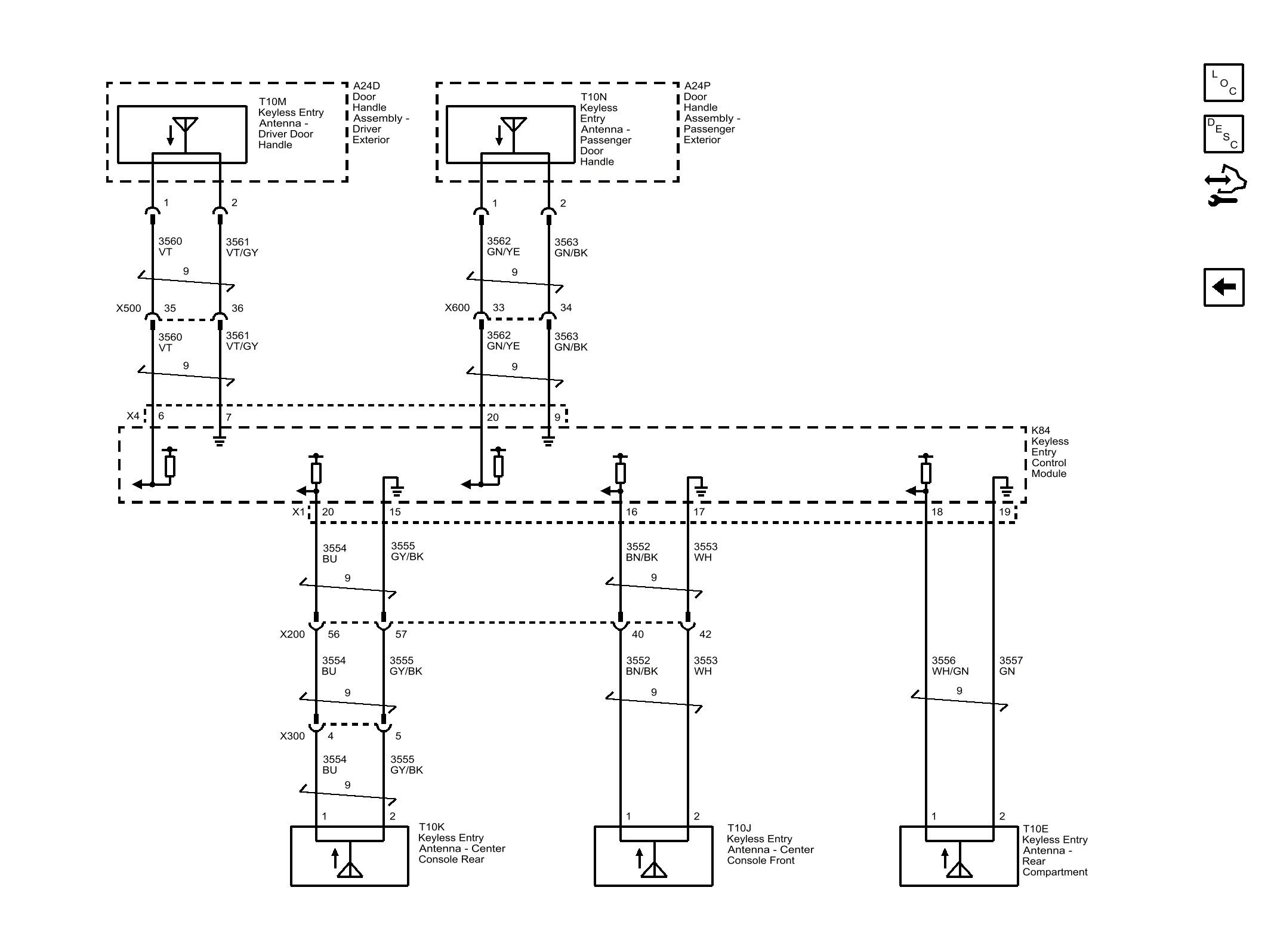

Fig 1: Passive Entry and Passive Start Antennas (ATH with BTM) Wiring Schematic

GM3337019

Courtesy of GENERAL MOTORS COMPANY
