Passive Entry (ATH with BTM) Wiring Schematics

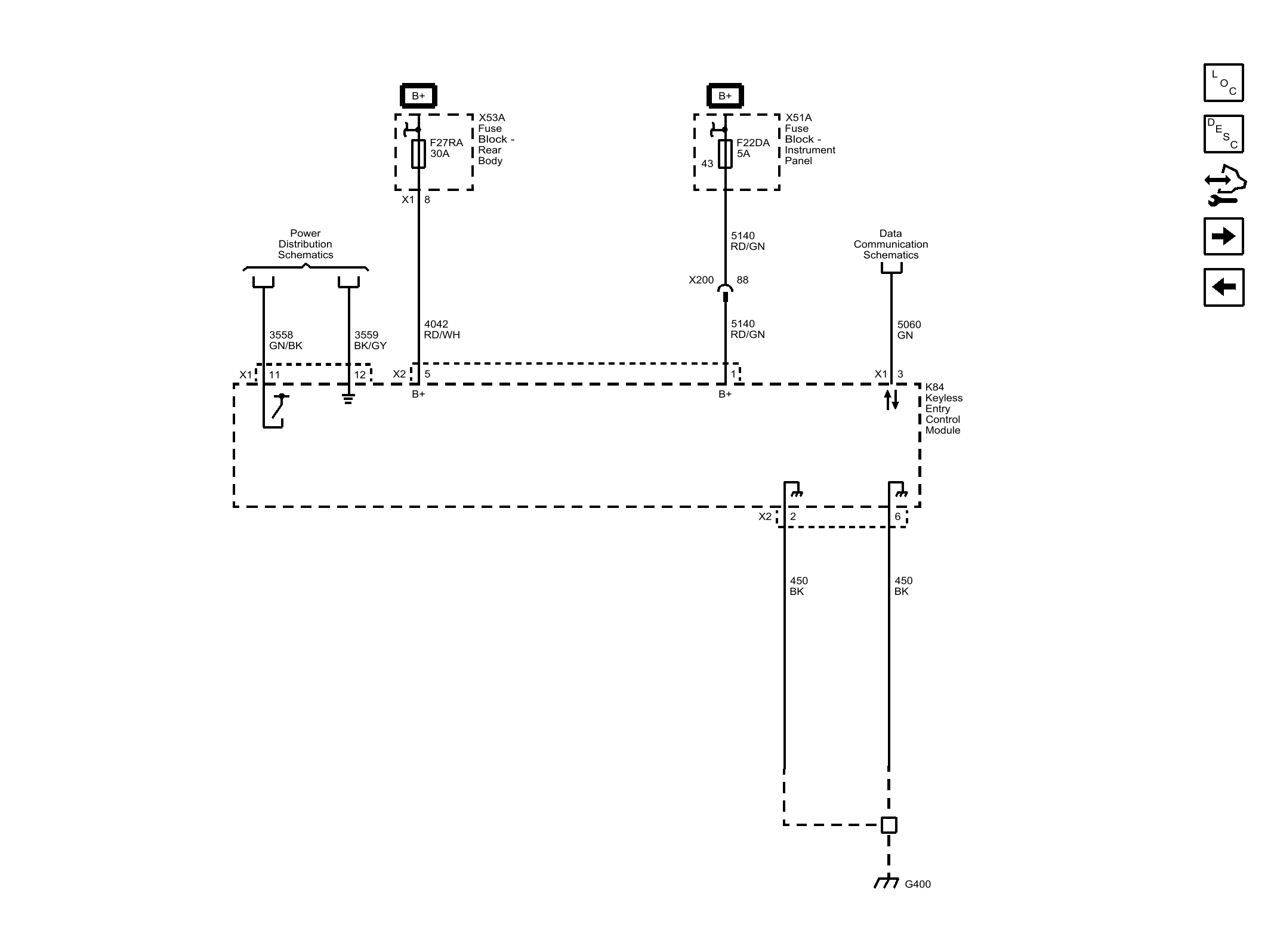

Fig 1: Passive Entry (ATH with BTM) Wiring Schematic

GM3337016

Courtesy of GENERAL MOTORS COMPANY
