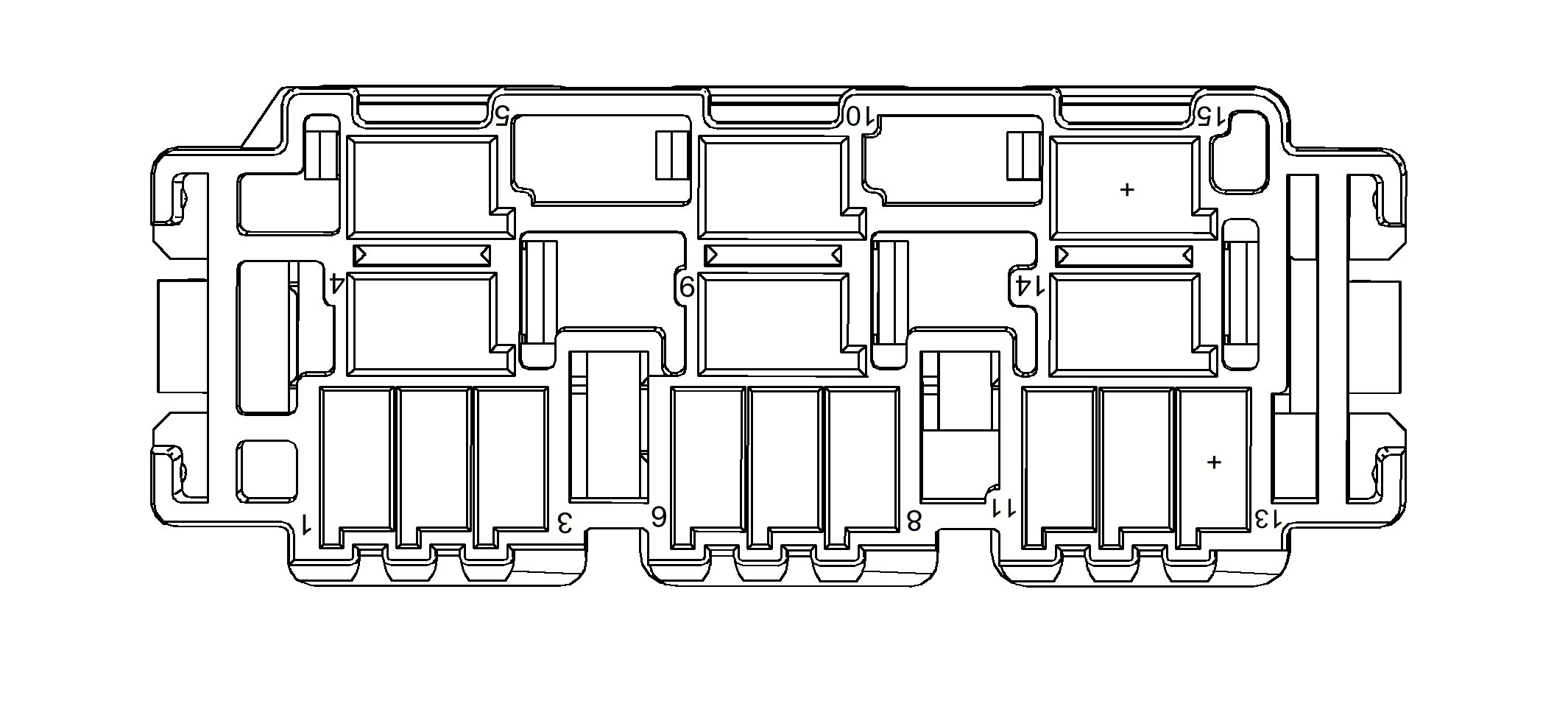

X51A Fuse Block - Instrument Panel Bottom View Relays
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13595183
- Service Connector: Pending
- Description: 15-Way Fuse Block (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13327158 |
J-35616-42 (RD) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13582244 |
J-35616-42 (RD) |
J-38125-11A |
15344769 |
23 |
F |
G |
| III |
13327160 |
J-35616-42 (RD) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
X51A Fuse Block - Instrument Panel Bottom View Relays
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
1650 |
Ground |
I |
- |
| 2 |
0.75 |
BK |
1650 |
Ground |
I |
- |
| 3 |
0.5 |
GN/BN |
5706 |
Endgate Latch Relay Supply Voltage |
I |
- |
| 4 |
0.75 |
RD/BU |
42 |
Battery Positive Voltage |
I |
- |
| 5 |
0.75 |
BU/WH |
6128 |
Rear Closure Unlatch Motor Unlatch Control |
I |
- |
| 6 |
0.5 |
BK |
1650 |
Ground |
I |
- |
| 7 |
1 |
GY |
295 |
Door Lock Actuator Lock Control |
I |
- |
| 8 |
0.5 |
VT/YE |
3267 |
Child Security Lock Relay Control |
I |
- |
| 9 |
1 |
RD |
3266 |
Child Security Lock Motor Unlock Control |
I |
- |
| 10 |
1 |
GY/GN |
3271 |
Door Lock Control (2) |
I |
- |
| 11 |
0.5 |
BK |
1650 |
Ground |
I |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.5 |
VT/YE |
43 |
Accessory Voltage |
I |
- |
| 14 |
4 |
RD/VT |
842 |
Battery Positive Voltage |
II |
- |
| 15 |
6 |
RD/BU |
3940 |
Battery Positive Voltage |
III |
- |
