Installation Procedure
WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the sealing surfaces.

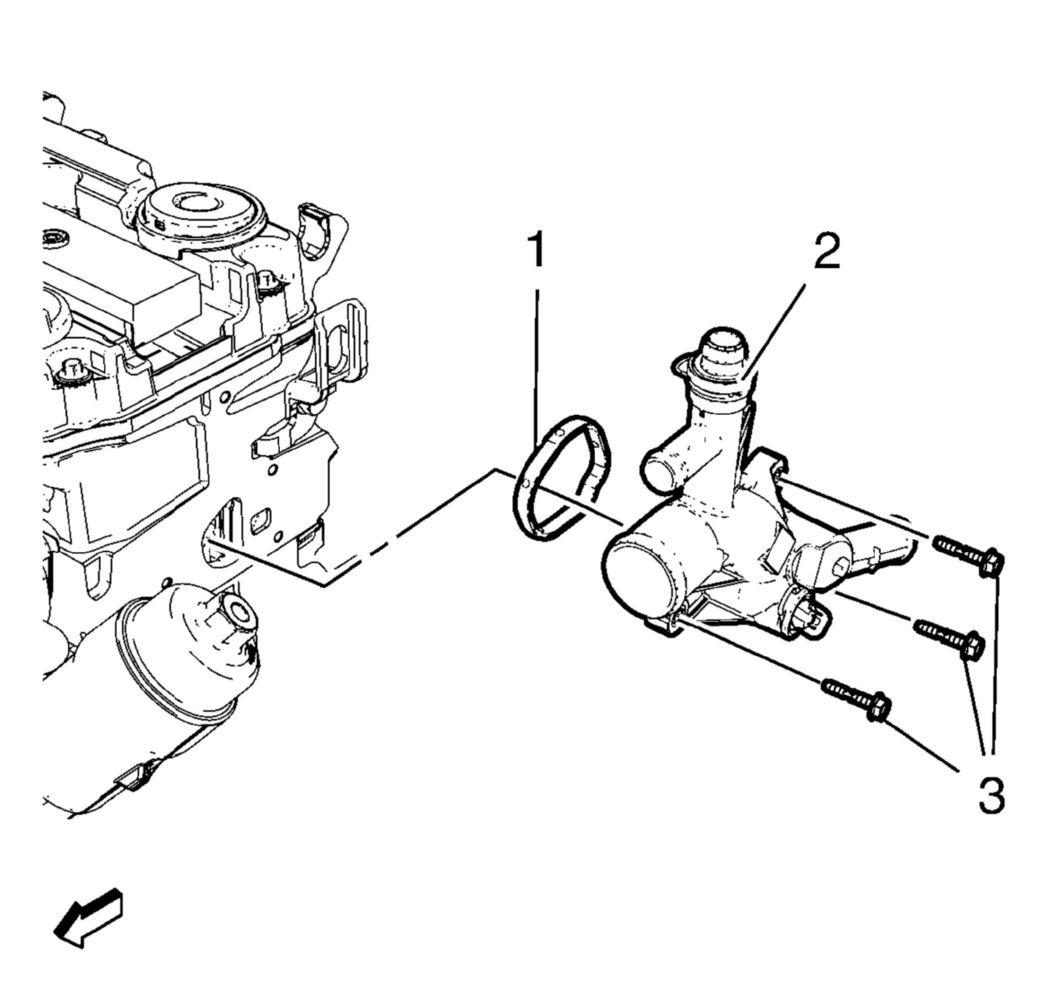

- Install the water outlet (2) and a NEW water outlet seal ring (1).
- Install the 3 water outlet bolts (3) and tighten to 8 N.m (71 lb in).
- Connect the engine coolant temperature sensor (water outlet) wiring harness connector.
- Install the engine oil cooler inlet hose to the water outlet. Refer to Engine Oil Cooler Inlet Hose Replacement (1.4L LUV, 1.8L LUW and LWE) , Engine Oil Cooler Inlet Hose Replacement (2.0L Diesel LUZ) .
- Install the radiator inlet hose to the water outlet. Refer to Radiator Inlet Hose Replacement (1.4L LUV) , Radiator Inlet Hose Replacement (1.8L LUW and LWE) , Radiator Inlet Hose Replacement (2.0L Diesel LUZ) .
- Install the heater inlet hose to the water outlet. Refer to Heater Inlet Hose Replacement (1.8L LUW and LWE) , Heater Inlet Hose Replacement (1.4L LUV) , Heater Inlet Hose Replacement (2.0L Diesel LUZ) .
- Install the engine coolant air bleed hose to the water outlet. Refer to Engine Coolant Air Bleed Hose Replacement (1.4L LUV) , Engine Coolant Air Bleed Hose Replacement (1.8L LUW and LWE) , Engine Coolant Air Bleed Hose Replacement (2.0L Diesel LUZ) .
- Install the charge air cooler outlet air hose to the throttle body. Refer to Charge Air Cooler Outlet Air Hose Replacement (Automatic Transmission) , Charge Air Cooler Outlet Air Hose Replacement (Manual Transmission) .
- Fill the cooling system. Refer to Cooling System Draining and Filling (GE-47716 Fill) , Cooling System Draining and Filling (Static Fill) .
CAUTION:
Refer to Fastener Caution .
