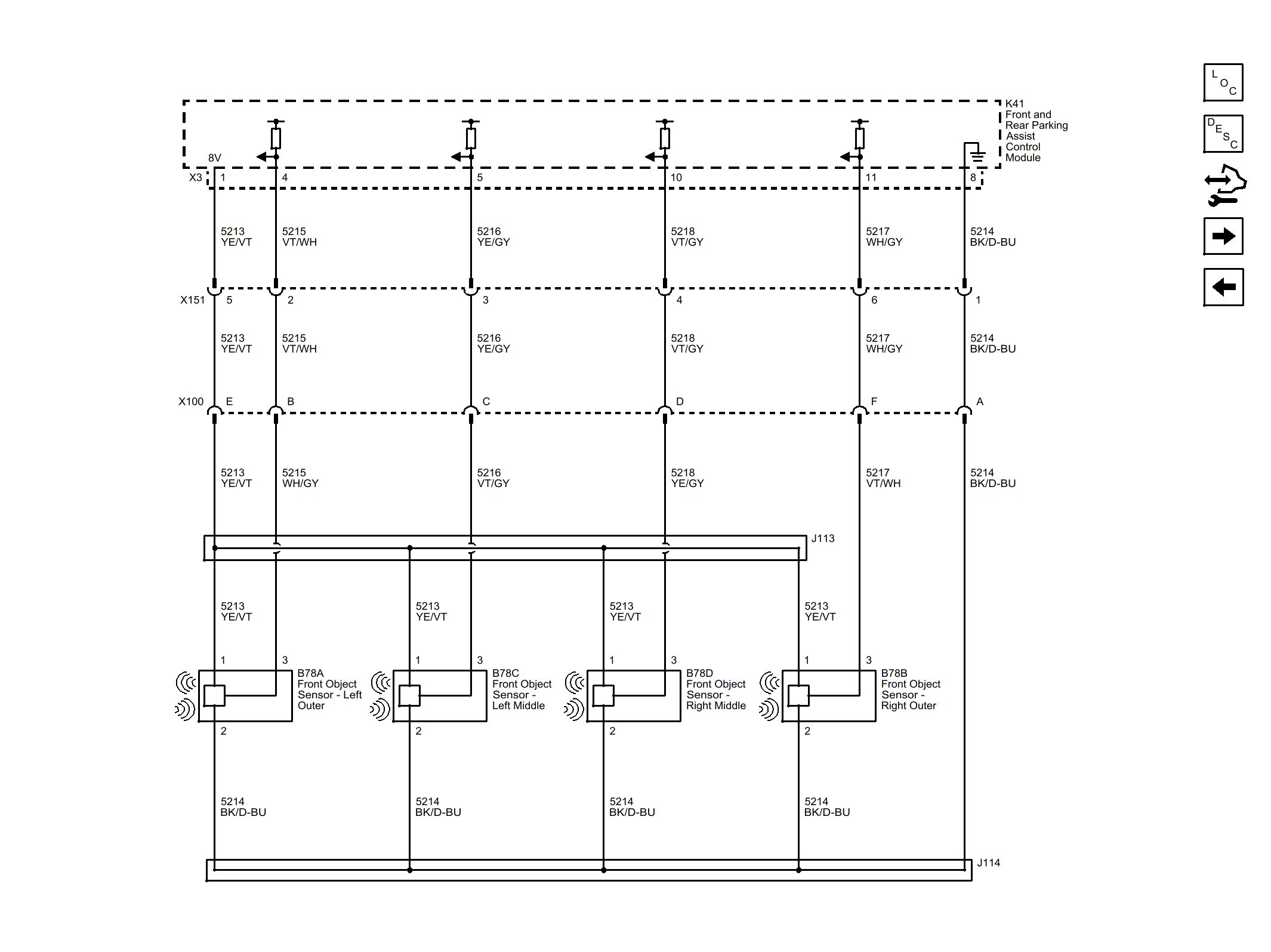

Home >> Buick >> 2014 >> Regal GS, FWD, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Object Detection System And Parking Assist System >> Schematic Wiring Diagrams >> Object Detection Wiring Schematics >> Front Sensors (UD5/Except CZ2)
