Air Cleaner Element Replacement

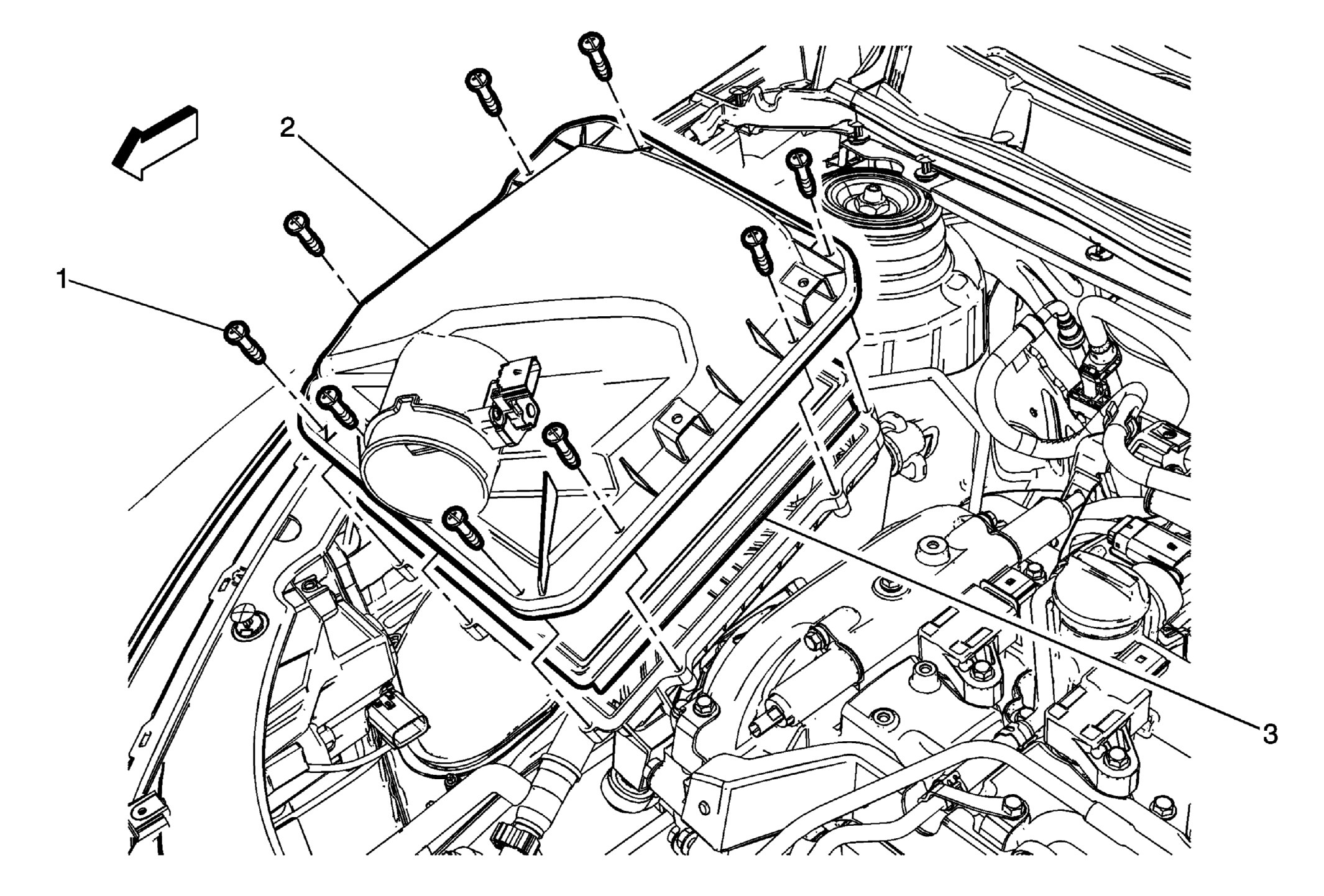

Fig 1: Air Cleaner Element (LTG)
GM2868534Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Element Replacement

Callout Component Name

Preliminary Procedure

  1. Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  2. Disconnect the mass airflow sensor electrical connector.
1 Air Cleaner Assembly Fasteners (Qty: 9)
CAUTION:

Refer to Fastener Caution .
2 Air Cleaner Upper Cover
3 Air Cleaner Element
