Communication Interface Module Bracket Replacement

WARNING: This page is about a different car, the 2010 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

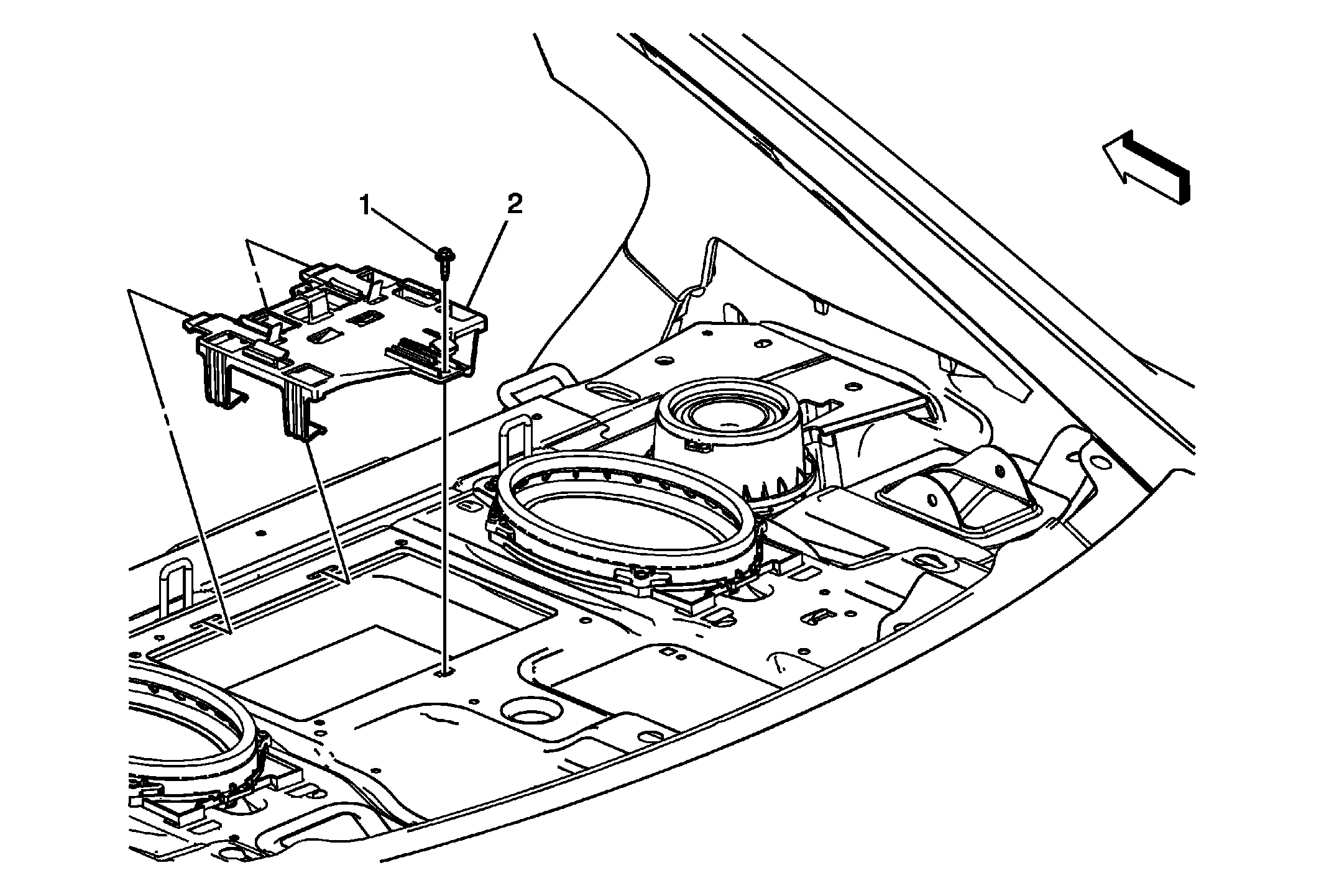

Fig 1: Communication Interface Module Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (without DB3) or Rear Window Panel Trim Replacement (with DB3) .
1	Communication Interface Module Bracket Fastener
2	Communication Interface Module Bracket Procedure: Disconnect the electrical connectors.
