Rear Side Door Window Frame Front Applique Replacement
Rear Side Door Window Frame Front Applique Replacement

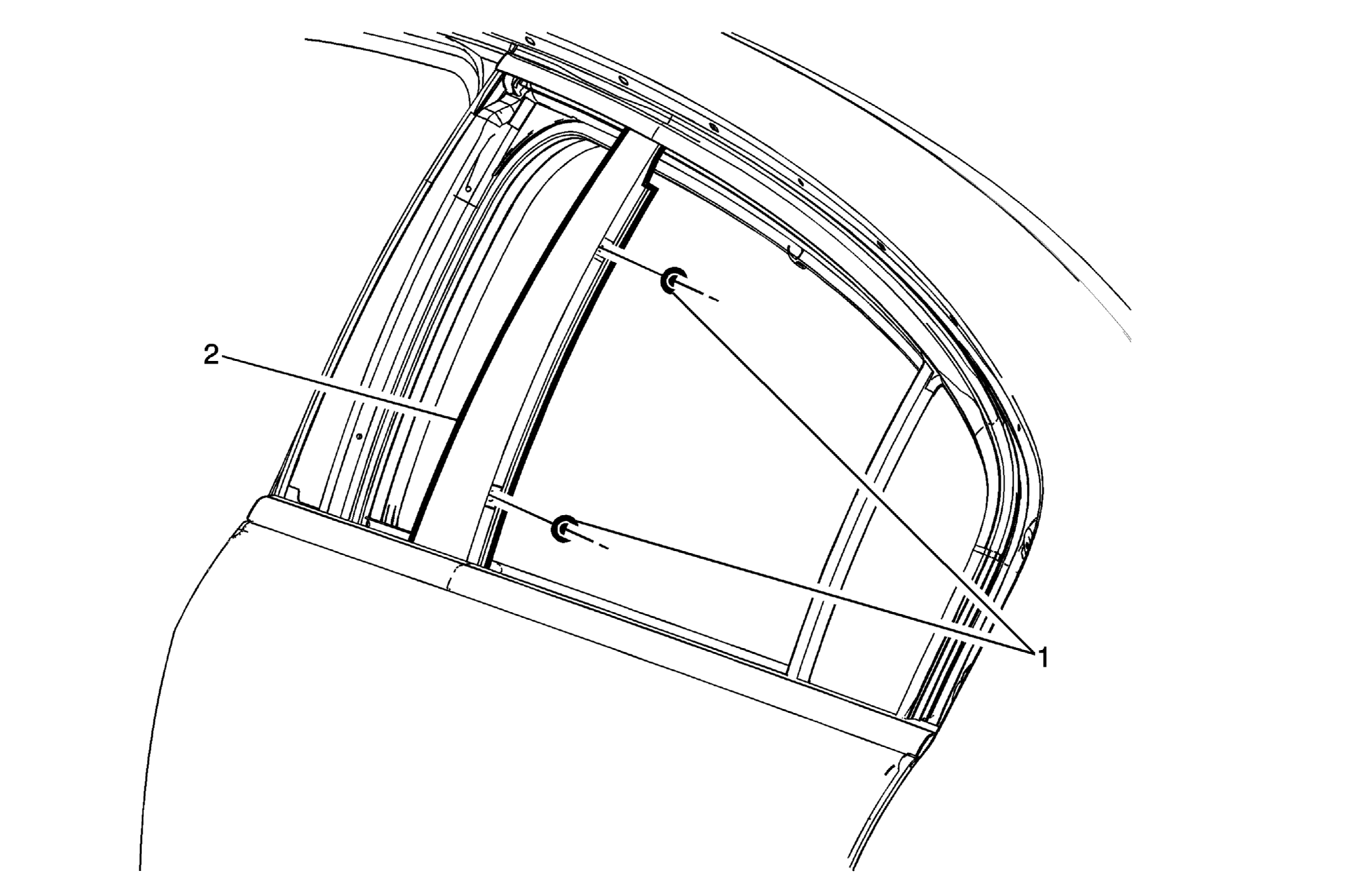

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear side door window belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement . |
|
| 1 | Rear Side Door Window Frame Front Applique Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Procedure Pull the rear side door window weatherstrip from the applique to expose the screws. |
| 2 | Rear Side Door Window Frame Front Applique
NOTE:
Inspect the window for proper operation before installing the rear side door window belt reveal molding. |
