Front Side Door Window Rear Channel Replacement

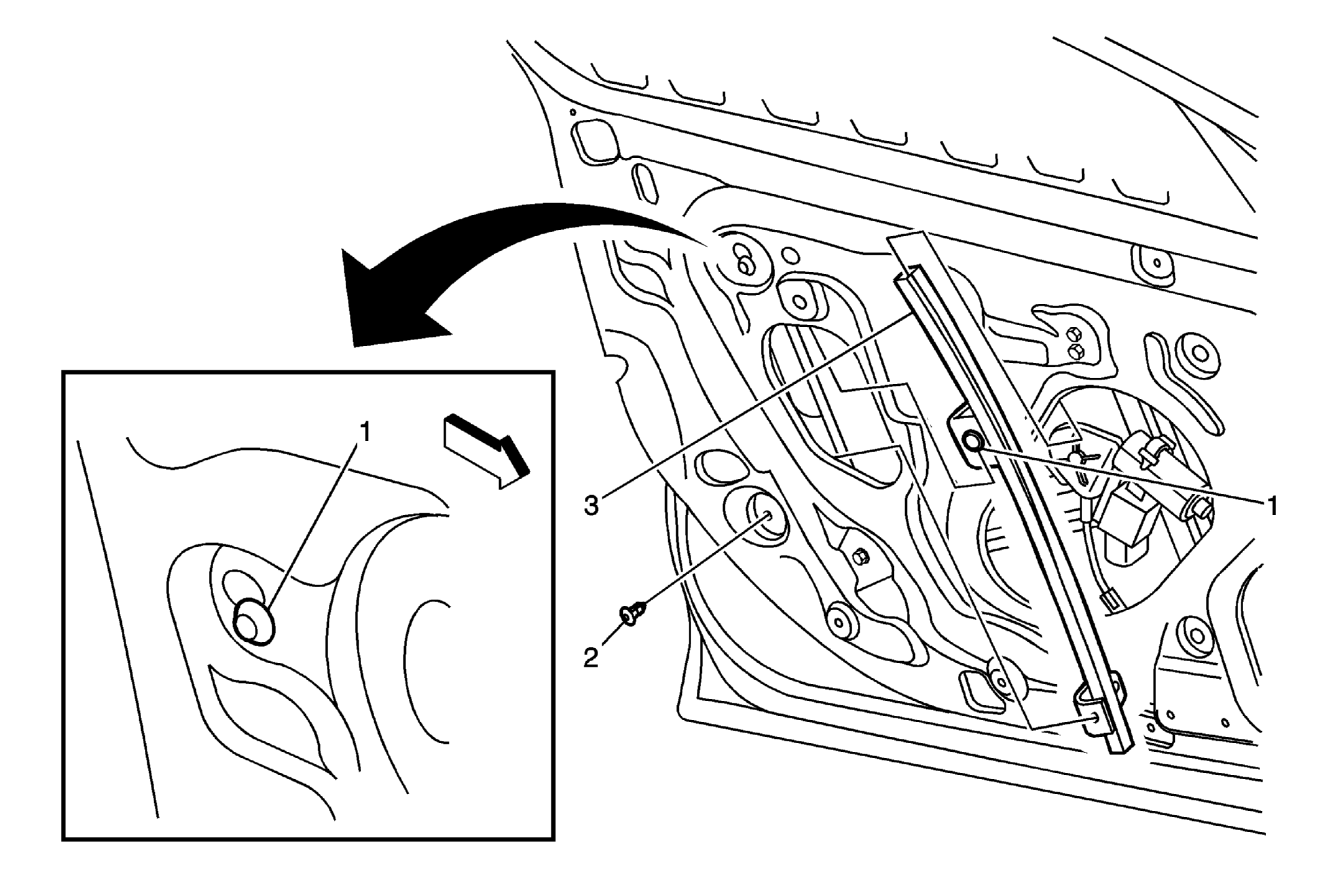

Fig 1: Front Side Door Window Rear Channel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door trim panel. Refer to Front Side Door Trim Replacement . Remove the front side door window regulator. Front Side Door Window Regulator Replacement
1	Front Side Door Window Rear Upper Channel Fastener (Qty :2) CAUTION: Refer to Fastener Caution . Procedure Remove the weatherstrip from the channel before removing fasteners. Tighten 10 (89 lb in)
2	Front Side Door Window Rear Lower Channel Fastener (Qty :2) CAUTION: Refer to Fastener Caution . Procedure Remove the weatherstrip from the channel before removing fasteners. Tighten 10 (89 lb in)
3	Front Side Door Window Rear Channel NOTE: Inspect the window for proper operation.
