Front Side Door Window Frame Rear Applique Replacement

Preliminary Procedure

1. Remove the front side door window belt reveal molding. Refer to Front Side Door Window Belt Reveal Molding Replacement .
2. Remove the front side door window upper reveal molding. Refer to Front Side Door Window Upper Reveal Molding Replacement .
3. Remove the front side door window weatherstrip from the applique area only. Refer to Front Side Door Window Weatherstrip Replacement .

Procedure

1. The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.

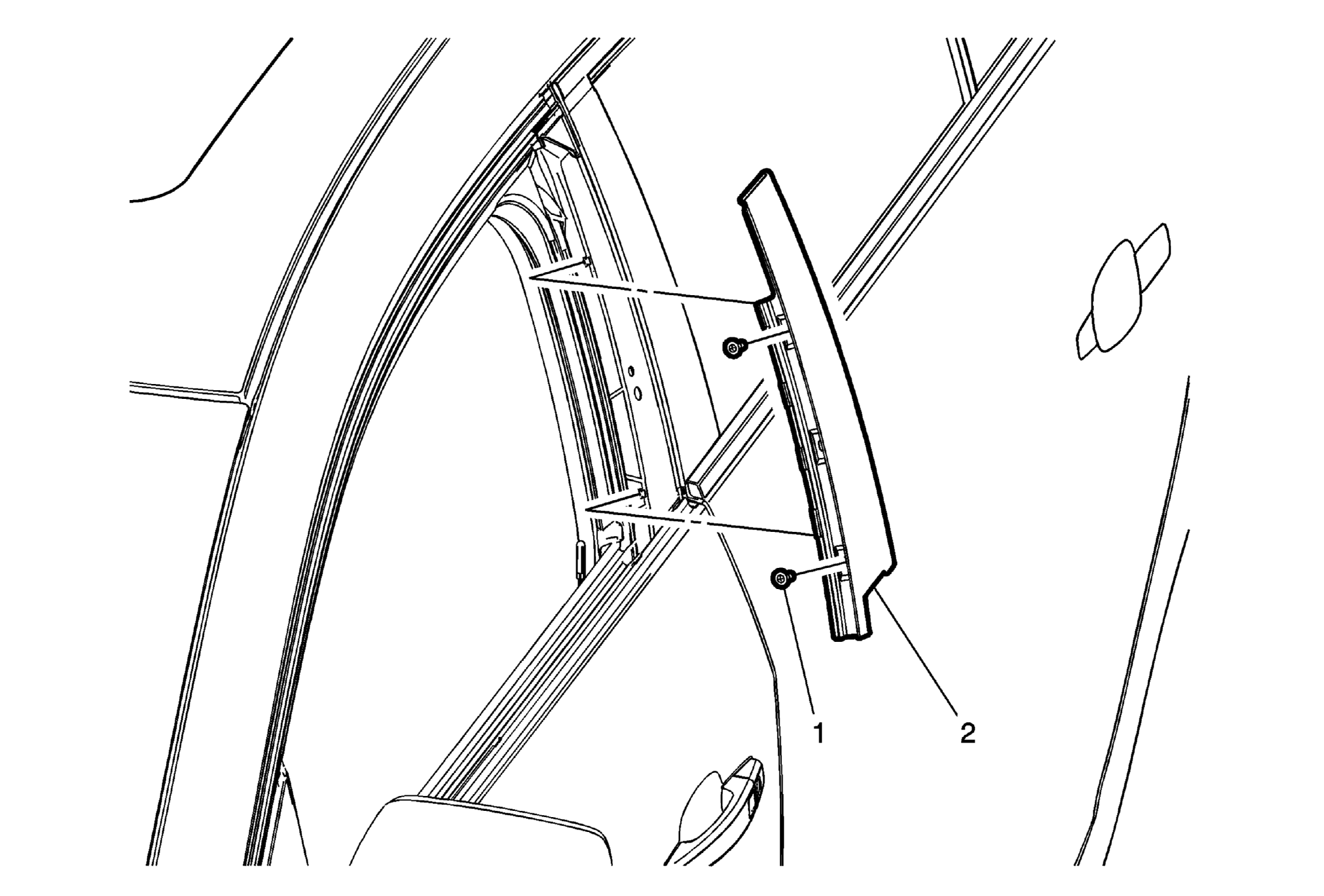

2. Use a heat gun or equivalent to remove the front side door window frame rear applique. Use a plastic flat bladed tool to assist in removal.
3. Clean any remaining residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe surface dry with a clean lint-free towel.
4. When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
5. Using the palm of the hand, apply even pressure to the front side door window frame rear applique to ensure full adhesion is made.
