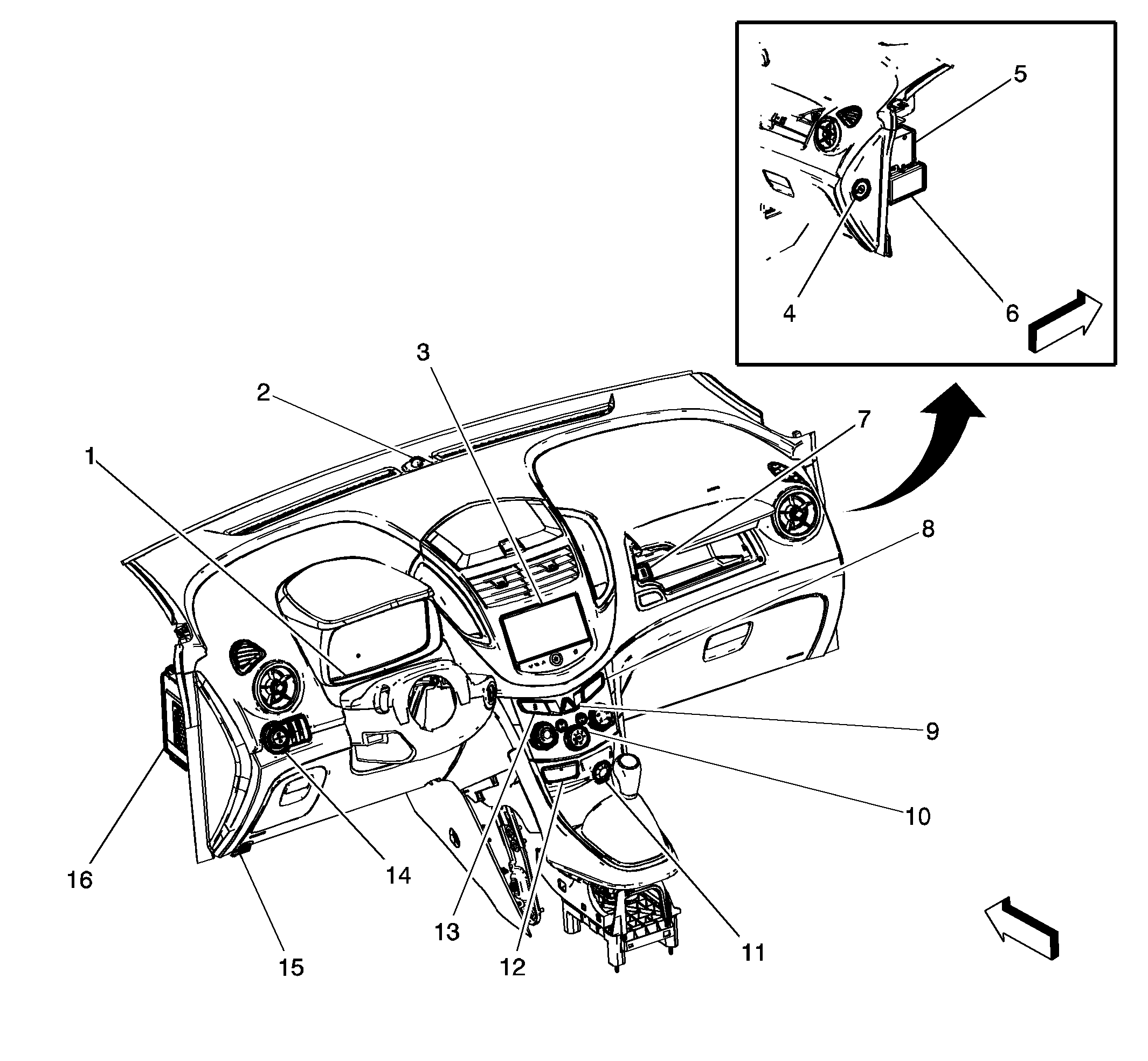

| 1:
P16 Instrument Cluster P16 Instrument Cluster |
| 2:
B10B Ambient Light/Sunload Sensor B10B Ambient Light / Sunload Sensor |
| 3:
A11 Radio A11 Radio X1A11 Radio X2 |
| 4:
S40 Passenger Air Bag Disable Switch |
| 5:
K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module (UE1) |
| 6:
C3 Telematics Communication Interface Control Module Battery C3 Telematics Communication Interface Control Module Battery (UE1) |
| 7:
X83 Auxiliary Audio Input X83 Auxlliary Audio Input (UF7/USR) |
| 8:
P14 Passenger Air Bag Disabled Indicator |
| 9:
S26 Hazard Warning Switch |
| 10:
K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2 |
| 11:
E32 Cigarette Lighter Receptacle E32 Cigarette Lighter Receptacle |
| 12:
S48D Multifunction Switch 2 - Instrument Panel |
| 13:
S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel |
| 14:
S30 Headlamp Switch S30 Headlamp Switch |
| 15:
X84 Data Link Connector X84 Data Link Connector |
| 16:
K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
