HVAC Components (2 of 2)

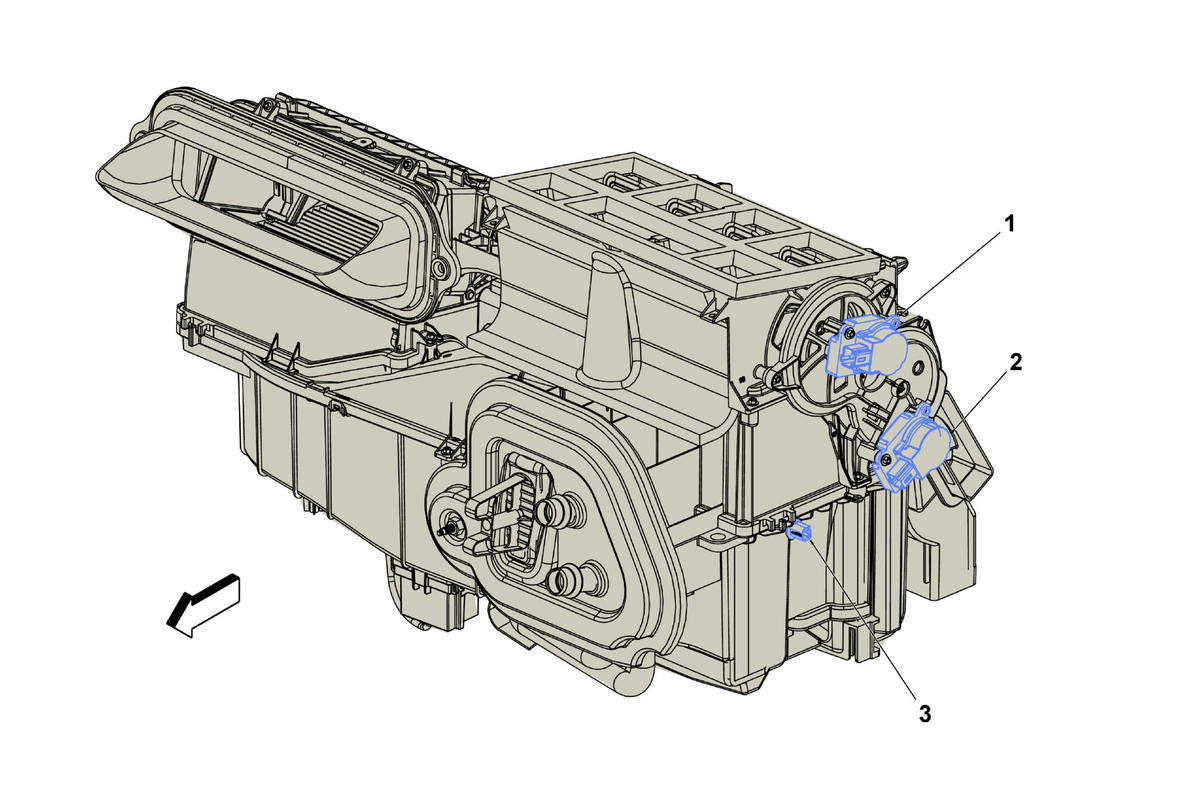

Fig 1: HVAC Components (2 of 2)
GM3655027Courtesy of GENERAL MOTORS COMPANY
Items
1:  M37 Mode Door Actuator
2:  M6L Air Temperature Door Actuator - Left
3:  B39 A/C Evaporator Temperature Sensor
