Foot Pedal Components (MR5)

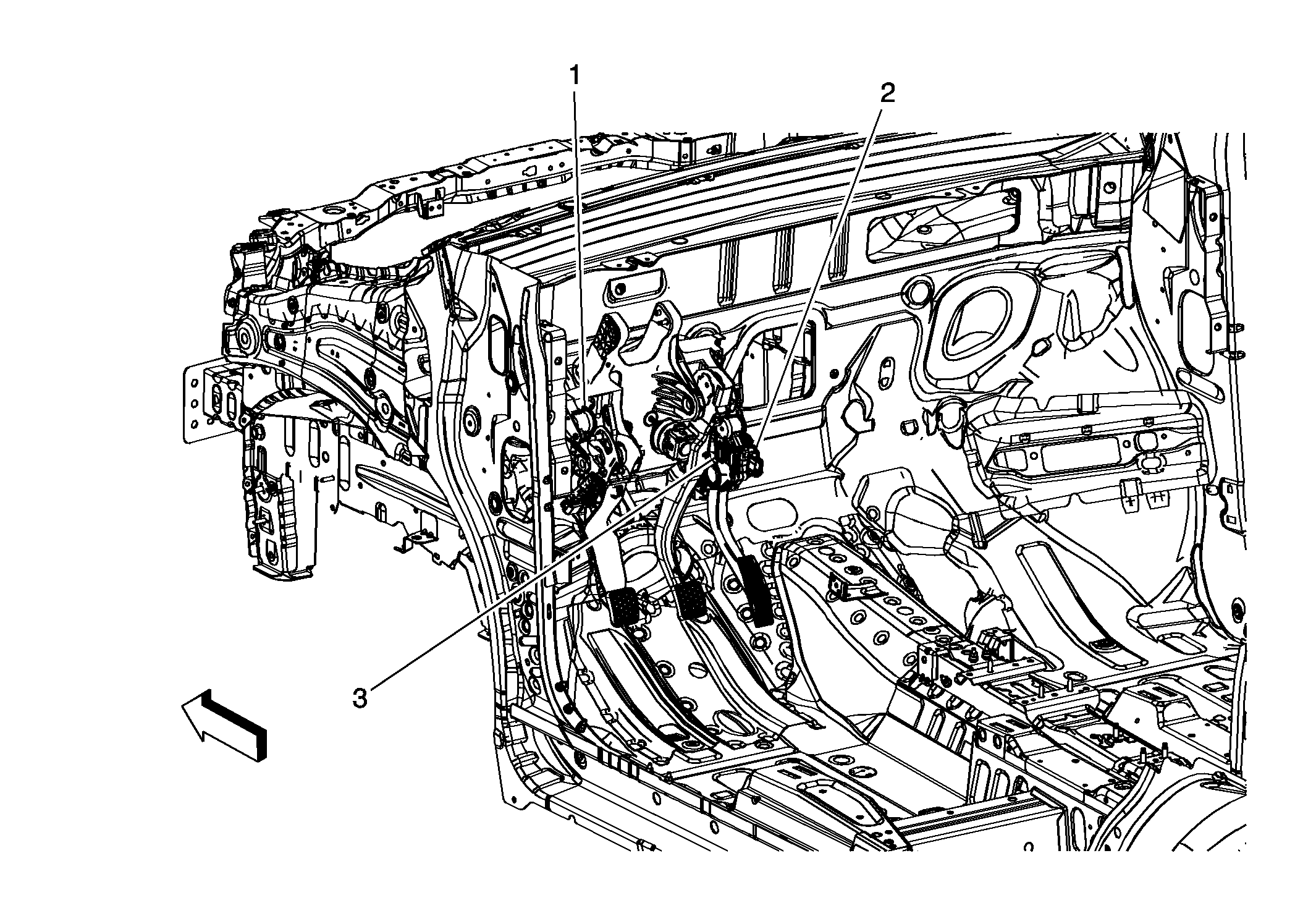

Fig 1: Foot Pedal Components (MR5)
GM3655009Courtesy of GENERAL MOTORS COMPANY
Items
1:  B25 Clutch Pedal Position Switch
2:  B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
3:  B22 Brake Pedal Position Sensor B22 BRAKE PEDAL POSITION SENSOR (MH8/MHB)B22 BRAKE PEDAL POSITION SENSOR (M4P/MR5)
