Home >> Buick >> 2014 >> Encore Base, 1.4L Eng VIN 8, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic Wiring Diagrams >> Defogger Wiring Schematics (Encore) >> Defogger

Defogger Wiring Schematics (Encore): Defogger

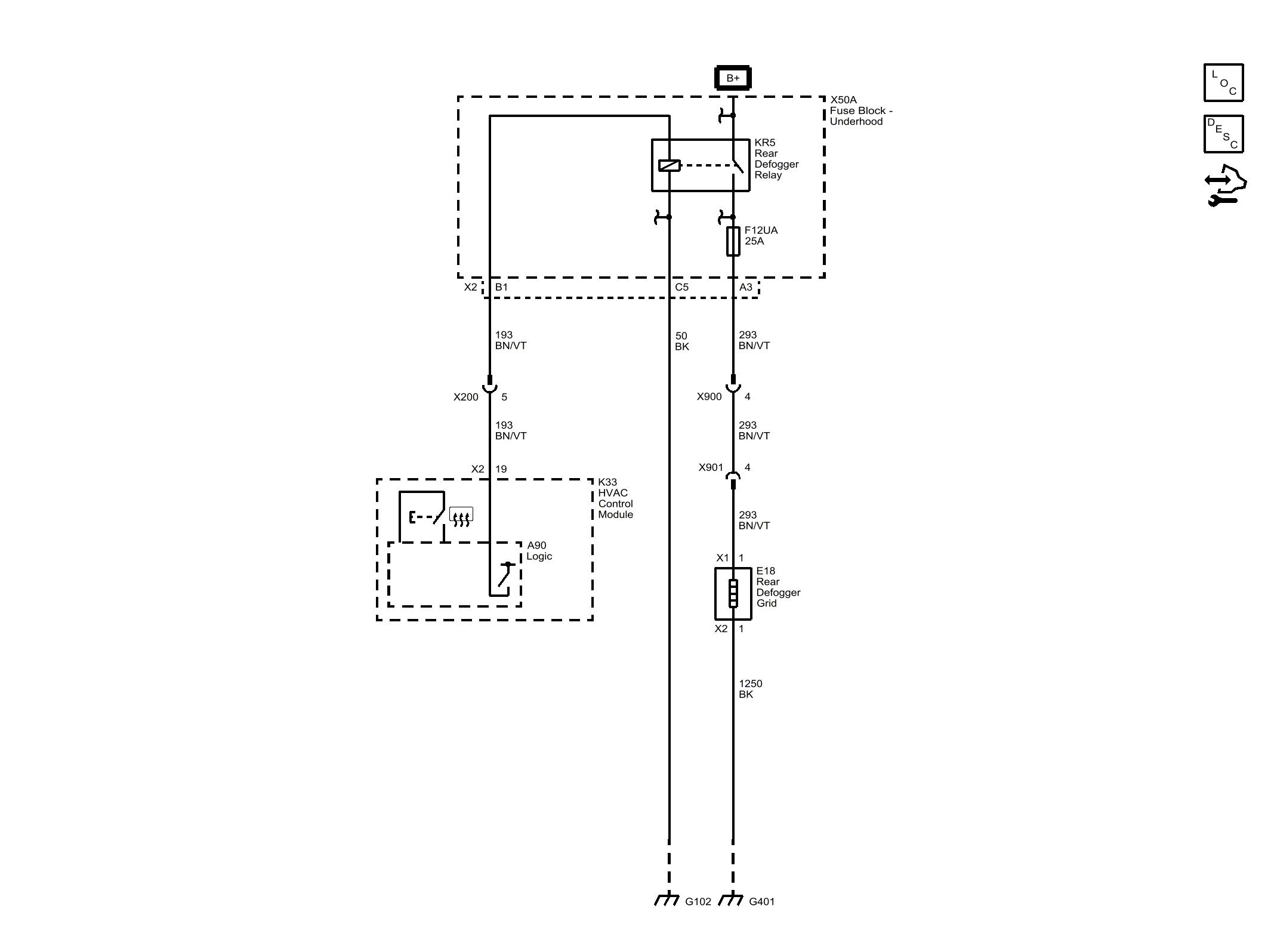

Fig 1: Defogger

GM3263627

Courtesy of GENERAL MOTORS COMPANY
