Inflatable Restraint Passenger Presence System Replacement - Front

WARNING: This page is about a different car, the 2015 GMC Acadia, 2015 Chevrolet Traverse, and 2015 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

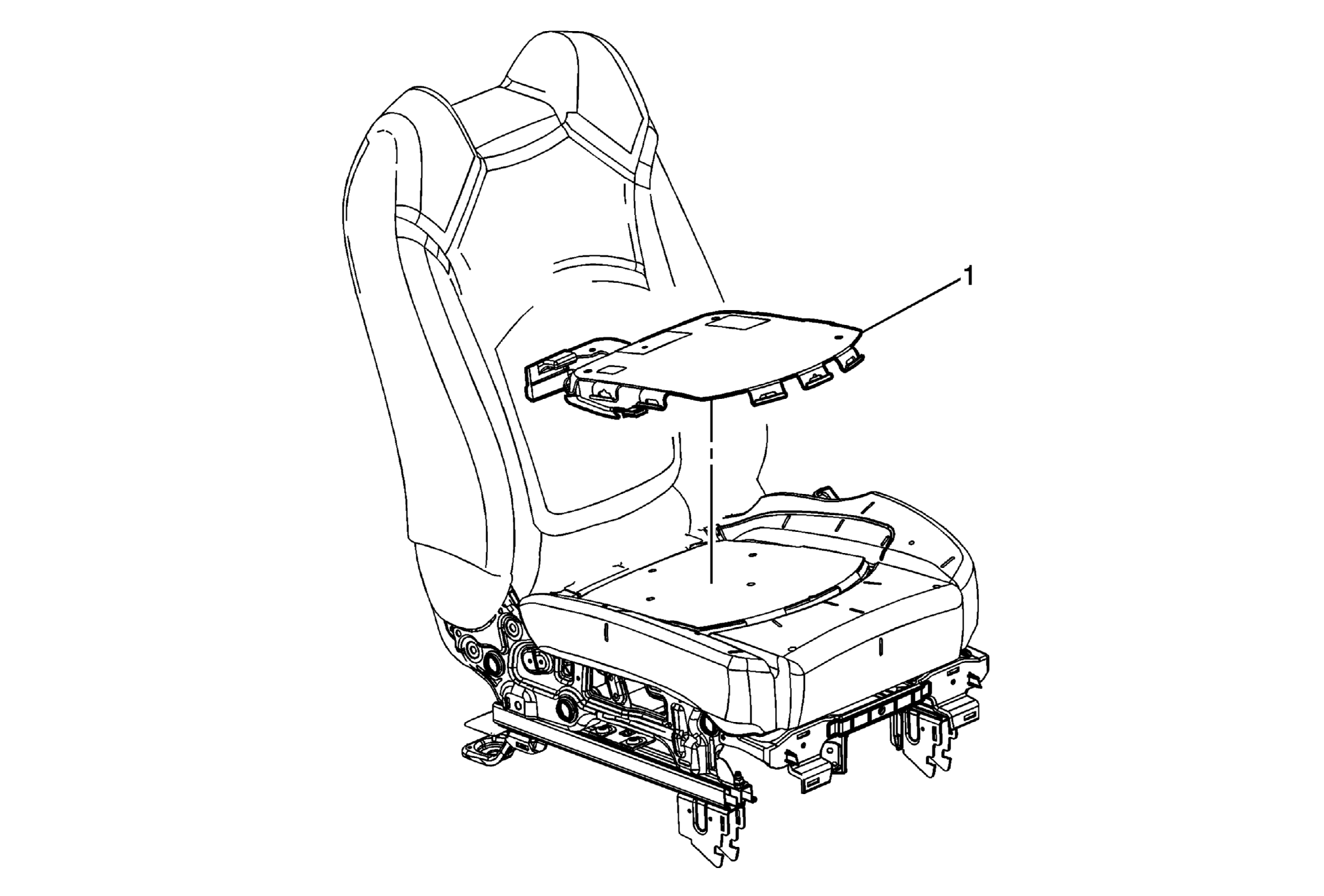

Fig 1: Inflatable Restraint Passenger Presence System - Front

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front seat. Refer to Bucket Seat Removal and Installation . Remove the seat cushion cover. Refer to Front Seat Cushion Cover and Pad Replacement .
1	Inflatable Restraint Front Passenger Presence System Assembly WARNING: To avoid personal injury, perform a preload test on the passenger presence system whenever you remove or replace the seat cushion trim. Failure to do so may cause the system to malfunction. Procedure Using a pair of scissors cut the hog rings and remove the passenger presence system. Program the inflatable restraint passenger presence system after replacement. Refer to Control Module References . NOTE: Passenger Presence System Preload Test the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed.

Callout

Component Name

Preliminary Procedures

Remove the front seat. Refer to Bucket Seat Removal and Installation .
Remove the seat cushion cover. Refer to Front Seat Cushion Cover and Pad Replacement .

Inflatable Restraint Front Passenger Presence System Assembly

WARNING:

To avoid personal injury, perform a preload test on the passenger presence system whenever you remove or replace the seat cushion trim. Failure to do so may cause the system to malfunction.

Procedure

Using a pair of scissors cut the hog rings and remove the passenger presence system.
Program the inflatable restraint passenger presence system after replacement. Refer to Control Module References .

NOTE:

Passenger Presence System Preload Test the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed.
