Radio Front Side Door Upper Speaker Replacement

WARNING: This page is about a different car, the 2012 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

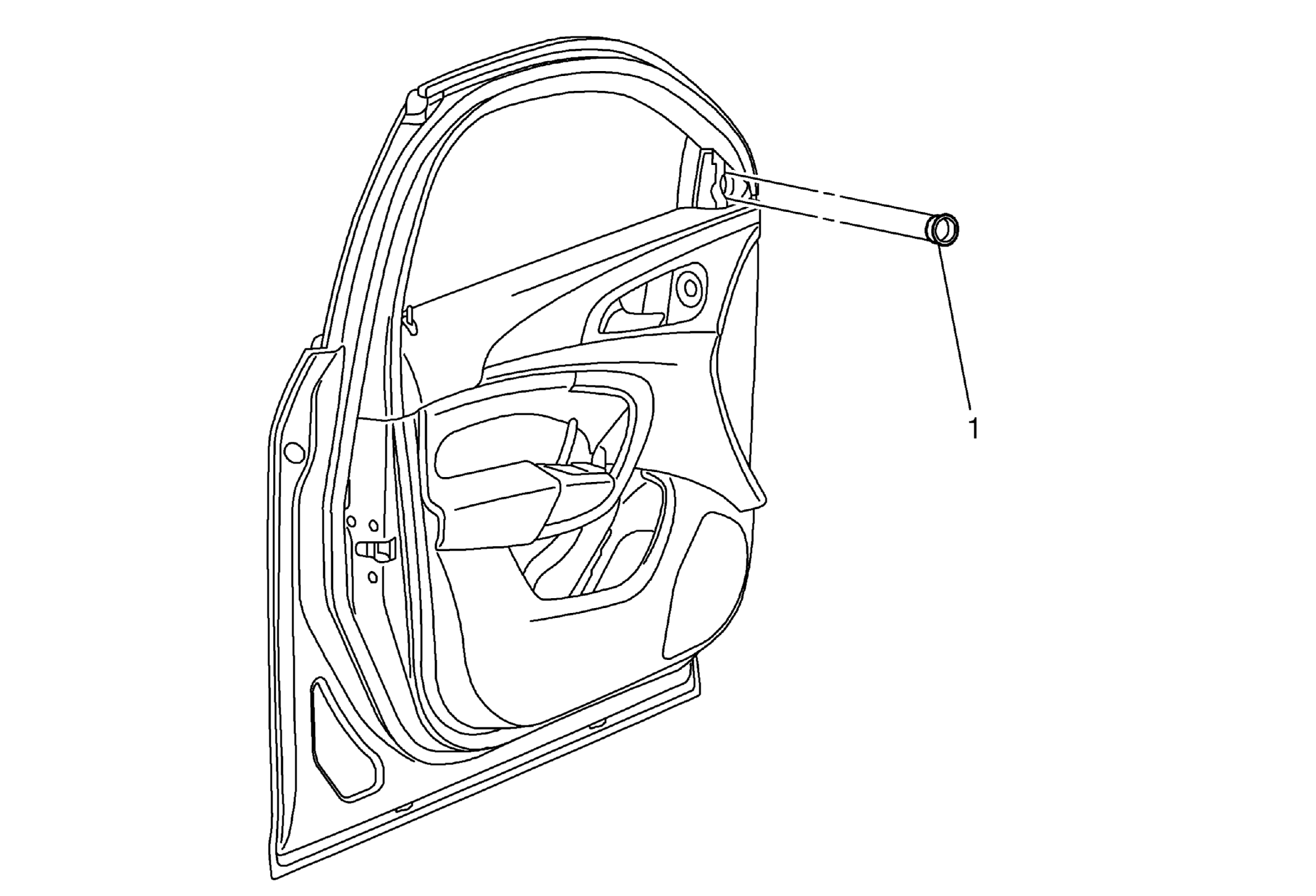

Fig 1: Radio Front Side Door Upper
GM2019722Courtesy of GENERAL MOTORS COMPANY
Radio Front Side Door Upper Speaker Replacement

Callout Component Name
Preliminary Procedure
Remove front side door outside rearview mirror filler. Refer to Front Side Door Outside Rearview Mirror Filler Replacement .
1 Radio Front Side Door Upper Speaker
Procedure
Use a small flat-bladed tool to release the radio front side door upper speaker.
