G24 Windshield Washer Pump Connector End View

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

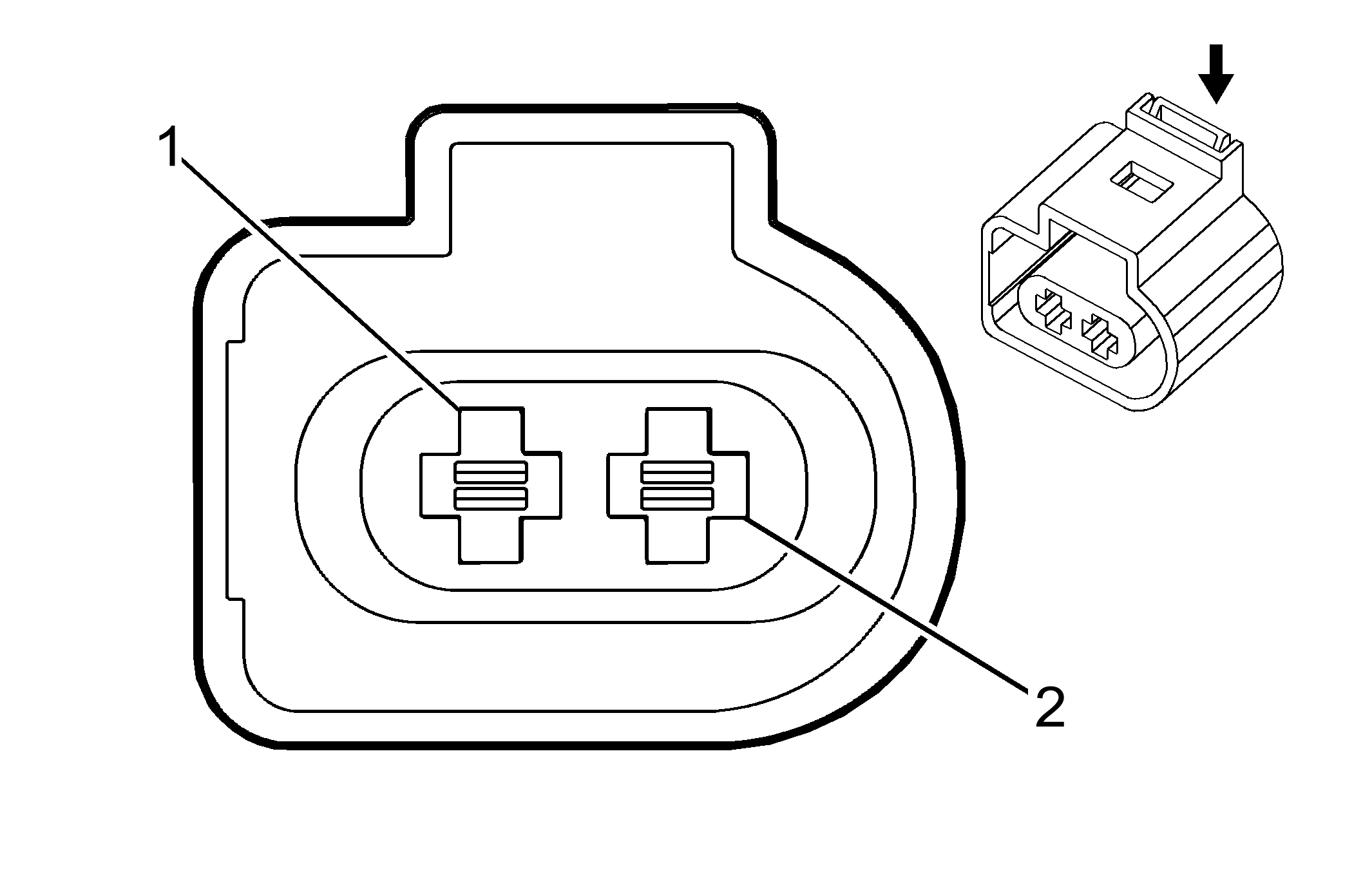

Fig 1: G24 Windshield Washer Pump Connector End View
GM2173581Courtesy of GENERAL MOTORS CORP.
G24 Windshield Washer Pump

Pin Color Circuit Function
1 1 D-BU/RD 228 Windshield Washer Pump Control
2 1.50 BK 1350 Ground
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13269697
  • Service Connector: 13316127
  • Description: 2-Way F 2.8 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-557
  • Diagnostic Test Probe: J-35616-35 (VT)
  • Terminal/Tray: 1-968857-3/7
  • Core/Insulation Crimp: Pending
