E5AM Stop/Turn Signal Lamp - Left Connector End View

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

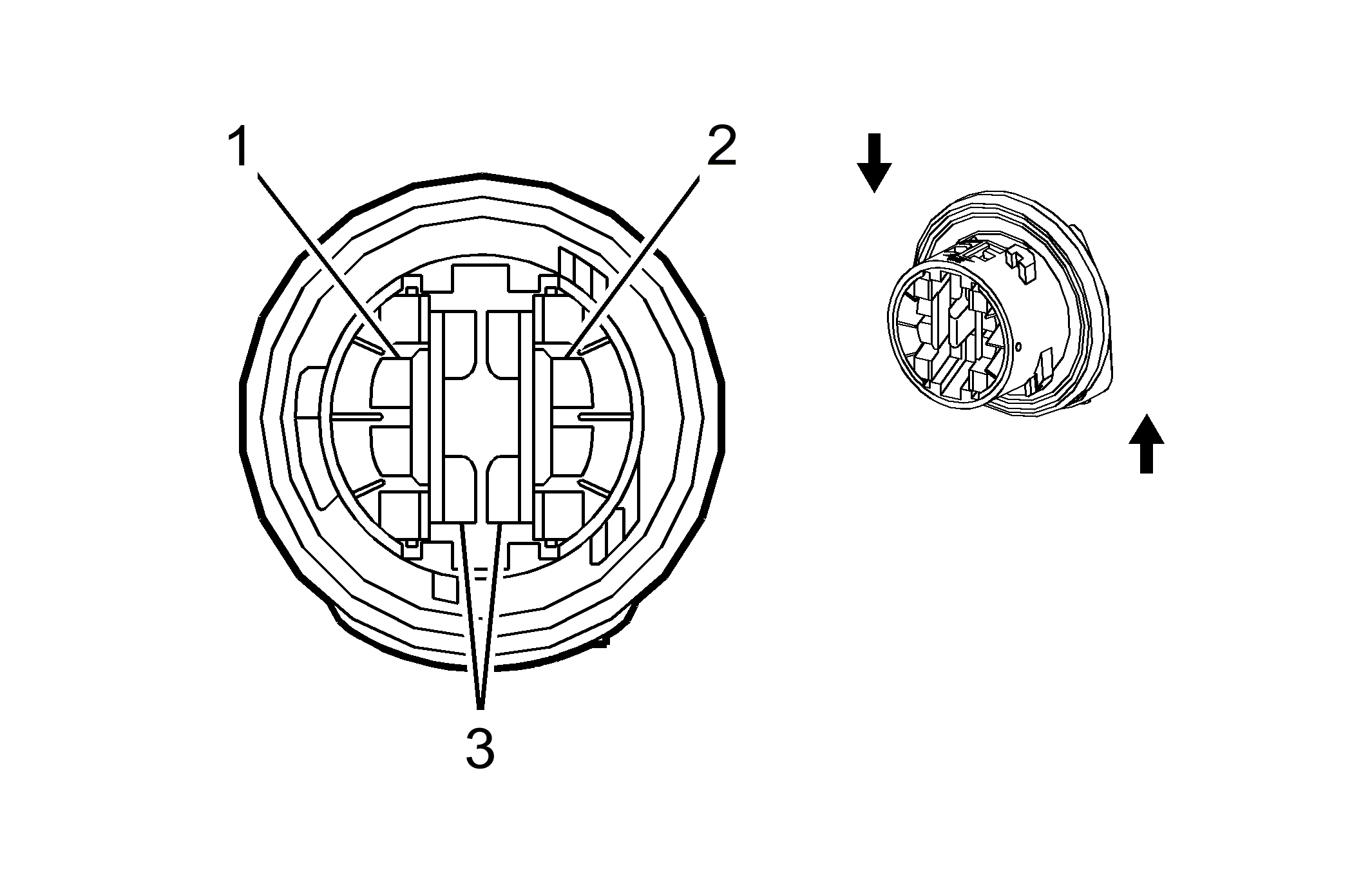

Fig 1: E5AM Stop/Turn Signal Lamp - Left Connector End View
GM2452191Courtesy of GENERAL MOTORS CORP.
E5AM Stop/Turn Signal Lamp - Left

Pin Wire Circuit Function
1 - - Not Used
2 BK 1334 Left Rear Turn Signal and Stop Lamp Supply Voltage
3 BK 50 Ground
BK 50 Ground
Connector Part Information
  • Harness Type: Tail Lamp Assembly - Left
  • OEM Connector: F20.85-2
  • Service Connector: Service by Component Assembly
  • Description: 3-Way F Lamp Socket (BK)
Terminal Part Information
  • Terminated Lead: Service by Component Assembly
  • Release Tool: Not Available
  • Diagnostic Test Probe: Pending
  • Terminal/Tray: Service by Component Assembly
  • Core/Insulation Crimp: Not Available
