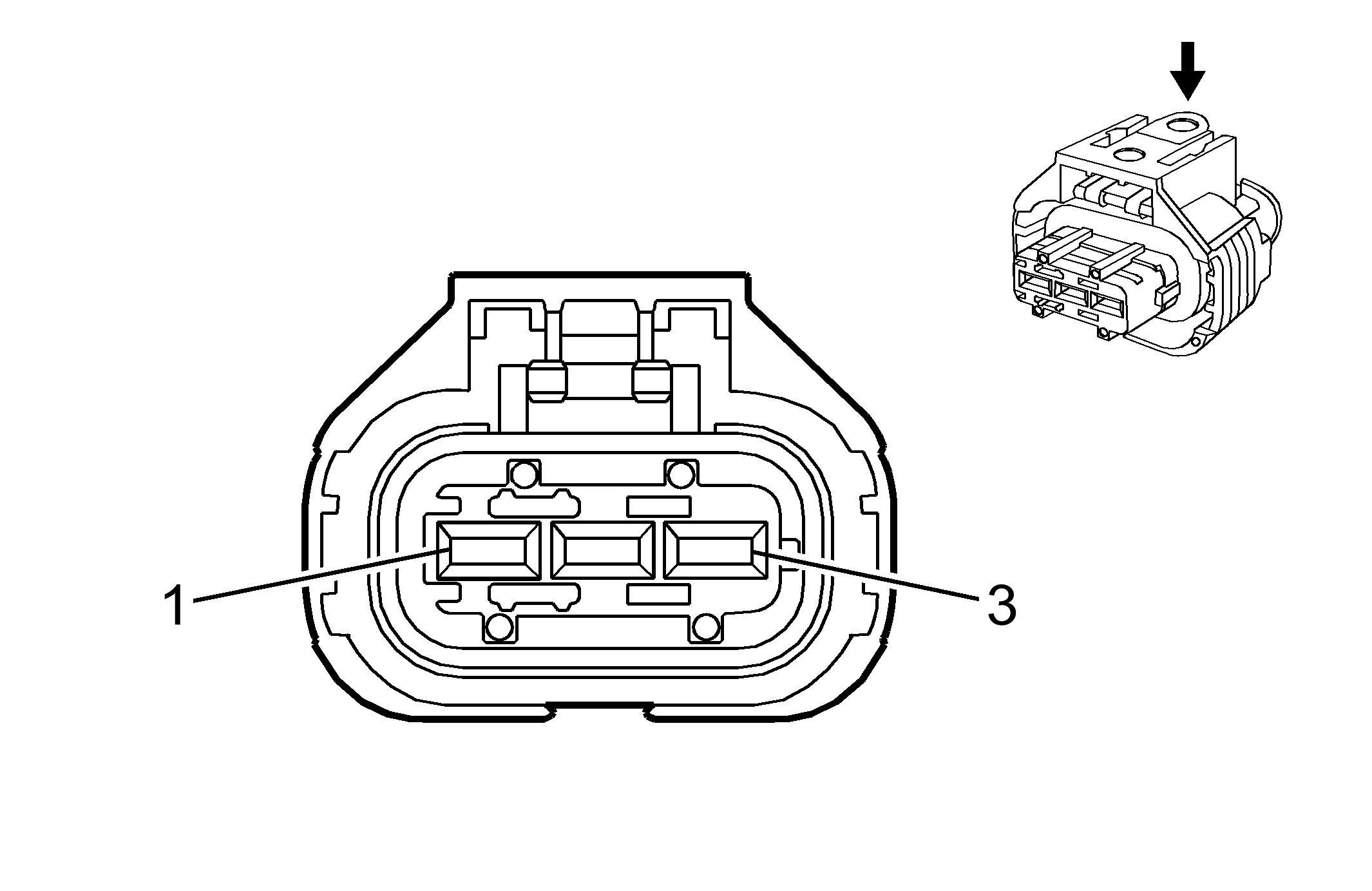

B162LF Vertical Body Acceleration Sensor - Left Front (F45) Connector End View
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
B162LF Vertical Body Acceleration Sensor - Left Front (F45)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.5 YE | 1817 | Accelerometer Voltage Reference |
| 2 | 0.5 WH/VT | 3259 | Left Front Accelerometer Signal |
| 3 | 0.5 BK/BN | 1099 | Low Reference |
Connector Part Information
|
Terminal Part Information
|
