K32 Steering Wheel Heating Control Module (UVD)
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

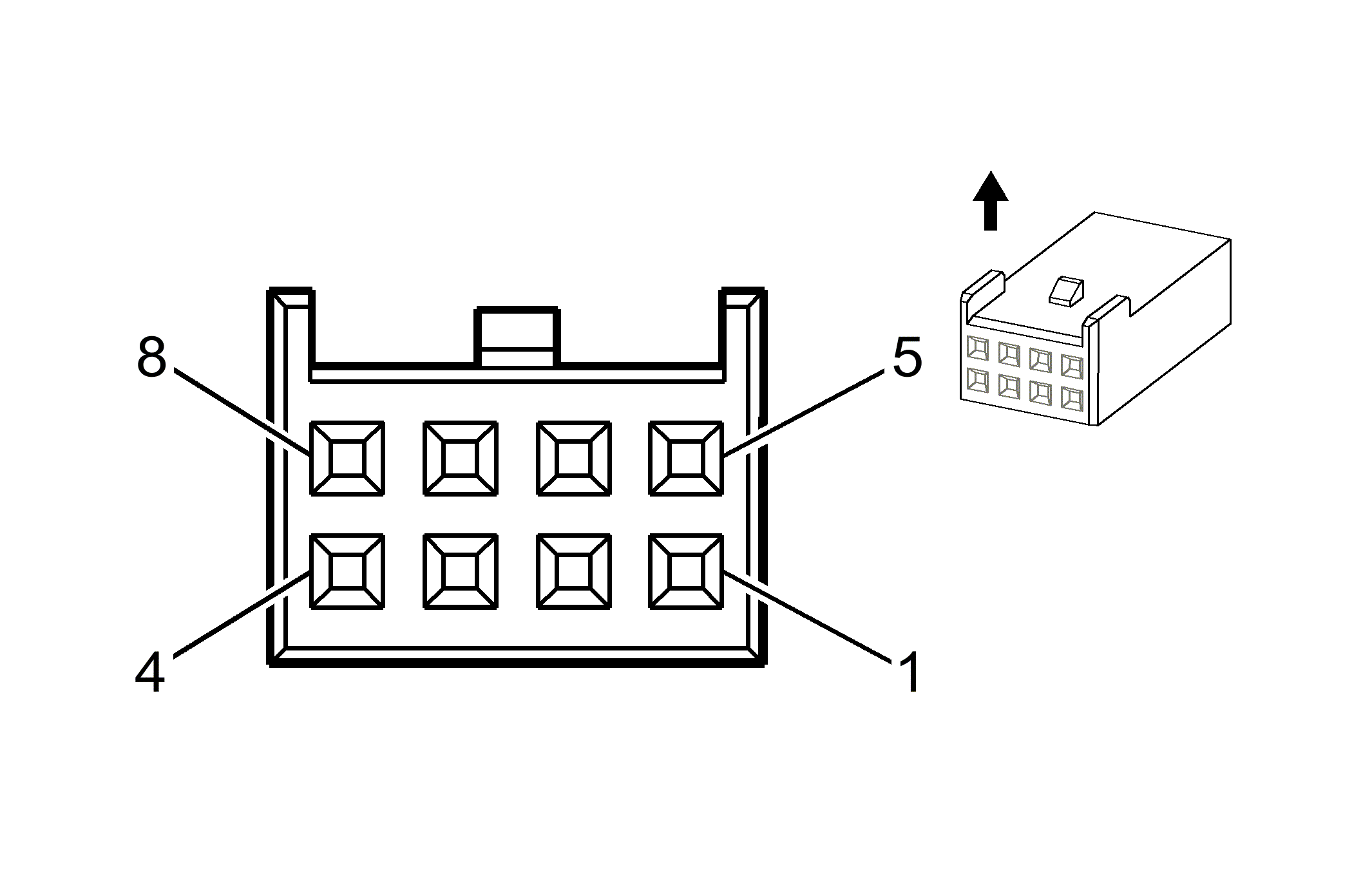

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Service by Harness - See Part Catalog | Pending | Not Available | Service by Harness - See Part Catalog | Service by Harness - See Part Catalog | Not Available | Not Available |
K32 Steering Wheel Heating Control Module (UVD)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | BK | 1850 | Ground | I | - |
| 2 | - | - | - | Not Occupied | - | - |
| 3 | 0.35 | BK/WH | 5884 | Heated Steering Wheel Switch LED Control | I | - |
| 4 | 0.5 | VT/BN | 241 | Run Ignition 3 Voltage | I | - |
| 5 | 0.35 | YE/RD | 5885 | Heated Steering Wheel Voltage Reference | I | - |
| 6 | 0.35 | WH/RD | 5888 | Heated Steering Wheel Voltage Reference | I | - |
| 7 | 0.35 | YE/GY | 5883 | Heated Steering Wheel Switch Signal | I | - |
| 8 | - | - | - | Not Occupied | - | - |
