Door Lock/Indicator Wiring Schematics

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

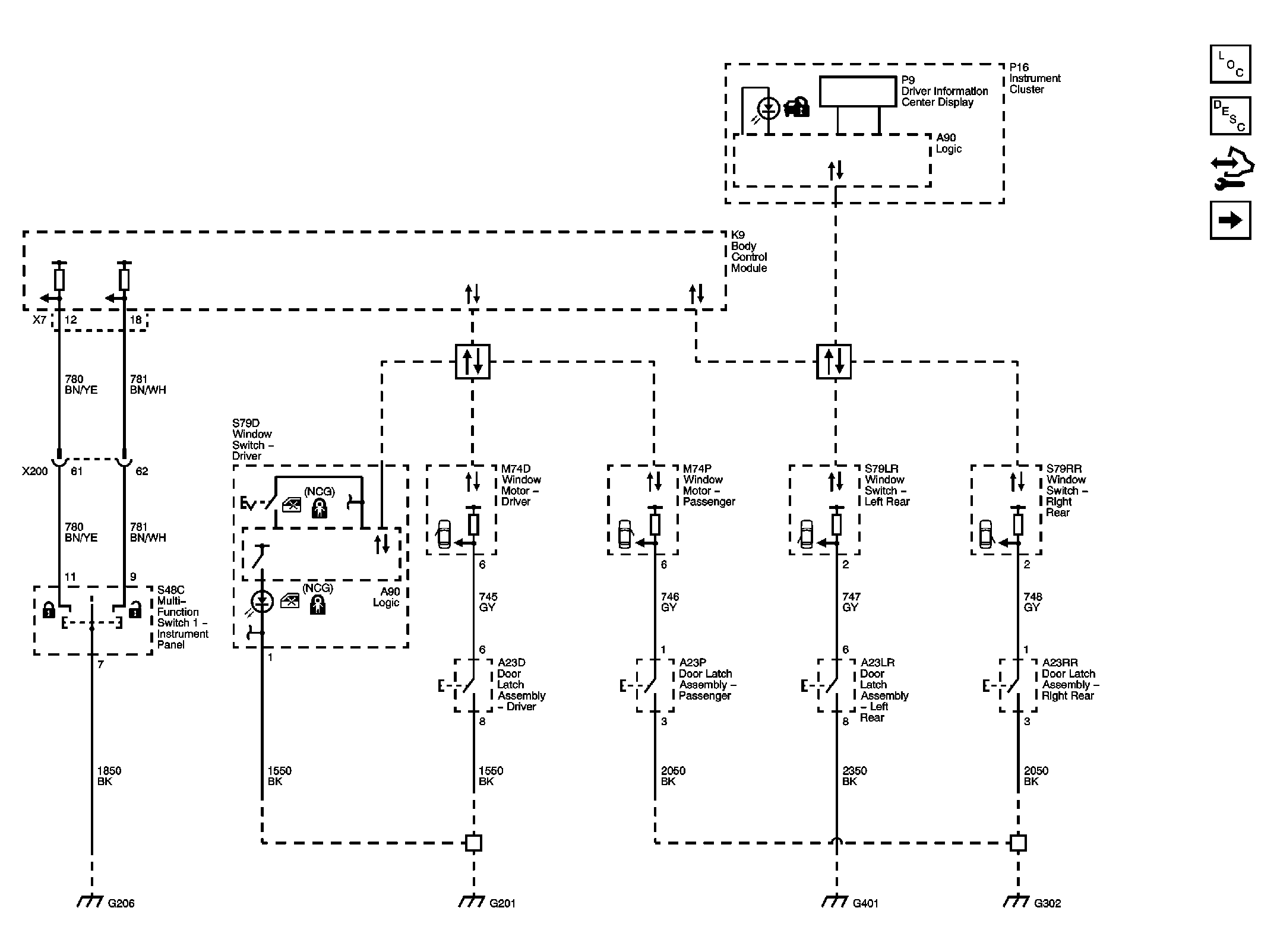

Fig 1: Door Lock Switch and Door Latch Switches Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

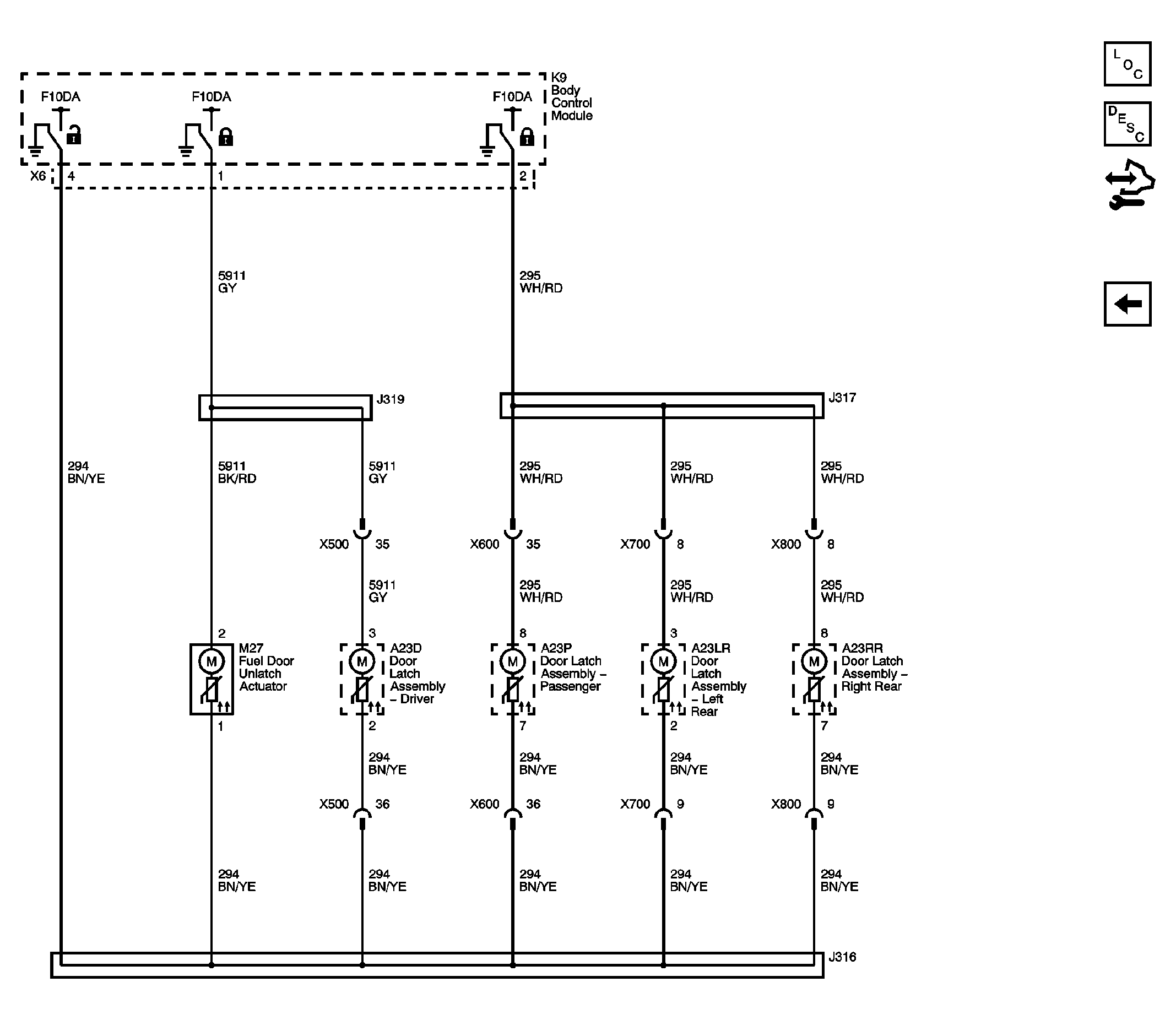

Fig 2: Door Lock Actuators Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
