Installation Procedure
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
- Transfers all parts as necessary.
- Insert the sunroof housing assembly to the gauge pin location in the opening.
Tighten the three fasteners.

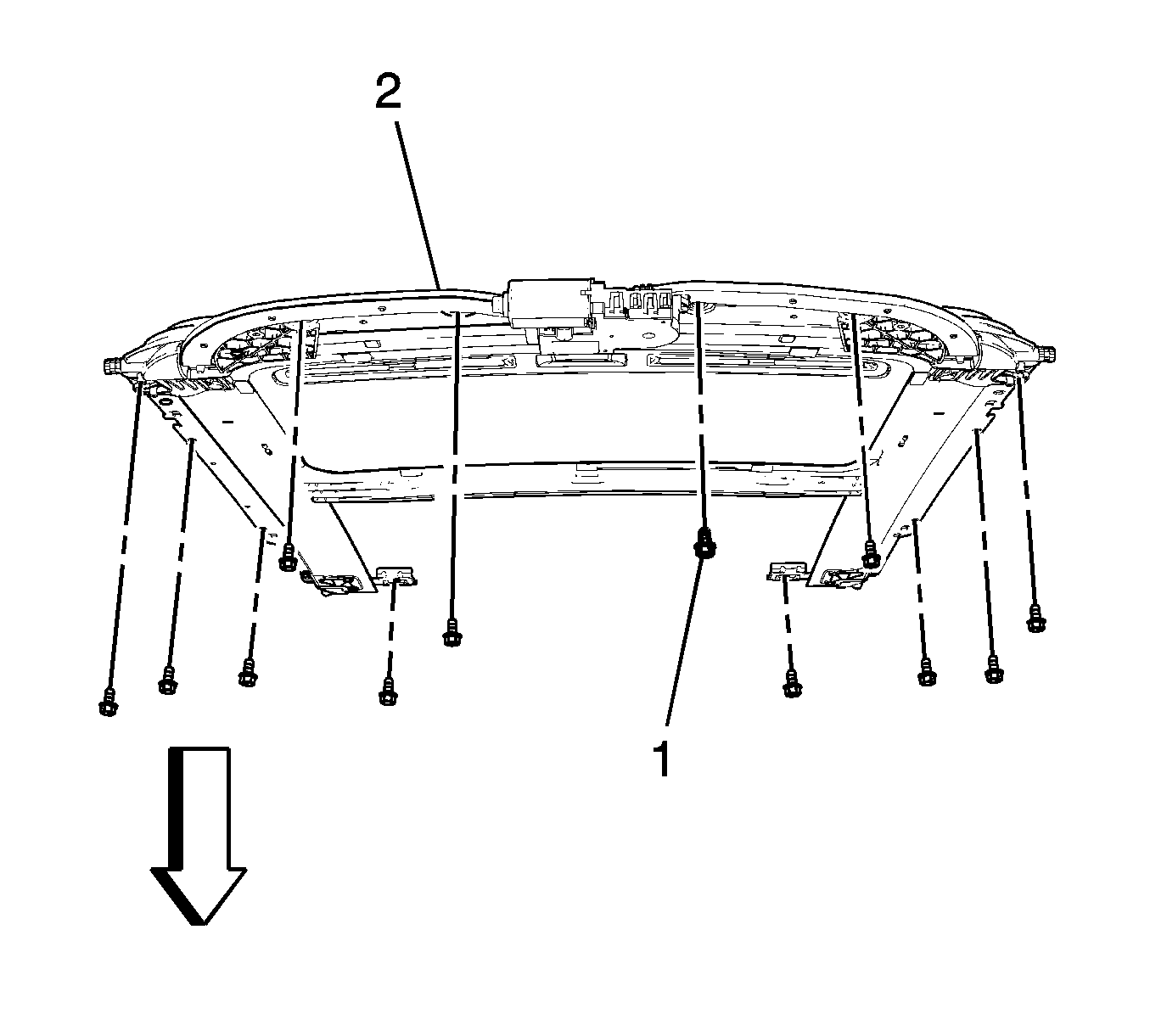

- Install the sunroof housing (2) assembly with the remaining fasteners and tighten to 9 (80 lb in).
- Connect the sunroof window motor electrical connector.
- Install the both rear water drain hoses to the sunroof frame spigot and tie straps, if required.
Connect the 2 hoses and apply tie straps if required.
- Install the both front water drain hoses to the sunroof frame spigot and tie straps, if required.
- Install the sunroof windows front and rear. Sunroof Window Replacement - Front , and Sunroof Window Replacement - Rear .
- Verify the operation of the sunroof.
- Water test the vehicle before installing the headliner.
- Install the headlining. Refer to Headlining Trim Panel Replacement (With Sunroof) , Headlining Trim Panel Replacement (Without Sunroof) .
CAUTION:
Refer to Fastener Caution .
