Removal Procedure

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headlamp. Refer to Headlamp Replacement (Halogen) .

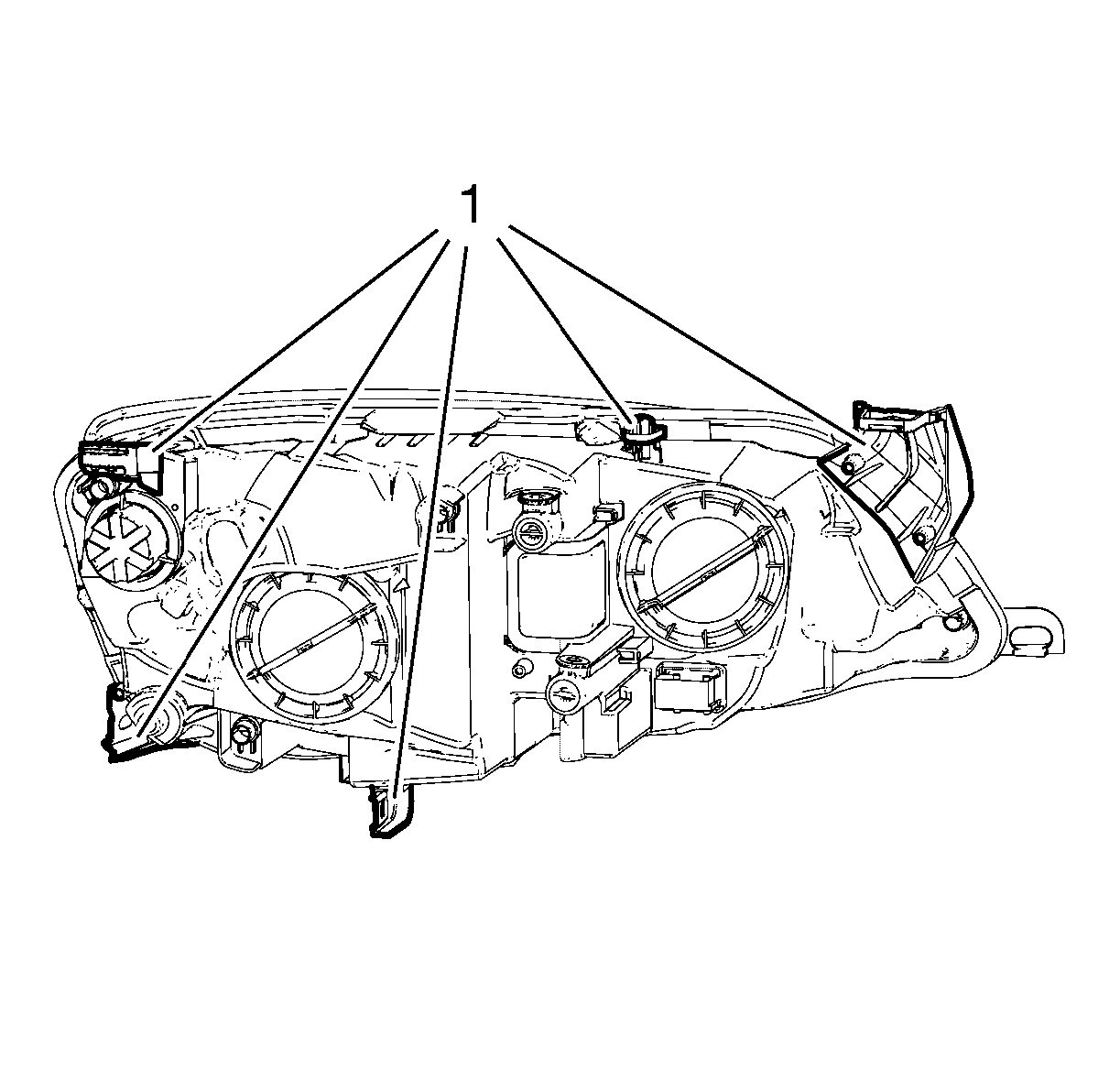

Fig 1: 5 Replacement Brackets

Courtesy of GENERAL MOTORS COMPANY

There are 5 replacement brackets (1) on each headlamp.

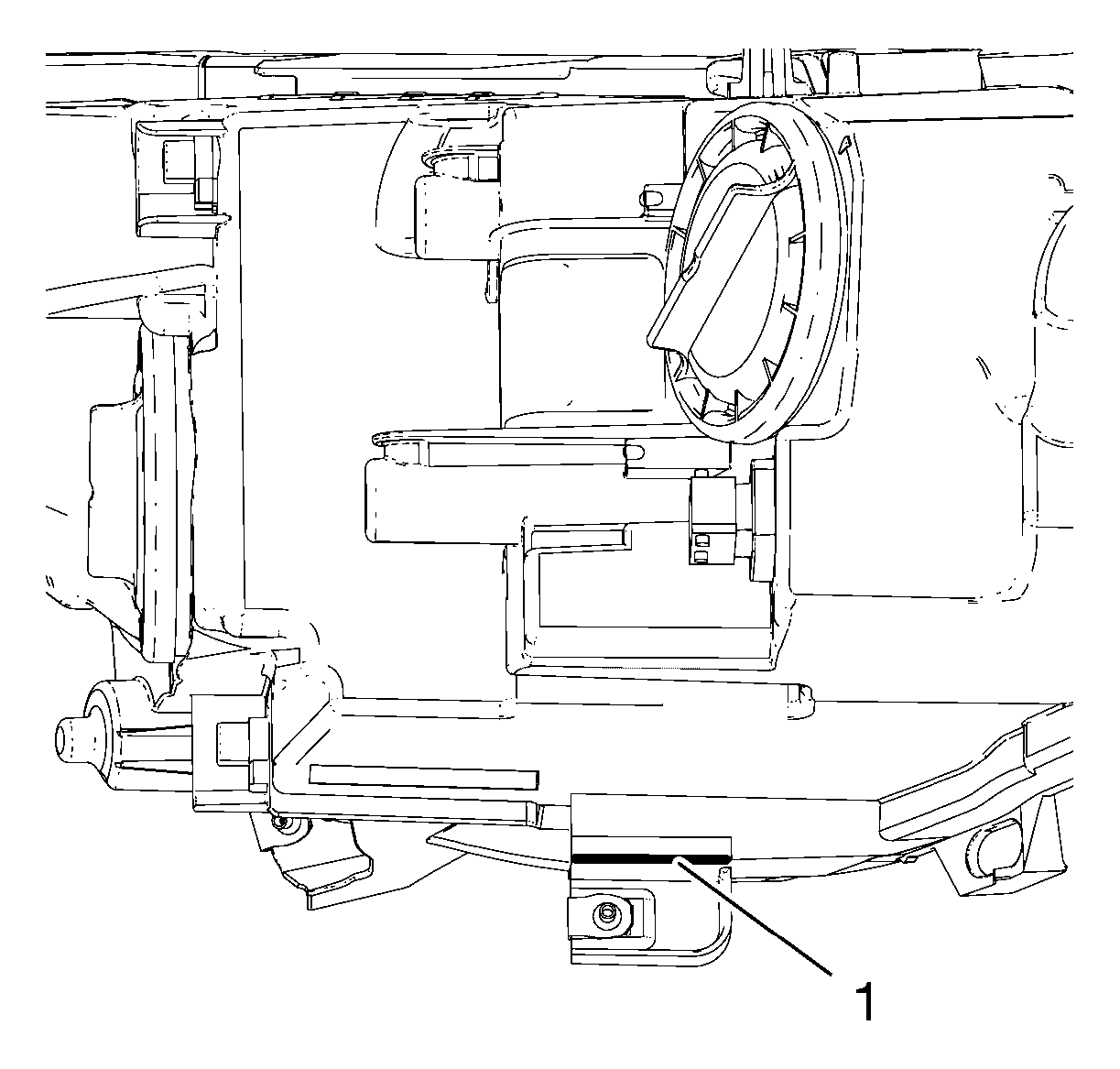

Fig 2: Marked Line On Housing

Courtesy of GENERAL MOTORS COMPANY

Bracket 1: Cut the bracket along the marked line (1) on the housing.

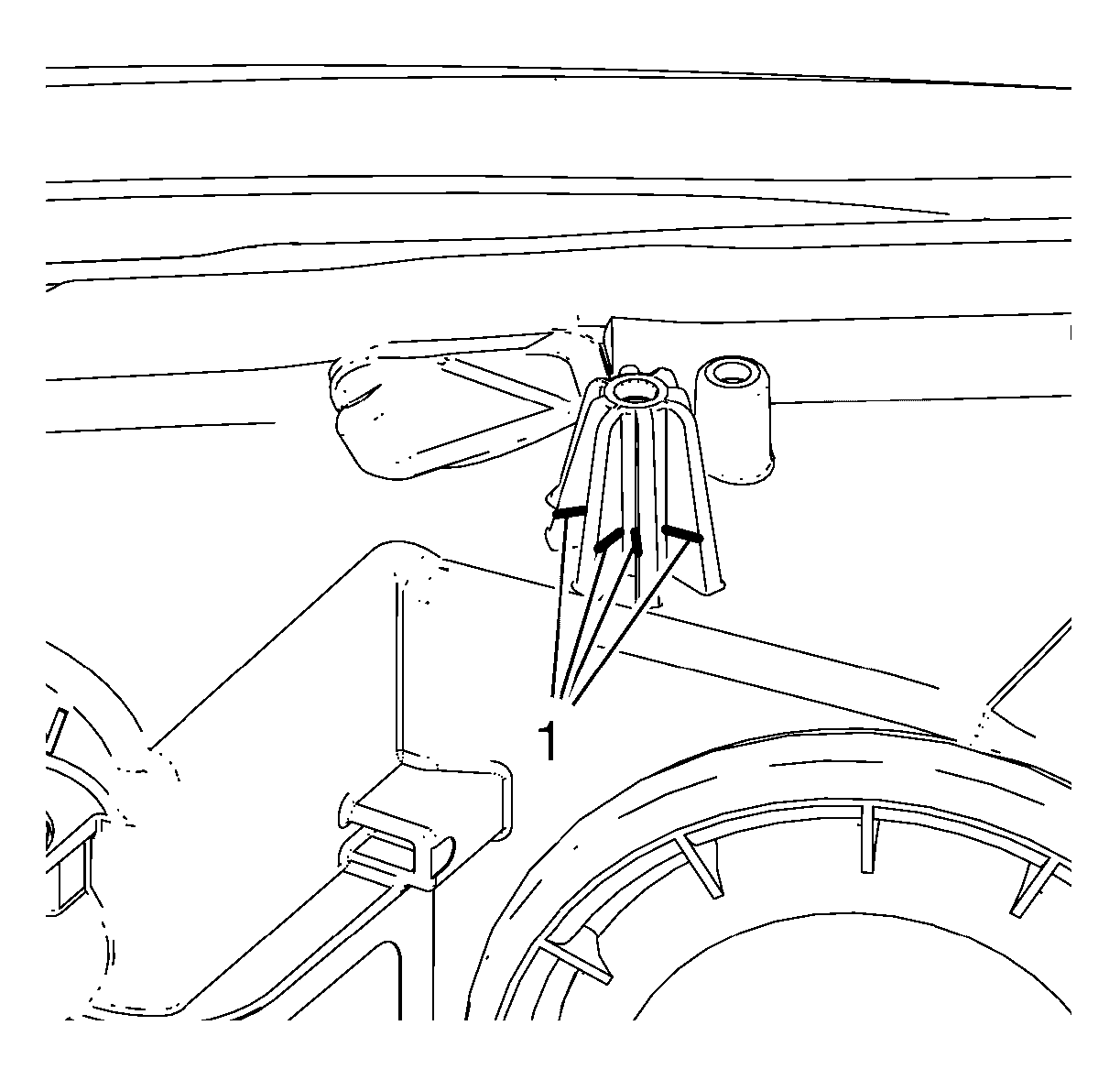

Fig 3: Marked Gluing Channel

Courtesy of GENERAL MOTORS COMPANY

Bracket 2: Cut the bracket along the marked gluing channel (1).

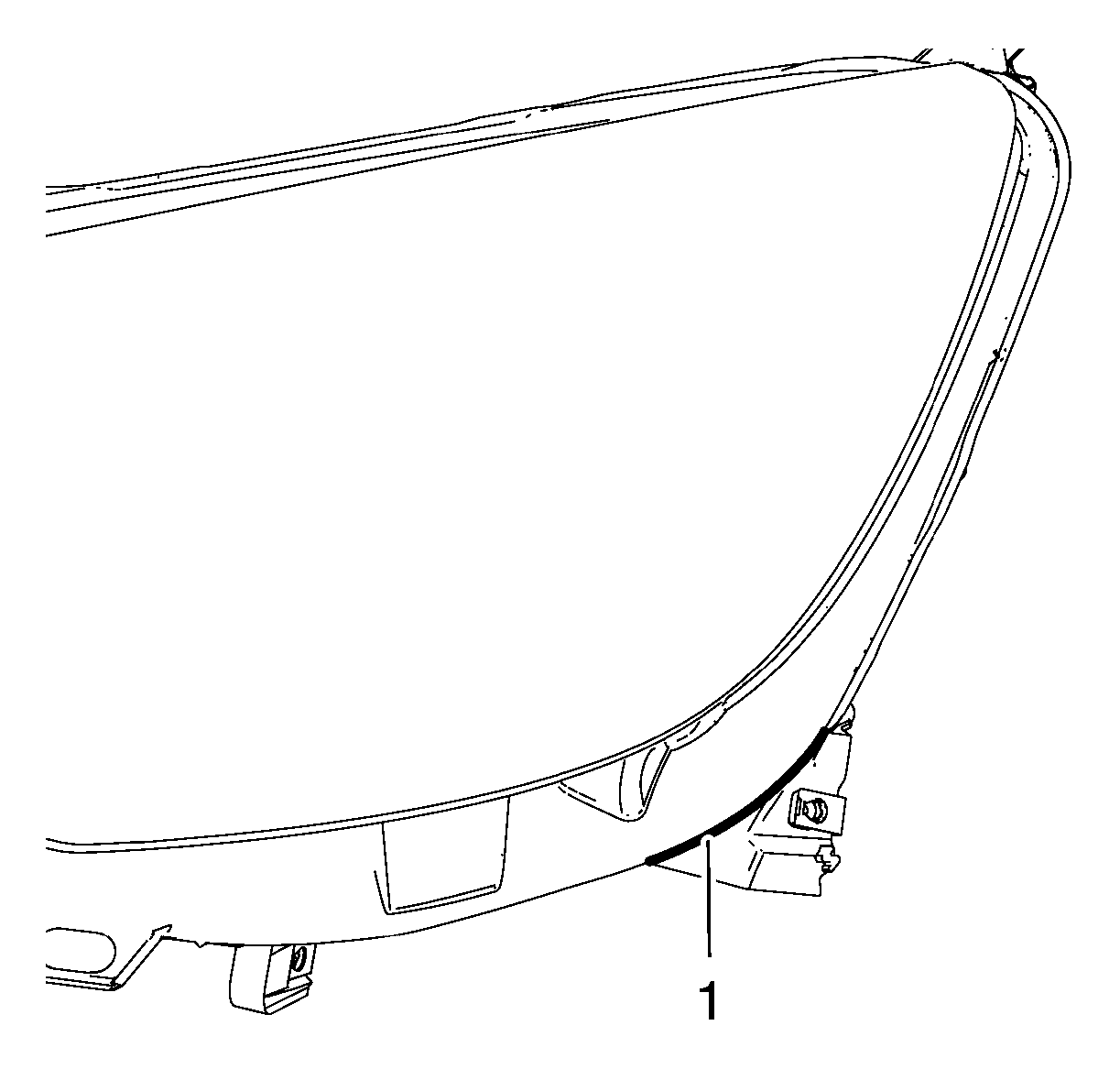

Fig 4: Marked Line On Housing

Courtesy of GENERAL MOTORS COMPANY

Bracket 3: Cut the bracket along the marked line (1) on the housing.

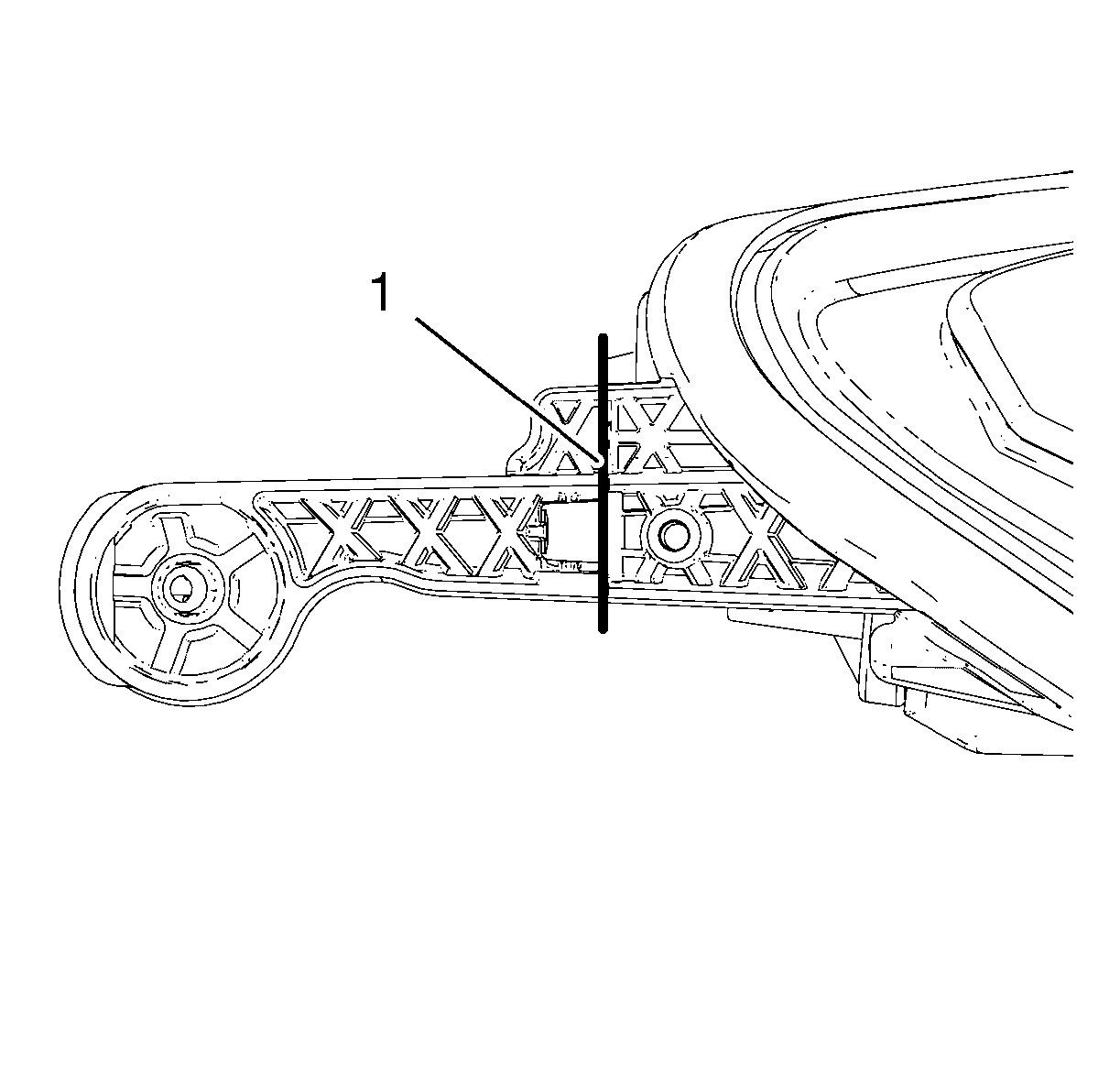

Fig 5: Marked Line

Courtesy of GENERAL MOTORS COMPANY

Bracket 4: Cut the bracket along the marked line (1).

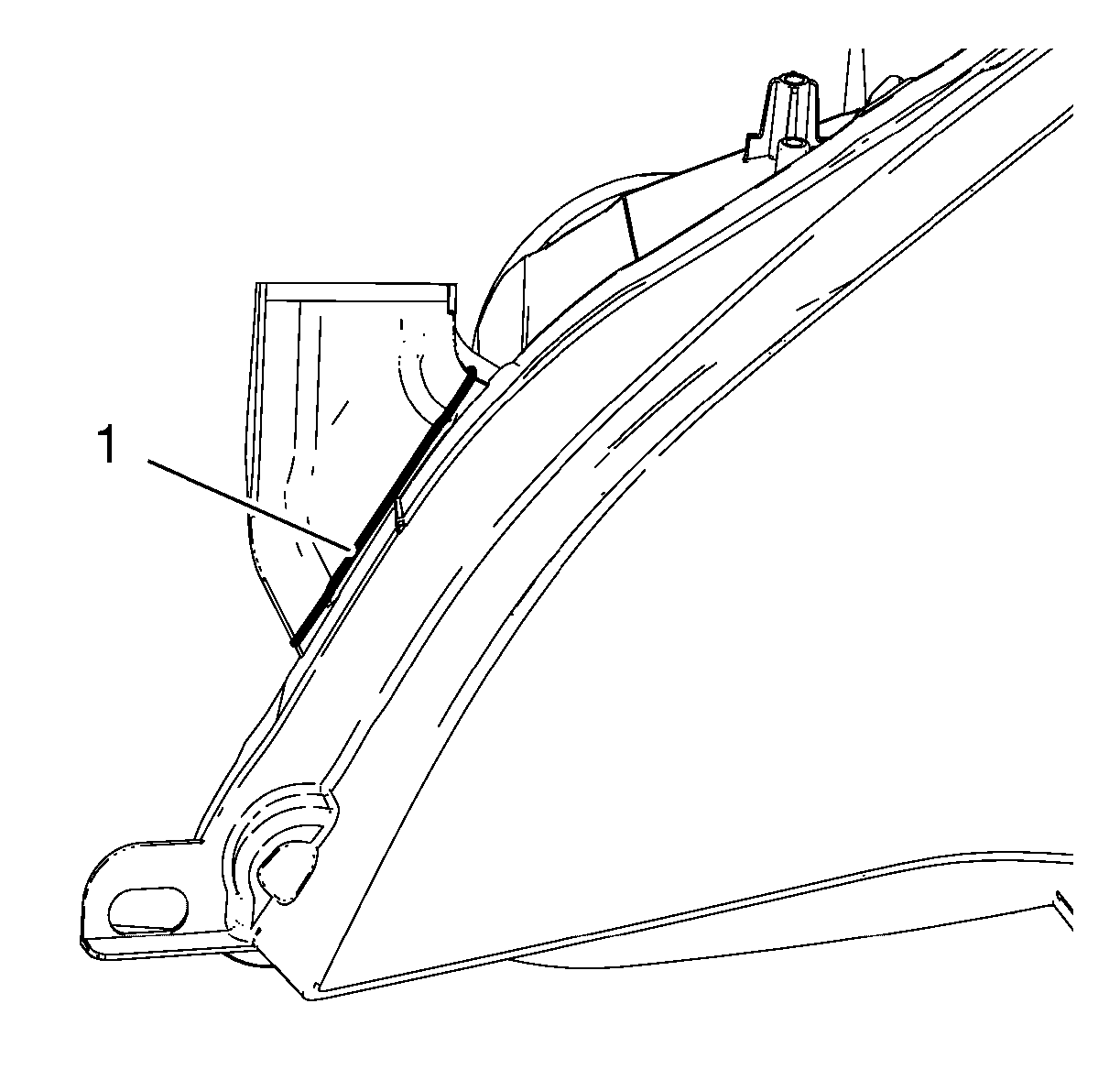

Fig 6: Marked Geometry On Housing

Courtesy of GENERAL MOTORS COMPANY

Bracket 5: Cut the bracket along the marked geometry (1) on the housing.
