Electronic Suspension Control Module Replacement

WARNING: This page is about a different car, the 2012 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

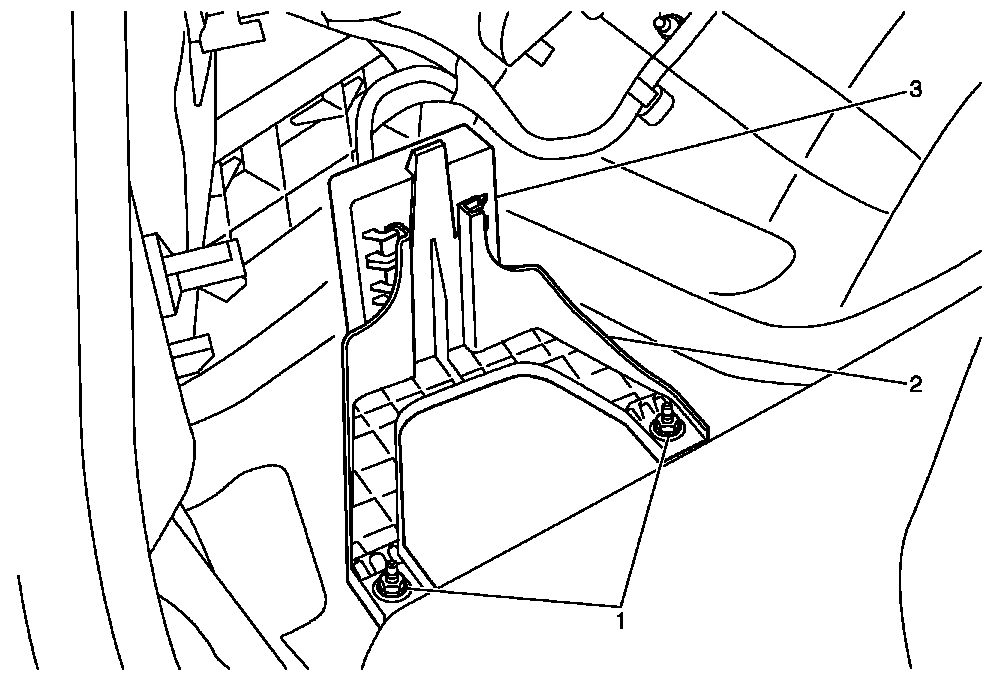

Fig 1: Electronic Suspension Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left side luggage compartment trim. Refer to Rear Compartment Side Trim Panel Replacement (without HP6) , Rear Compartment Side Trim Panel Replacement (HP6, Left Side) , Rear Compartment Side Trim Panel Replacement (HP6, Right Side) .
1	Electronic Suspension Front Position Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m(80 lb in)
2	Electronic Suspension Control Module Console Procedure Remove the bracket from the control module. Slide the control module down from the bracket.
3	Electronic Suspension Control Module Procedure Disconnect the connectors. For programming and setup information, refer to Control Module References .
