Radio and Telephone Control Switch Replacement

WARNING: This page is about a different car, the 2012 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

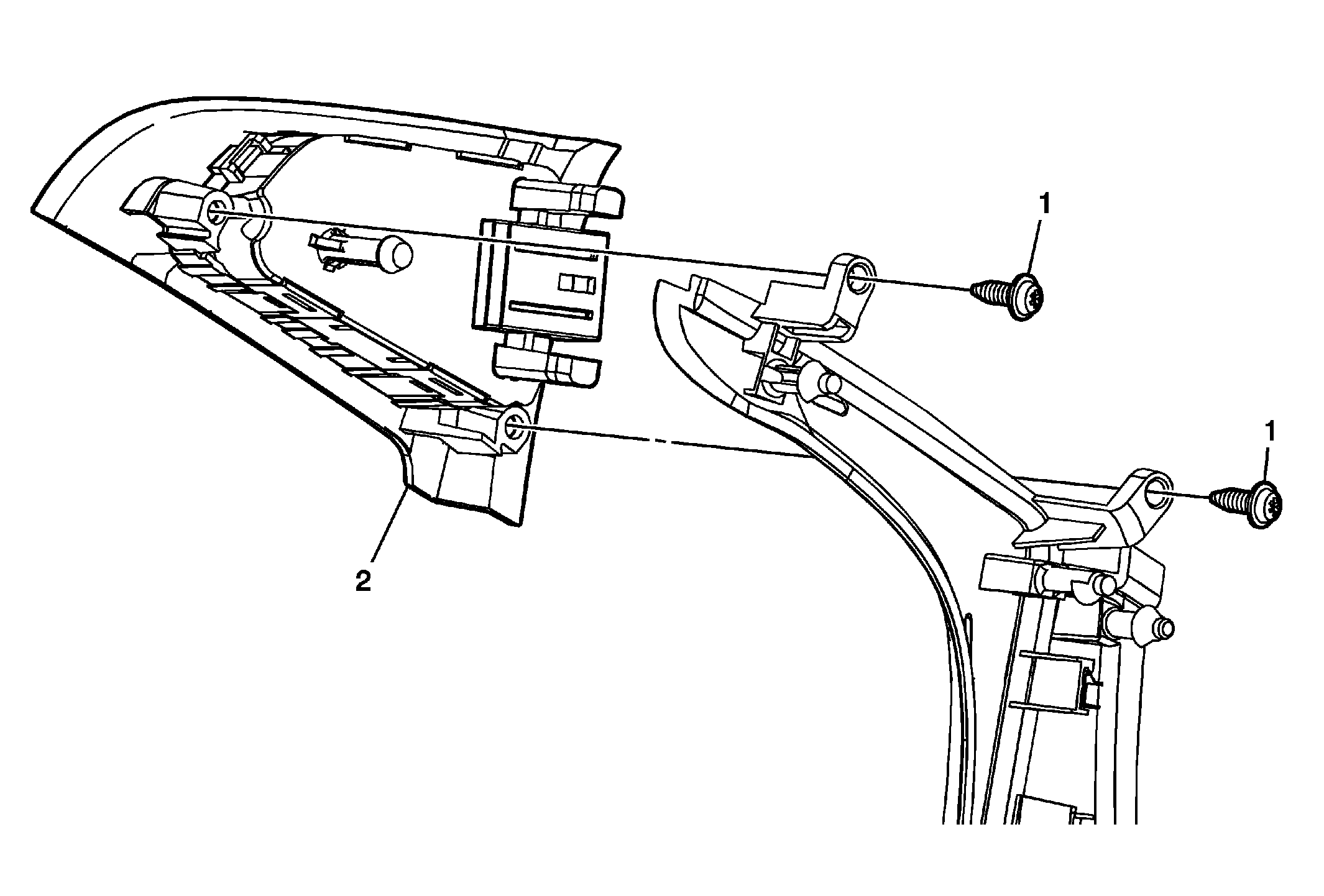

Fig 1: Radio & Telephone Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering wheel lower cover. Refer to Steering Wheel Spoke Lower Cover Replacement .
1	Steering Wheel Lower Cover Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Radio and Telephone Control Switch Procedure Release all the retainers and disconnect the electrical connector. Remove the radio and telephone control switch.

Callout

Component Name

Preliminary Procedure
Remove the steering wheel lower cover. Refer to Steering Wheel Spoke Lower Cover Replacement .

Steering Wheel Lower Cover Fasteners (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Radio and Telephone Control Switch

Procedure

Release all the retainers and disconnect the electrical connector.
Remove the radio and telephone control switch.
