Radio Front Side Door Speaker Replacement

WARNING: This page is about a different car, the 2012 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

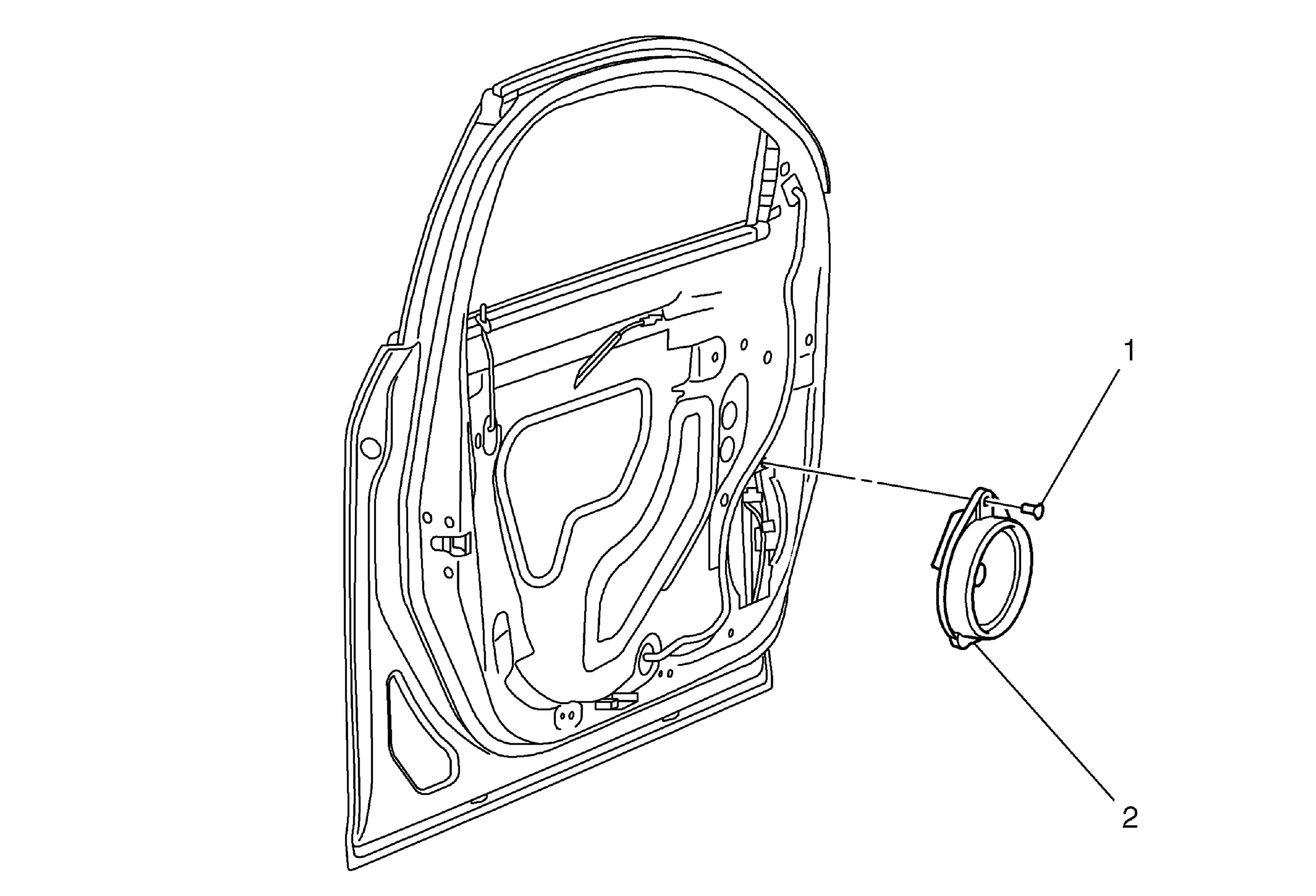

Fig 1: Radio Front Side Door Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Radio Front Side Door Speaker Fastener CAUTION: Refer to Fastener Caution .
2	Radio Front Side Door Speaker Procedure Disconnect the electrical connection. Release the radio front side door speaker retainer.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .

Radio Front Side Door Speaker Fastener

CAUTION:

Refer to Fastener Caution .

Radio Front Side Door Speaker

Procedure

Disconnect the electrical connection.
Release the radio front side door speaker retainer.
