P19G Speaker - Left Front Connector End View

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

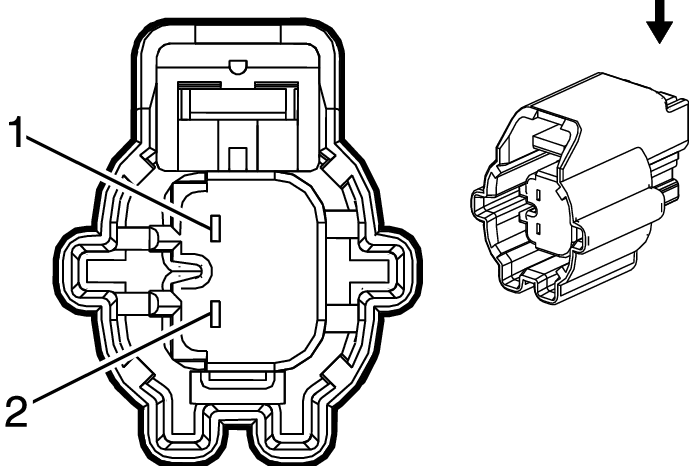

Fig 1: P19G Speaker - Left Front Connector End View

Courtesy of GENERAL MOTORS CORP.

P19G Speaker - Left Front

Pin	Color	Circuit	Function
1	1 BN/D-BU	118	Left Front Speaker Signal (-) (1)
2	1 D-BU	201	Left Front Speaker (+) (1)

Connector Part Information

Harness Type: Driver Door
OEM Connector: 19179954
Service Connector: Service by Harness - See Part Catalog
Description: 2-Way F GT 150 Series (BK)

Terminal Part Information

Terminated Lead: Pending
Release Tool: 15315247
Diagnostic Test Probe: J-35616-2A (GY)
Terminal/Tray: 12191812/19
Core/Insulation Crimp: C/A
