M77D Outside Rearview Mirror Motor - Driver Connector End View

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

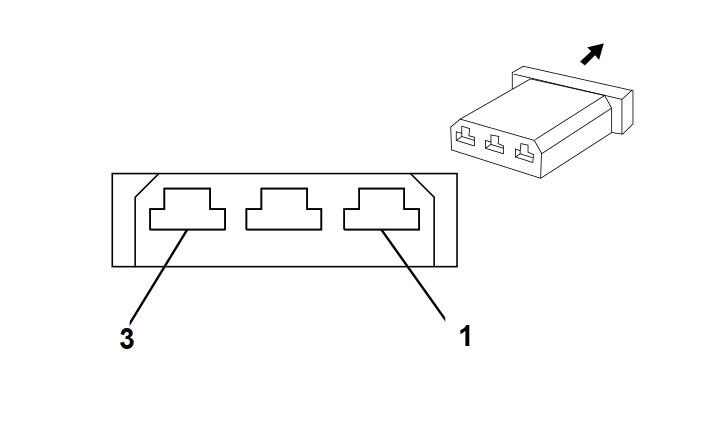

Fig 1: M77D Outside Rearview Mirror Motor - Driver Connector End View
GM2484228Courtesy of GENERAL MOTORS CORP.
M77D Outside Rearview Mirror Motor - Driver

Pin Wire Circuit Function
1 VT/WH - Left Mirror Motor Right Control
2 WH/BN - Left Mirror Motor Supply Voltage
3 D-GN/VT - Outside Left Mirror Vertical Position Control
Connector Part Information
  • Harness Type: Outside Rearview Mirror Motor - Driver
  • OEM Connector: 925-015
  • Service Connector: Service by Component Assembly
  • Description: 3-way F (NA)
Terminal Part Information
  • Terminated Lead: Service by Component Assembly
  • Release Tool: Not Available
  • Diagnostic Test Probe: Pending
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
