Knock Sensor Replacement - Right Side

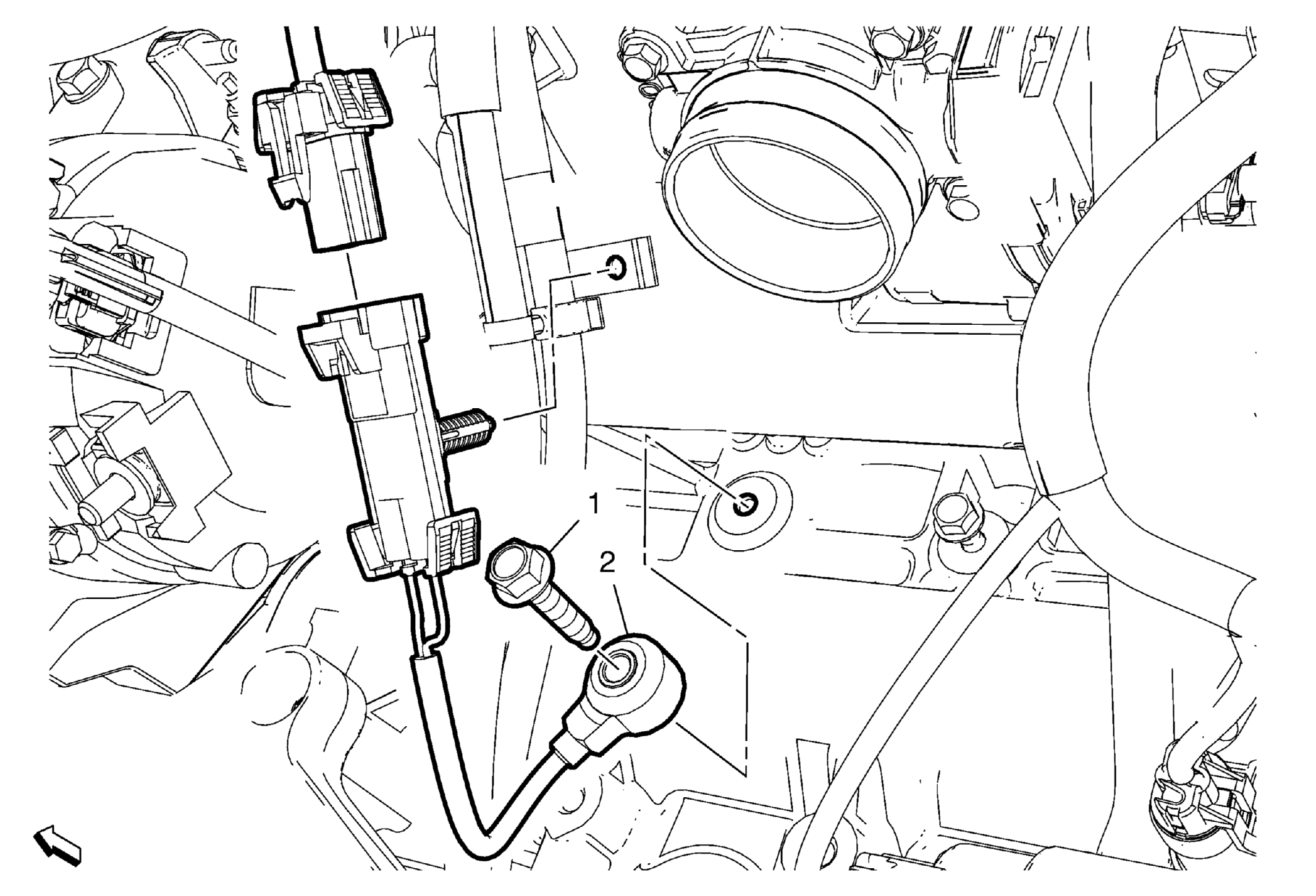

Fig 1: Knock Sensor - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Knock Sensor Fastener CAUTION: Refer to Fastener Caution . Procedure Clip out the electrical connector. Disconnect the electrical connector. Tighten 25 N.m (18 lb ft)
2	Knock Sensor

Callout

Component Name

Preliminary Procedure
Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

Knock Sensor Fastener

CAUTION:

Procedure

Tighten
25 N.m (18 lb ft)

Knock Sensor
