Removal Procedure

    Fig 1: Air Cleaner Assembly Attachments
    GM2699458Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the mass airflow sensor wiring harness plug (2).
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  3. Unclip the drain hose (3), if equipped.

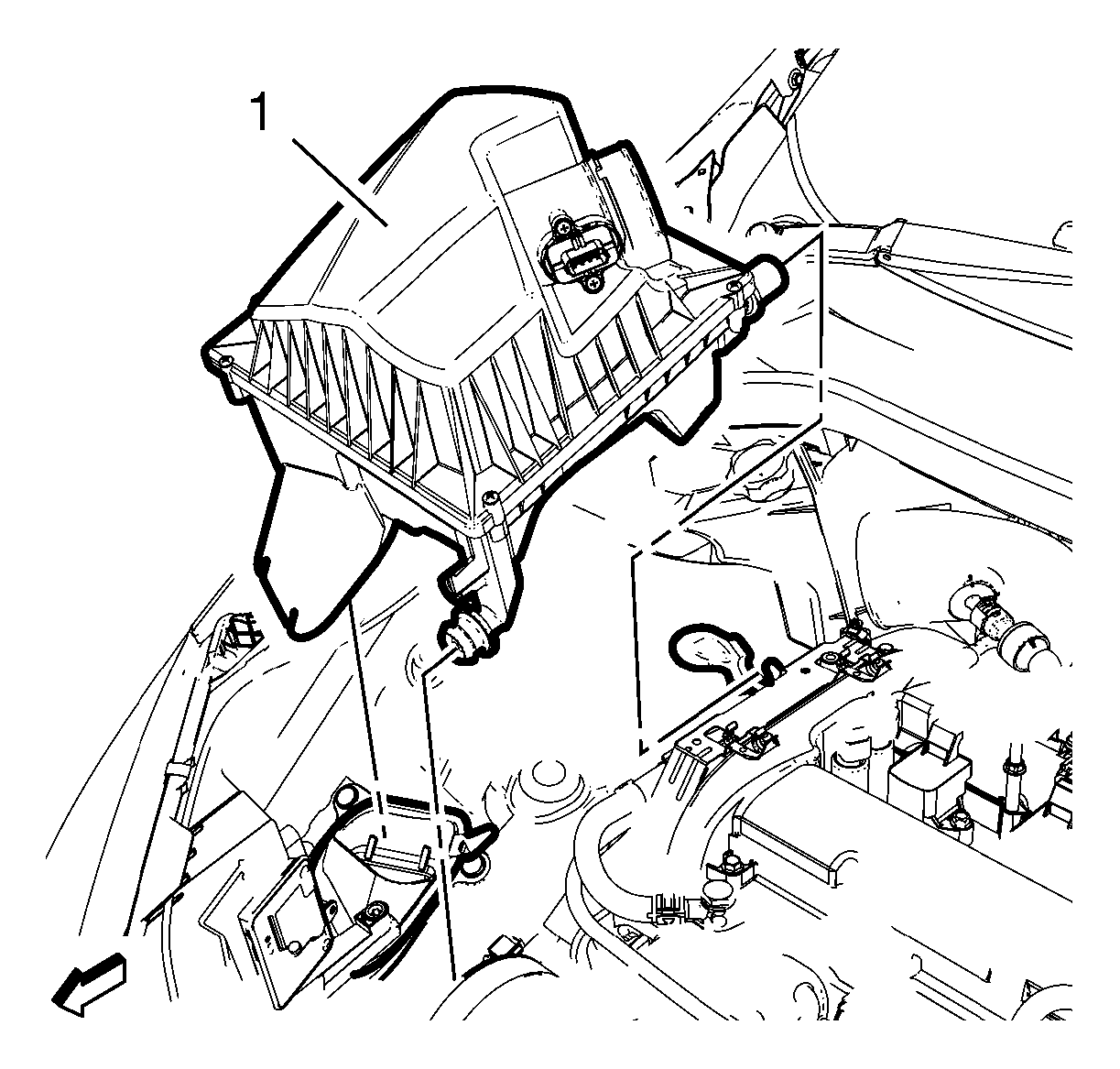

    4. Fig 2: Air Cleaner Assembly
    GM2699459Courtesy of GENERAL MOTORS COMPANY
  4. Remove the air cleaner assembly (1).
