Steering Gear Heat Shield Replacement
Steering Gear Heat Shield Replacement

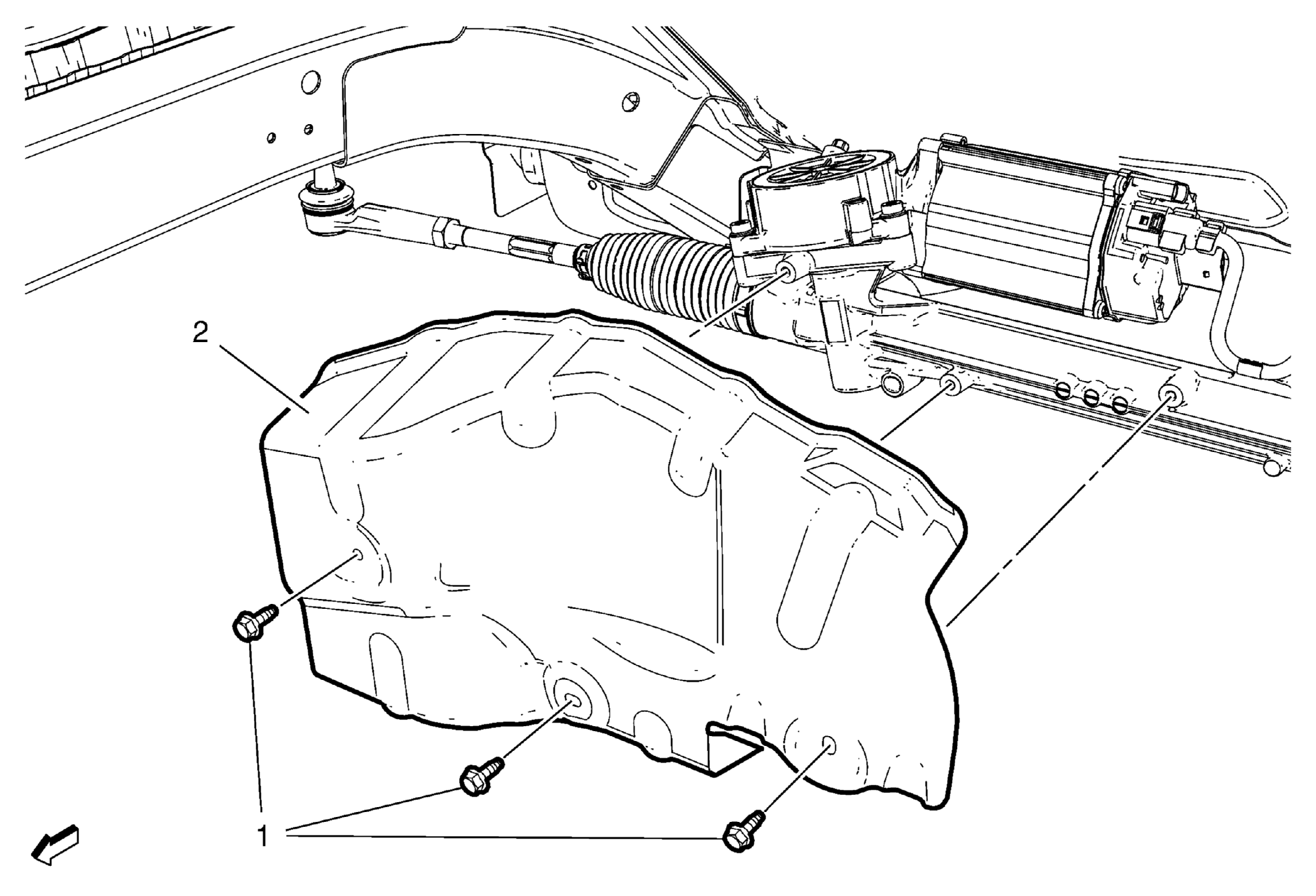

| Callout | Component Name |
|---|---|
| 1 | Steering Gear Heat Shield Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Steering Gear Heat Shield |
